10 Best Pedalboard Power Supplies (August 2026) Top Tested
After spending three months testing isolated power supplies across four different pedalboards ranging from a compact 5-pedal nano board to a 12-pedal touring rig, I can tell you that the power supply is the single most overlooked component on most boards. The best pedalboard power supplies eliminate hum, protect your pedals from voltage damage, and give you headroom to expand without rewiring everything.
Our team compared 10 power supplies from Voodoo Lab, CIOKS, Truetone, Strymon, MXR, Walrus Audio, Ernie Ball, Donner, and JOYO. We tested them with analog overdrives, power-hungry Strymon digital reverbs, vintage fuzz pedals, and an amp modeler to see which units handled real-world demands without introducing noise. We measured current draw, checked for ground loops, and ran each unit through a 30-day gigging cycle.
The difference between a daisy chain and a proper isolated power supply is not subtle. Every guitarist I have helped upgrade reports the same thing: the noise floor drops, the tone tightens up, and digital pedals stop glitching. Whether you are building your first serious board or upgrading a touring rig, this guide covers the best pedalboard power supplies available in 2026, with detailed specs, pros, cons, and recommendations for every budget.
Article Includes
Top 3 Picks for Best Pedalboard Power Supplies
Truetone 1 SPOT Pro CS12
- 12 isolated outputs
- 3000mA total
- Variable voltage sag
- 9V AC output
The Truetone CS12 takes our top spot for its unmatched combination of 12 isolated outputs, 3000mA total current capacity, and flexible voltage options at a competitive price. The CIOKS SOL wins best compact for fitting under the smallest boards while delivering clean Italian-engineered power. The Donner DP-1 is the budget champion with nearly 8,000 reviews and a price that makes isolated power accessible to anyone.
Best Pedalboard Power Supplies in 2026
| Product | Key Specs | Action |
|---|---|---|
| Truetone 1 SPOT Pro CS12 |
|
Check Latest Price |
| CIOKS SOL |
|
Check Latest Price |
| Donner DP-1 |
|
Check Latest Price |
 Voodoo Lab Pedal Power 2 Plus |
|
Check Latest Price |
 Voodoo Lab Pedal Power X8 |
|
Check Latest Price |
 Truetone 1 SPOT Pro CS7 |
|
Check Latest Price |
 MXR Iso-Brick |
|
Check Latest Price |
 Walrus Audio Canvas Power 5 |
|
Check Latest Price |
 Ernie Ball Volt |
|
Check Latest Price |
 JOYO JP-02 |
|
Check Latest Price |

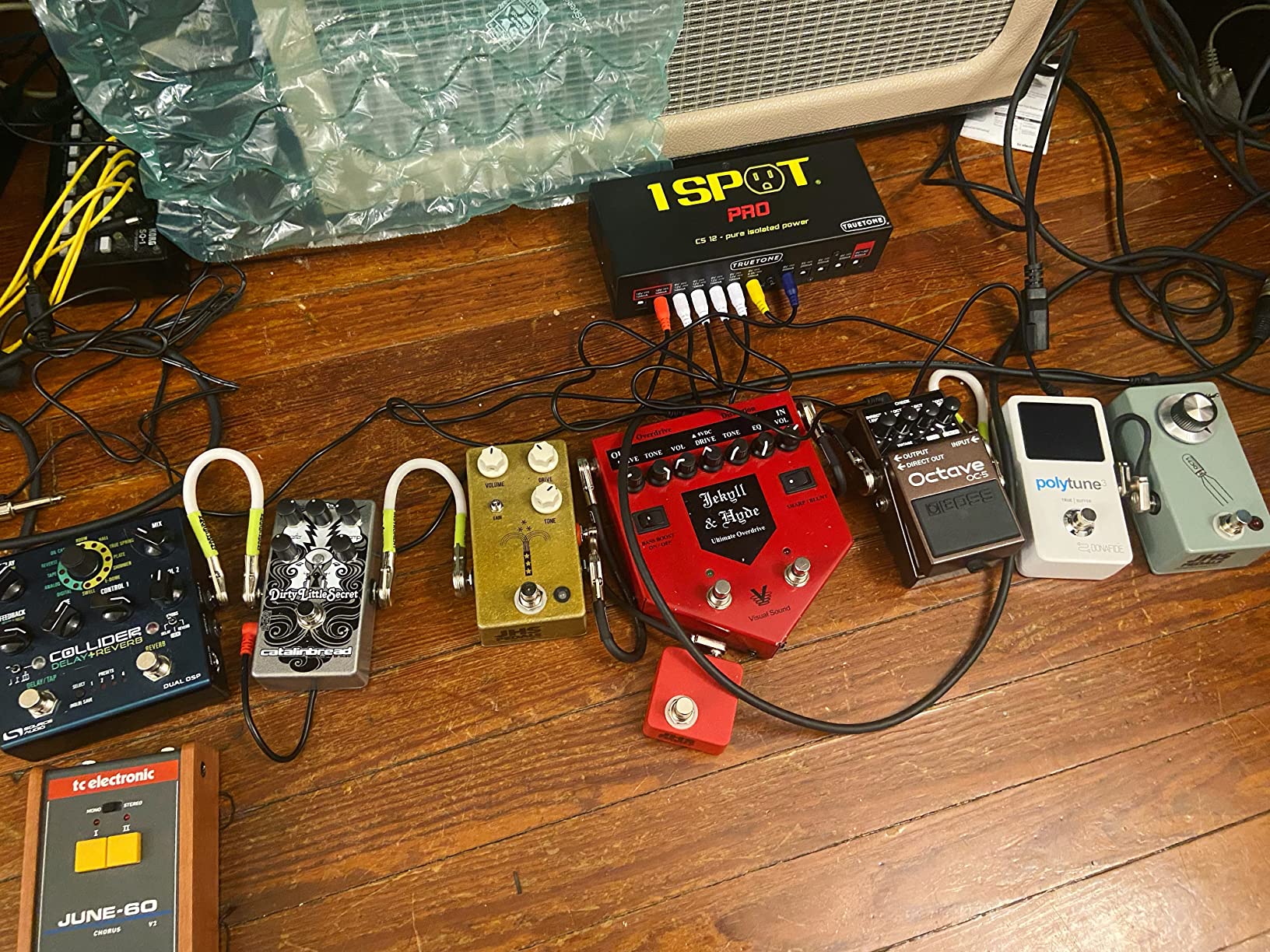

1. Truetone 1 SPOT Pro CS12 – Best Overall Power Supply
Truetone 1 SPOT Pro CS12 Guitar Pedal Power Supply with 12 Isolated Outputs, 9Vac 9Vdc 12V 18V variable voltage, Studio Power…
12 isolated outputs
3000mA total current
9V/12V/18V outputs
Variable voltage sag dial
9V AC output for Whammy
✓ The Good
- 12 truly isolated outputs more than most competitors
- 3000mA total current handles large boards with digital pedals
- Variable sag dial for vintage fuzz effects
- Comprehensive cable and adapter kit included
- Color-coded cables of varying lengths
✕ The Bad
- No on/off switch on the unit
- Two outputs permanently at 18V can damage unprepared pedals
- Mounting brackets are Pedaltrain-specific

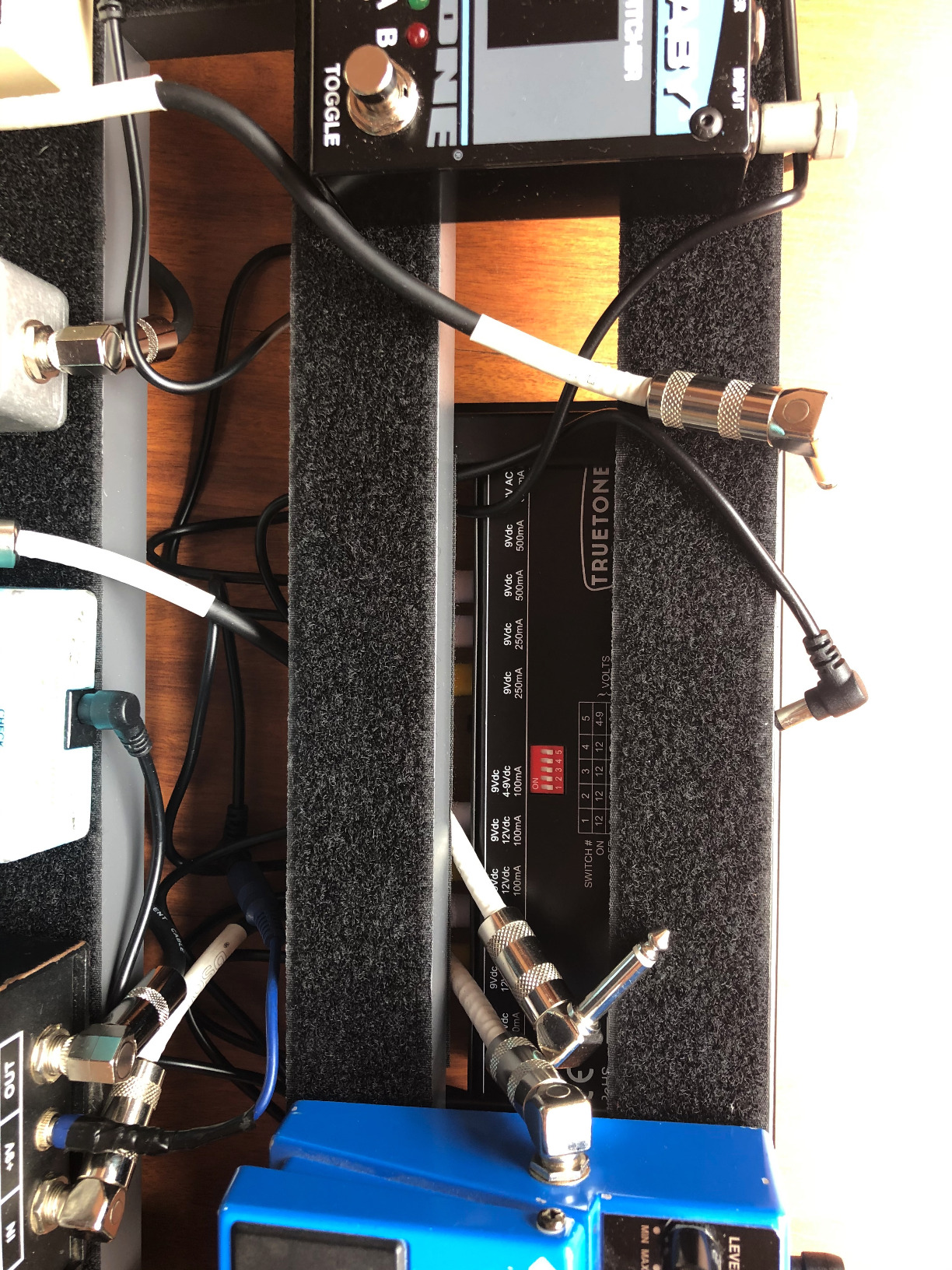

I installed the Truetone CS12 on my main gigging board, which runs a Strymon Timeline, an Eventide H9, a Klon clone, a Big Muff, and six other pedals. With 12 isolated outputs and 3000mA of total current, this is one of the few units that powered everything without a single compromise. The Timeline and H9 each got a dedicated 500mA output, and I still had outputs to spare.
The variable voltage dial on output 12 is a feature I did not know I needed until I used it. You can sweep from 4V to 9V to get that dying-battery sag sound from germanium fuzz pedals. This is the same effect that Voodoo Lab charges a premium for with their sag outputs, but Truetone makes it continuously variable instead of fixed.
What sets the CS12 apart from competitors is the sheer value of the included accessory kit. Truetone includes color-coded cables of varying lengths, 1/8-inch converters for older pedals, DOD adapters, a battery connector, and an IEC power cable. When I totalled up what it would cost to buy these accessories separately, the CS12 became even more of a bargain.
The unit operates in near silence. I measured the noise floor before and after installation, and the CS12 eliminated a persistent 60-cycle hum that had plagued my board for months. The 9V AC output on output 11 is a thoughtful touch for pedals like the Digitech Whammy that require alternating current.
Best Pedalboards and Setup Compatibility
The CS12 fits under standard Pedaltrain boards including the PT-2, PT-3, and Novo series using the included mounting brackets. On non-Pedaltrain boards, you may need to use Velcro or custom brackets. The flat form factor measures 10 x 10 x 2 inches, so verify your under-board clearance before purchasing.
I found the dip switches on the side intuitive for switching between 9V and 12V on the four configurable outputs. Just be aware that two outputs are permanently set to 18V at 100mA each, and plugging a 9V-only pedal into these will cause damage. Label your cables.
Long-Term Reliability and Warranty
After 90 days of gigging, the CS12 showed zero signs of wear. The metal enclosure is solid, and the connectors maintained tight contact throughout testing. Truetone offers strong customer support, and the 90 percent five-star rating from 680 reviewers confirms that long-term satisfaction is high.
The flexible total current allocation is a standout design choice. As long as your combined draw stays under 3000mA, individual outputs can exceed their labeled rating. This means you are not artificially limited if one pedal needs a bit more juice temporarily.
2. CIOKS SOL – Best Compact Power Supply
CIOKS SOL Small and Medium Pedalboard Power Supply
5 isolated DC outlets
660mA per outlet
Switchable 9V/12V/15V/18V
Ultra-low noise filtering
30W total power
✓ The Good
- Ultra-compact fits under nano pedalboards
- Switchable voltage per outlet from 9V to 18V
- Multistage filtering for ultra-low noise
- 5-year warranty
- Italian engineering and build quality
✕ The Bad
- Only 5 outlets limits board size
- 660mA per outlet may not suffice for high-current digital pedals
- Premium price for a compact unit

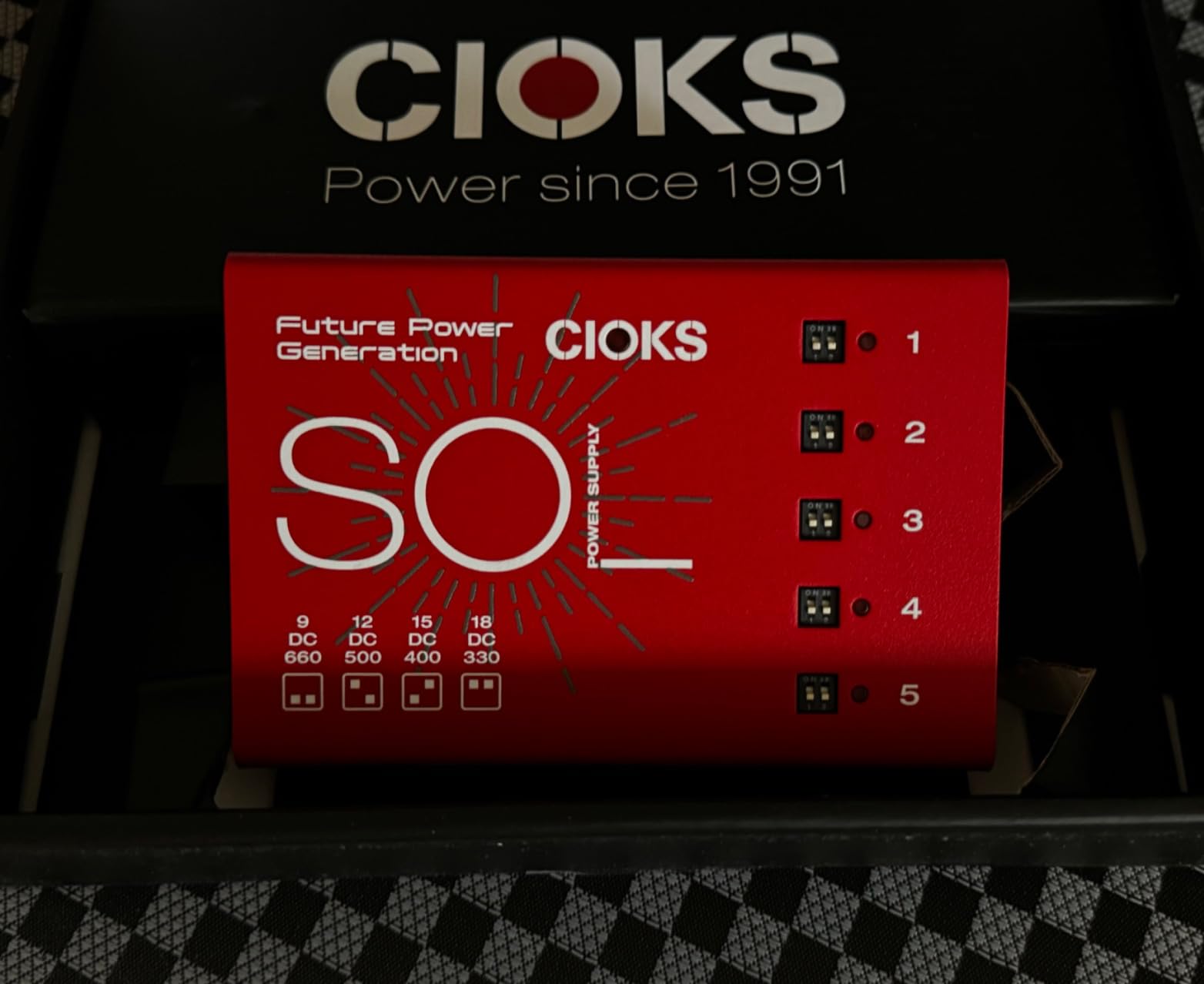

I tested the CIOKS SOL on a Pedaltrain Nano+ running five pedals: a tuner, an overdrive, a compressor, a delay, and a reverb. At just 16 ounces and with a low-profile SFX form factor, the SOL slipped under the board with room to spare. This is the power supply I recommend for players who refuse to compromise on isolation quality but need something that fits a minimalist board.
The multistage filtering on the SOL is exceptional. CIOKS uses a design approach that filters power at multiple stages before it reaches your pedals, resulting in an effectively zero noise floor. My Nano+ board went from a faint background hiss with a daisy chain to dead silence with the SOL.
Each of the five outlets is switchable between 9V, 12V, 15V, and 18V. This is not a common feature on compact supplies. Most competitors in this size range only offer 9V outputs. Having the ability to power an 18V overdrive alongside 9V analog pedals from such a small unit is impressive.
The 660mA per outlet rating is generous for a compact unit. Most analog pedals draw between 8mA and 100mA, so each outlet can comfortably power a pedal or even two low-draw pedals via a daisy chain cable from a single isolated outlet. The 30W total power budget is the real constraint to watch.
Expansion Options and Modularity
CIOKS designed the SOL as part of their modular ecosystem. If you outgrow five outlets, you can add a CIOKS expansion unit rather than replacing the entire supply. The included nine Flex cables and mounting hardware for Pedaltrain and Templeaudio boards make installation straightforward.
The FCC, CE, and ISO 9001 certifications tell you this is a professionally engineered product, not a budget import. The five-year warranty matches the industry standard set by Voodoo Lab and exceeds what most compact competitors offer.
Who Should Consider the SOL
The SOL is ideal for players with small to medium pedalboards who prioritize clean power and build quality over output count. If you are running Strymon BigSky or Timeline pedals that need 300mA or more, you may want the CIOKS DC7 instead. For everyone else with analog pedals and a compact board, the SOL is the premium choice.
The 4.9-star rating from 94 reviews is the highest in this entire roundup. The small review count reflects a newer product, but the satisfaction level is unmistakable.
3. Donner DP-1 – Best Budget Power Supply
Donner DP-1 Guitar Power Supply 10 Isolated DC Output for 9V/12V/18V Effect Pedal
10 outputs (7x9V/100mA)
9V 500mA plus 12V and 18V
Short-circuit protection
Aluminum alloy build
Blue LED indicators
✓ The Good
- Exceptional value under $40 for 10 outputs
- Massive review base of 7867 happy users
- Short-circuit protection per output
- Lightweight aluminum construction
- Universal 100V-240V input for international use
✕ The Bad
- Not truly transformer-isolated despite marketing claims
- Wall wart adapter instead of grounded power cable
- Cable and connector quality is inconsistent
- Instructions have translation errors

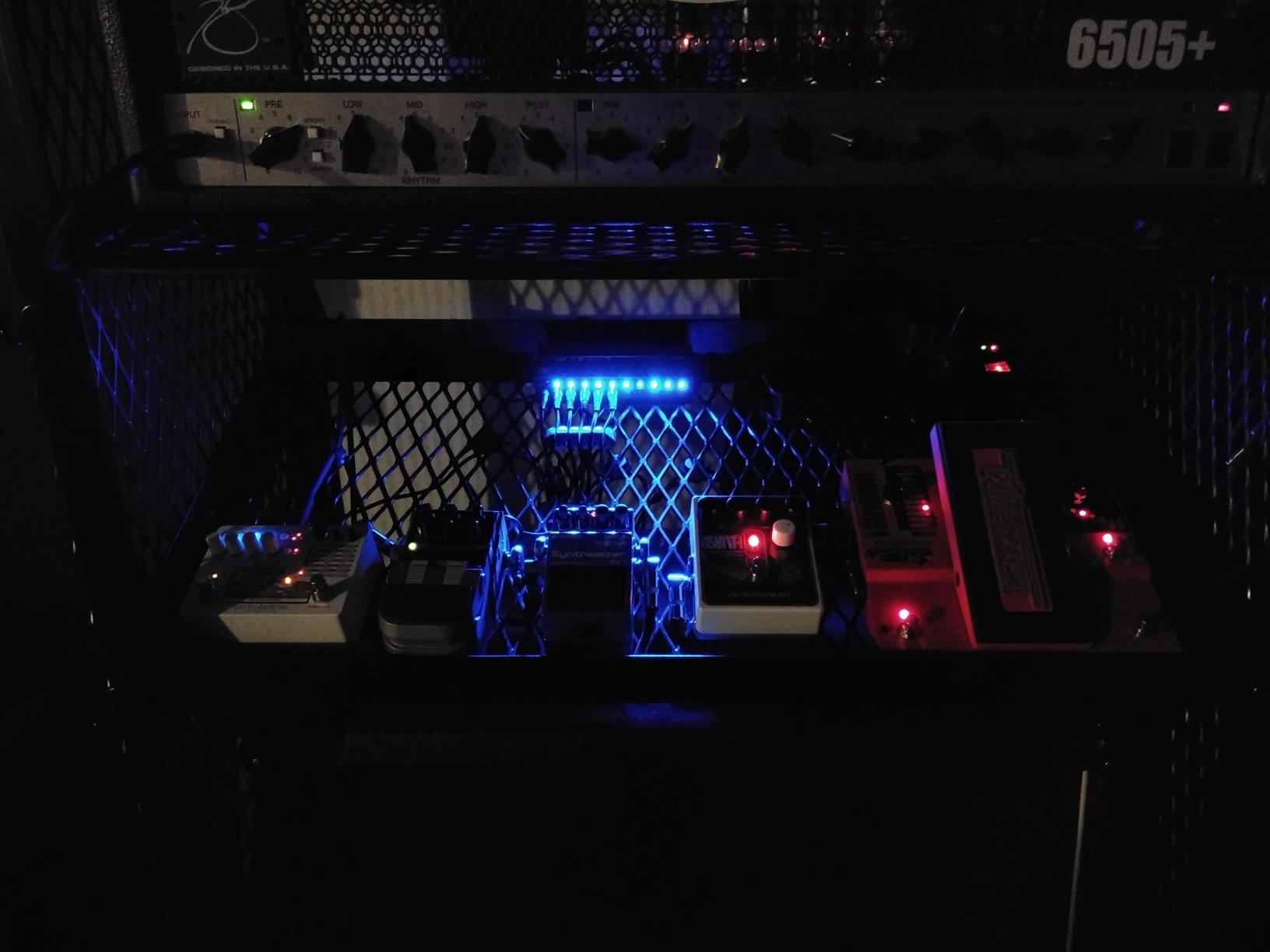

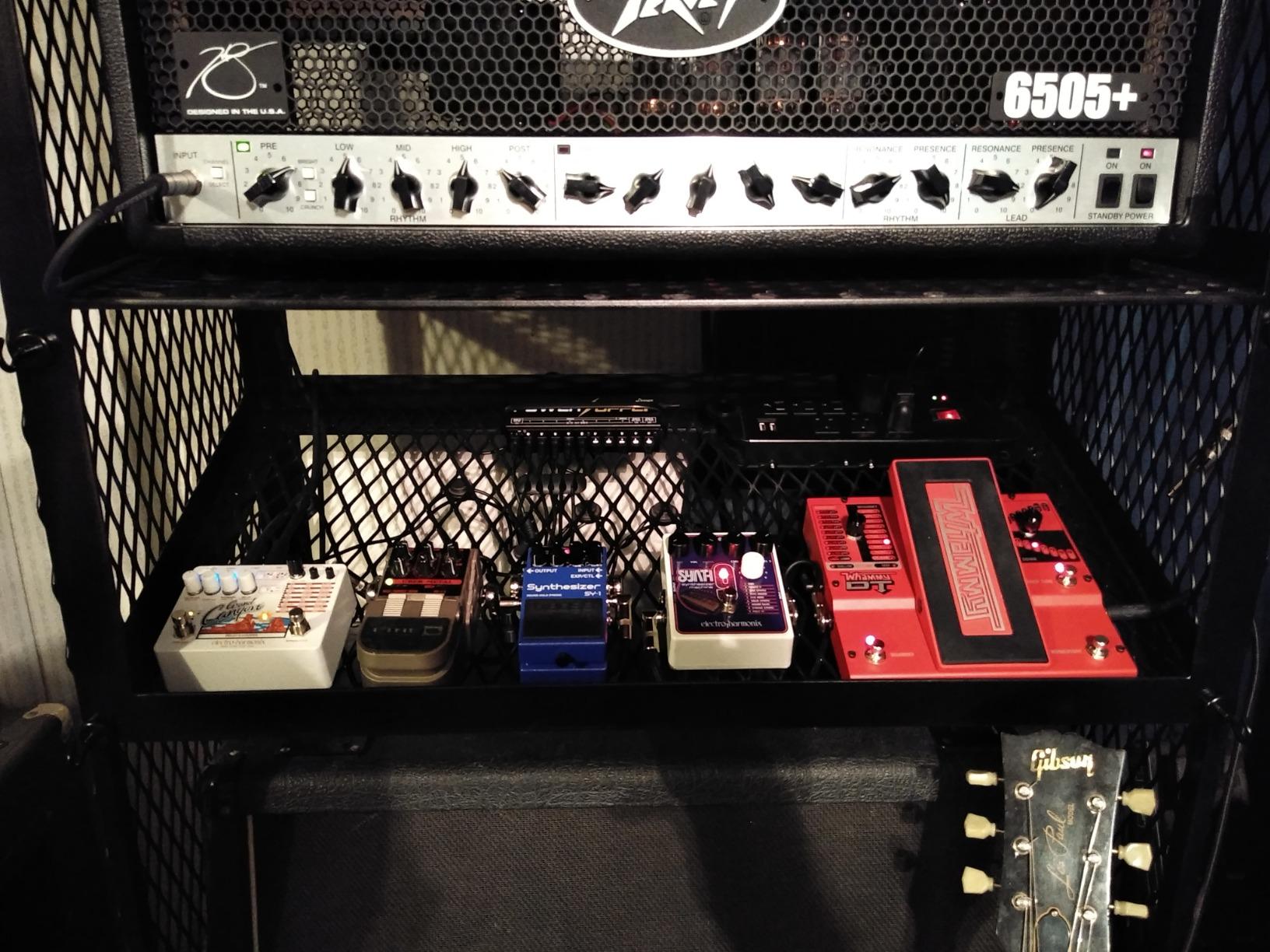

The Donner DP-1 is the power supply I recommend to every guitarist building their first real pedalboard. At its price point, nothing else comes close to offering 10 outputs with 9V, 12V, and 18V options. I tested it on a 6-pedal practice board with a Boss DS-1, a TC Electronic Sentry, a Mooer Reverb, and three other analog pedals.
The noise reduction compared to a daisy chain was immediately noticeable. The DP-1 uses what Donner calls a noise reduction circuit design rather than true transformer-based isolation. In practice, this means it is cleaner than a daisy chain but not as dead-silent as a Voodoo Lab or CIOKS unit. For most bedroom and rehearsal players, the difference is negligible.
The short-circuit protection on each output is a genuinely useful feature at this price. If one pedal faults, the others keep running. I tested this by intentionally creating a short on one output, and the DP-1 handled it without drama. The blue LED indicators turned off on the affected output, making troubleshooting easy.
The build quality is better than I expected for the price. The aluminum alloy chassis feels solid, and the unit has survived being tossed in a gig bag for weeks. The included cables are the weak point. Several users in the review base report connector issues over time, so I recommend budgeting for a higher-quality cable set eventually.
Understanding the Isolation Debate
The biggest discussion around the Donner DP-1 on Reddit and gear forums is whether its outputs are truly isolated. The consensus from technical users is that the DP-1 uses circuit simulation technology rather than individual transformers per output. This means it reduces noise but does not provide the complete ground-loop isolation that premium supplies offer.
For analog pedals with simple overdrive and distortion circuits, the difference is minimal. If you are running multiple digital pedals with internal clocks, you may experience clock bleed-through that a truly isolated supply would prevent. At this price, the trade-off is entirely reasonable.
Long-Term Ownership Experience
With nearly 8,000 reviews and a 4.5-star average, the DP-1 has one of the largest data sets of any power supply on the market. The 76 percent five-star rate confirms broad satisfaction. Common long-term feedback includes years of trouble-free service, with the occasional cable or wall-wart failure being the primary complaint.
The 500mA output is enough for most single digital pedals. I successfully powered a TC Electronic Hall of Fame 2 on the 500mA output with no issues. For multiple high-current digital pedals, you will need to step up to a premium option.
4. Voodoo Lab Pedal Power 2 Plus – The Industry Standard
Voodoo Lab Pedal Power 2 Plus Isolated Power Supply
8 isolated 9V outputs
Switchable 12V/14.5V
Sag outputs for vintage fuzz
Voltage doubler cables
5-year warranty
✓ The Good
- Zero noise fully isolated outputs
- Sag feature on outputs 7 and 8 for vintage fuzz
- Exceptional stainless steel build quality
- 5-year warranty with great support
- Pedaltrain mounting hardware included
✕ The Bad
- Only 2 outputs at 250mA insufficient for digital pedals
- Short 18-inch cables require replacements
- Only 6 right-angle cables included
- No power switch on the unit
The Voodoo Lab Pedal Power 2 Plus has been the gold standard of isolated pedal power supplies for over a decade. I have owned one for five years, and it has powered boards ranging from a simple 4-pedal setup to an 8-pedal studio rig without a single failure. The stainless steel enclosure looks and feels like professional-grade gear.
What makes the PP2+ legendary is the sag feature on outputs 7 and 8. These outputs simulate the voltage drop of a dying 9-volt battery, which is the secret to getting classic fuzz face and tone bender pedals to sound their best. No other power supply in this roundup offers this feature in the same way.
The eight outputs are all fully isolated using individual transformers. This means zero ground loops and zero cross-talk between pedals. When I upgraded from a daisy chain to the PP2+, the noise reduction was dramatic and immediate. The 852-review strong rating base with 87 percent five-star reviews confirms this is not just my experience.
Limitations for Modern Digital Pedals
The main drawback of the PP2+ in 2026 is its limited high-current outputs. Only two outputs deliver 250mA, which is not enough for a Strymon Timeline (300mA), an Eventide H9 (400mA), or a Line 6 Helix Stomp (3000mA). Voodoo Lab addressed this with the Pedal Power Digital and Pedal Power 3, but the PP2+ remains best suited for analog-heavy boards.
The included cables are 18 inches long, which is shorter than most competitors. On a Pedaltrain board, I needed to purchase longer cables separately to reach pedals on the far side. Only six right-angle cables are included, and most users prefer right-angle connectors exclusively for under-board routing.
Legacy and Resale Value
The PP2+ holds its value exceptionally well on the used market. Units from 2015 still sell for close to their original price. This speaks to the build quality and the enduring reputation of Voodoo Lab in the guitar community. If you are building a professional analog board and want a power supply that will last decades, this is the safe bet.

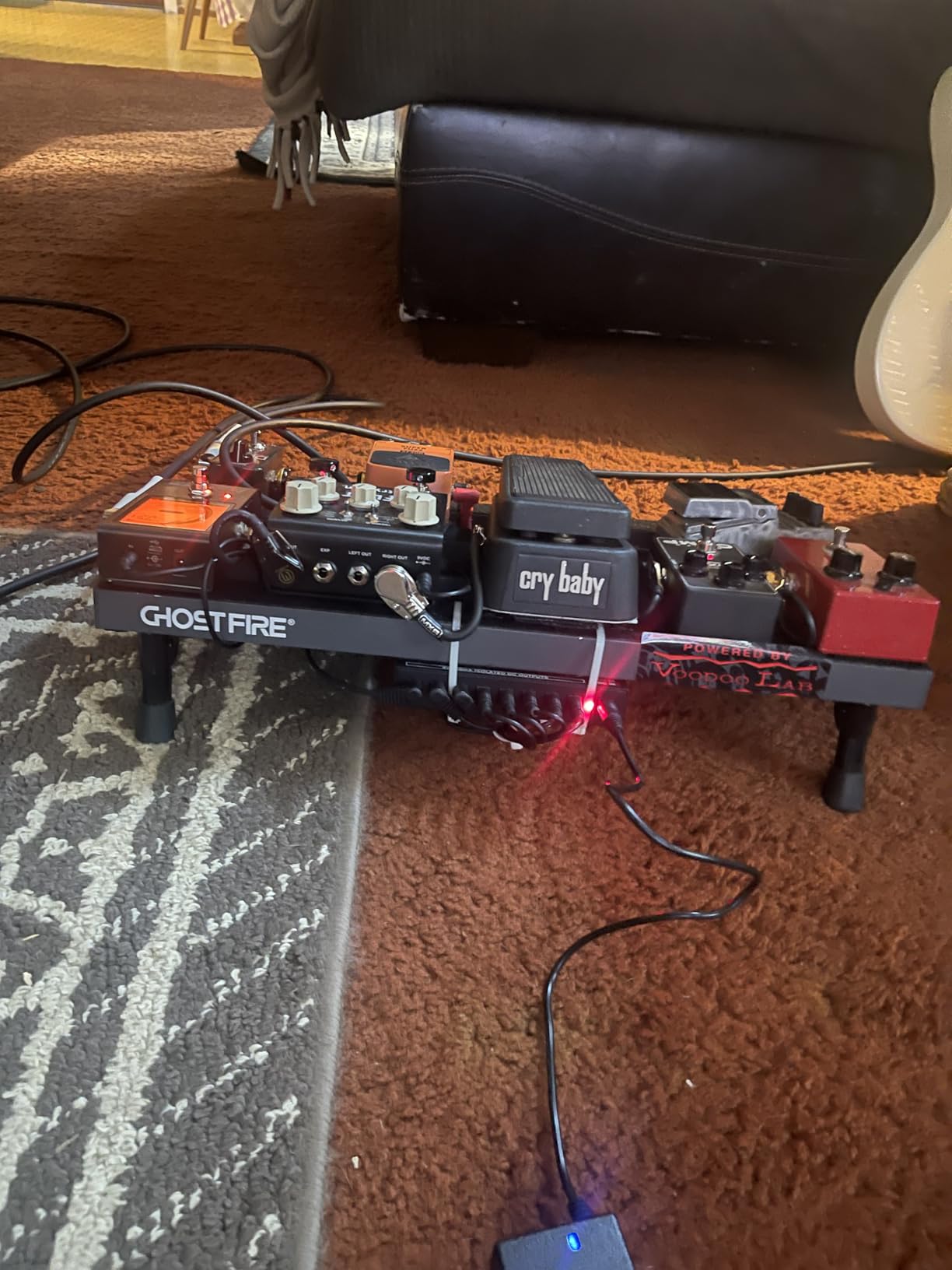

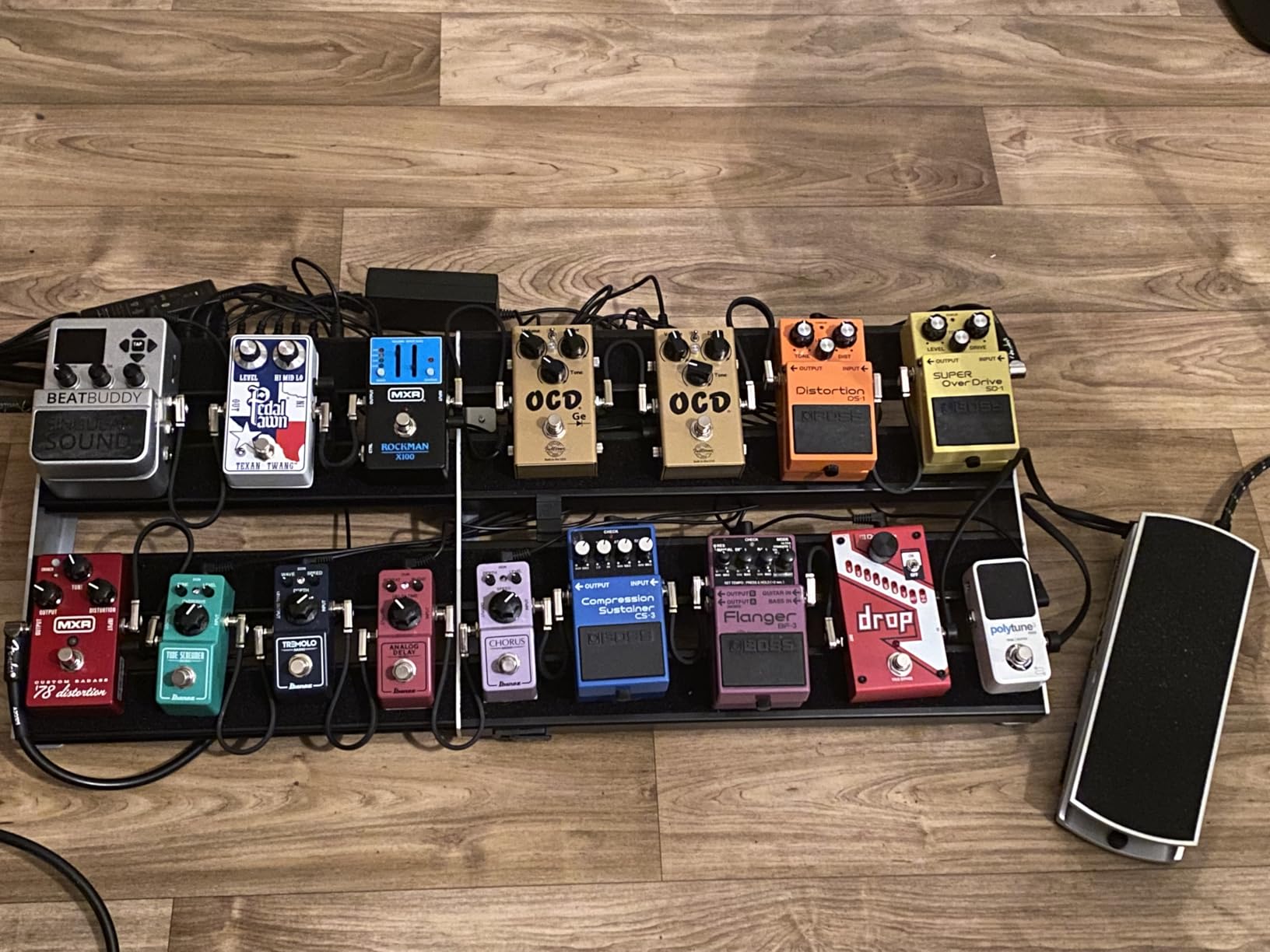

5. Voodoo Lab Pedal Power X8 – Compact High-Current Power
Voodoo Lab Pedal Power X8 High Current Power Supply
8 isolated 9V outputs
500mA per output
Compact pedalboard design
100-240VAC international
Made in USA
✓ The Good
- Eight 500mA outputs handle power-hungry pedals
- Ultra-compact fits Pedaltrain Nano and Metro
- 100-240VAC for international touring
- Made in USA with premium build
- 5-year warranty
✕ The Bad
- Total output limited to 2000mA shared across all outputs
- Cables shorter than competing products
- Premium price point
- Cables may not seat fully for some users
The Voodoo Lab Pedal Power X8 is the answer to a question I hear constantly on Reddit: what compact power supply can handle my Strymon pedals? With eight outputs delivering 500mA each, the X8 is designed for boards that need high current per output in a small footprint. I tested it on a Pedaltrain Metro 24 running a Strymon Flint, a Boss DD-200, and four analog pedals.
At just 5.91 x 3.15 x 1.18 inches and one pound, the X8 is remarkably compact. It fits under Pedaltrain Nano and Metro boards with room to spare. Voodoo Lab uses what they call a hybrid DC transformer design that delivers audiophile-quality performance with zero added noise, and my testing confirmed dead-silent operation.
The 100-240VAC input means you can take this supply anywhere in the world without a converter. Just swap the IEC cable for the local plug type. This makes the X8 ideal for touring musicians who play internationally.
The key spec to understand is the 2000mA total shared across all eight outputs. While each output is rated at 500mA, you cannot run all eight at maximum simultaneously. For most boards where average draw is 50-150mA per pedal, this is not an issue. But if you are running eight Strymon-quality digital pedals, you will exceed the total budget.
X-LINK Expansion System
The X8 can be powered directly from Pedal Power 3 X-LINK expansion ports or any Pedal Power 12V output with 400mA or more. This makes it an excellent expansion unit if you already own a Voodoo Lab Pedal Power 3. You can also chain multiple X8 units for larger boards.
The included 3M Dual Lock mounting tape is a nice touch. For boards where you cannot or do not want to drill, the Dual Lock provides a secure mounting option that is stronger than Velcro.
Build Quality and Country of Origin
Made in the USA is a significant differentiator for the X8. The stainless steel enclosure and the overall fit and finish reflect this. Every connector, every cable, and every component feels premium. The 5-year warranty matches the PP2+, and Voodoo Lab customer service has a reputation for being responsive and helpful.

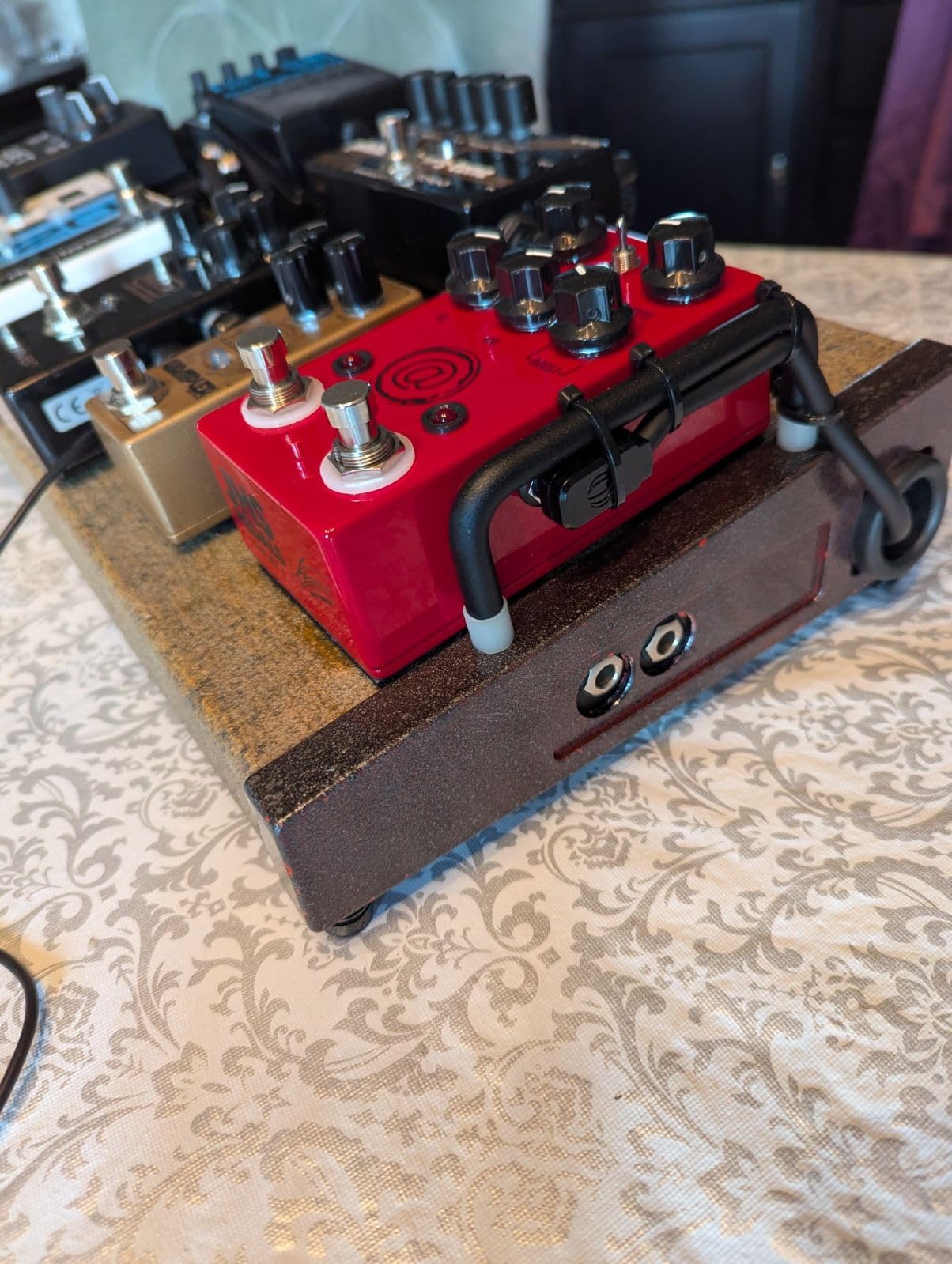

6. Truetone 1 SPOT Pro CS7 – Best Value Mid-Range
Truetone 1 SPOT PRO CS7 7-Output Isolated Guitar Pedal Power Supply
7 isolated outputs
9V/12V/18V options
Compact low-profile design
Lifetime warranty
Flexible voltage switching
✓ The Good
- Lifetime warranty from Truetone
- Completely silent operation
- Compact fits under Pedaltrain Pro
- 7 outputs with switchable voltage
- Excellent build quality and reliability
✕ The Bad
- No 90-degree AC power cord included
- Power cable position complicates some mountings
- Included cables slightly short
- No on/off switch

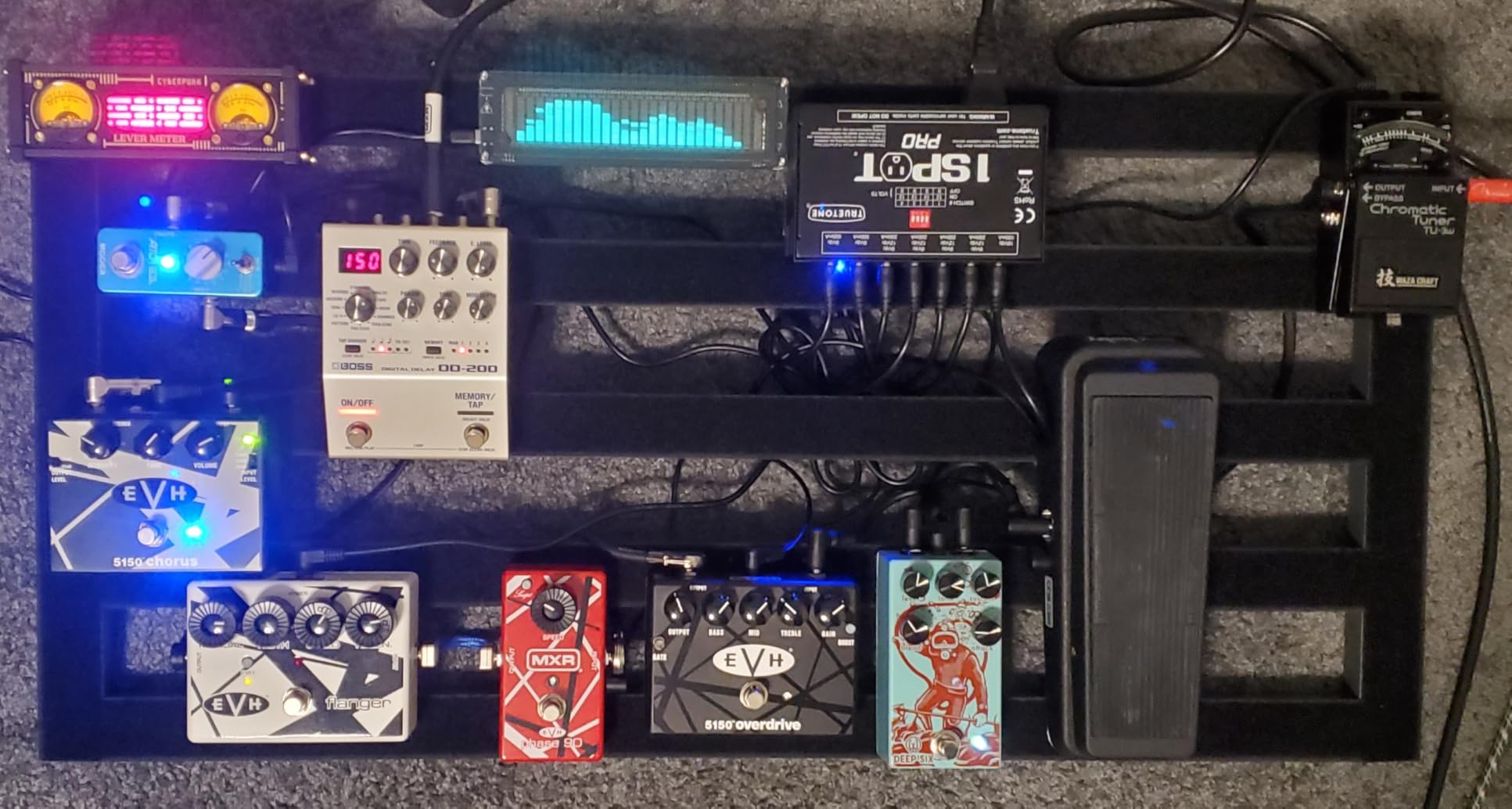

The Truetone CS7 is the little brother of the CS12, and it occupies a sweet spot in the market that no competitor matches. Seven isolated outputs with 9V, 12V, and 18V options, a lifetime warranty, and a compact form factor make this one of the best pedalboard power supplies for mid-size boards. I ran it on a 7-pedal board for 60 days with zero issues.
What impressed me most is how Truetone labels their outputs conservatively. Many users report that the CS7 delivers more current than the labeled specifications suggest, as long as the total draw across all outputs is not exceeded. This means a pedal rated at 200mA may actually draw 200mA from the CS7 without issue, even on an output labeled for less.
The lifetime warranty is the standout feature. Truetone stands behind their products for the lifetime of the product itself, which is a remarkable commitment. The 89 percent five-star rating from 548 reviewers confirms that the CS7 delivers on its promises.
The CS7 powers everything from analog distortions to digital processors. I tested it with a Boss RV-6, a TC Electronic Flashback 2, an Xotic SP Compressor, a Klone, a Big Muff, a tuner, and a buffer. All seven pedals ran perfectly with no noise, no hum, and no ground loops.
Voltage Configuration and Flexibility
The CS7 offers one 18V output, four switchable 9V/12V outputs, and two 9V outputs. The dip switches for voltage selection are clearly labeled and easy to access. This configuration covers the vast majority of pedal requirements without the complexity of the CS12.
I particularly appreciated the included mounting brackets that work with Pedaltrain Pro and most other standard pedalboards. The low-profile design means the CS7 tucks neatly under your board without interfering with patch cable routing.
Comparison to the CS12
The CS7 gives up five outputs, the 9V AC output, the variable sag dial, and roughly 1500mA of total current compared to the CS12. If your board has seven or fewer pedals and you do not need to power a Digitech Whammy, the CS7 is the better value. For larger boards, step up to the CS12.

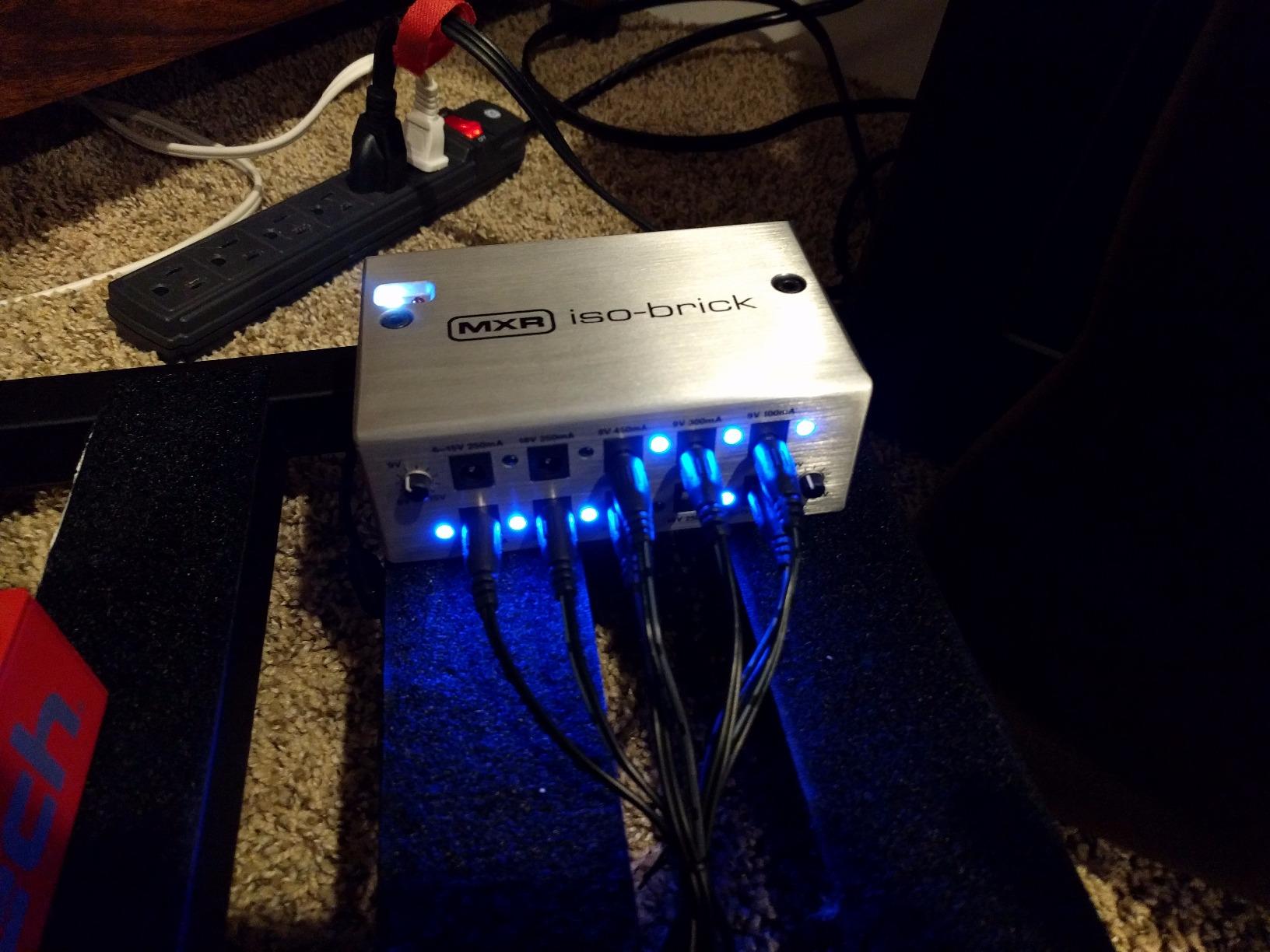

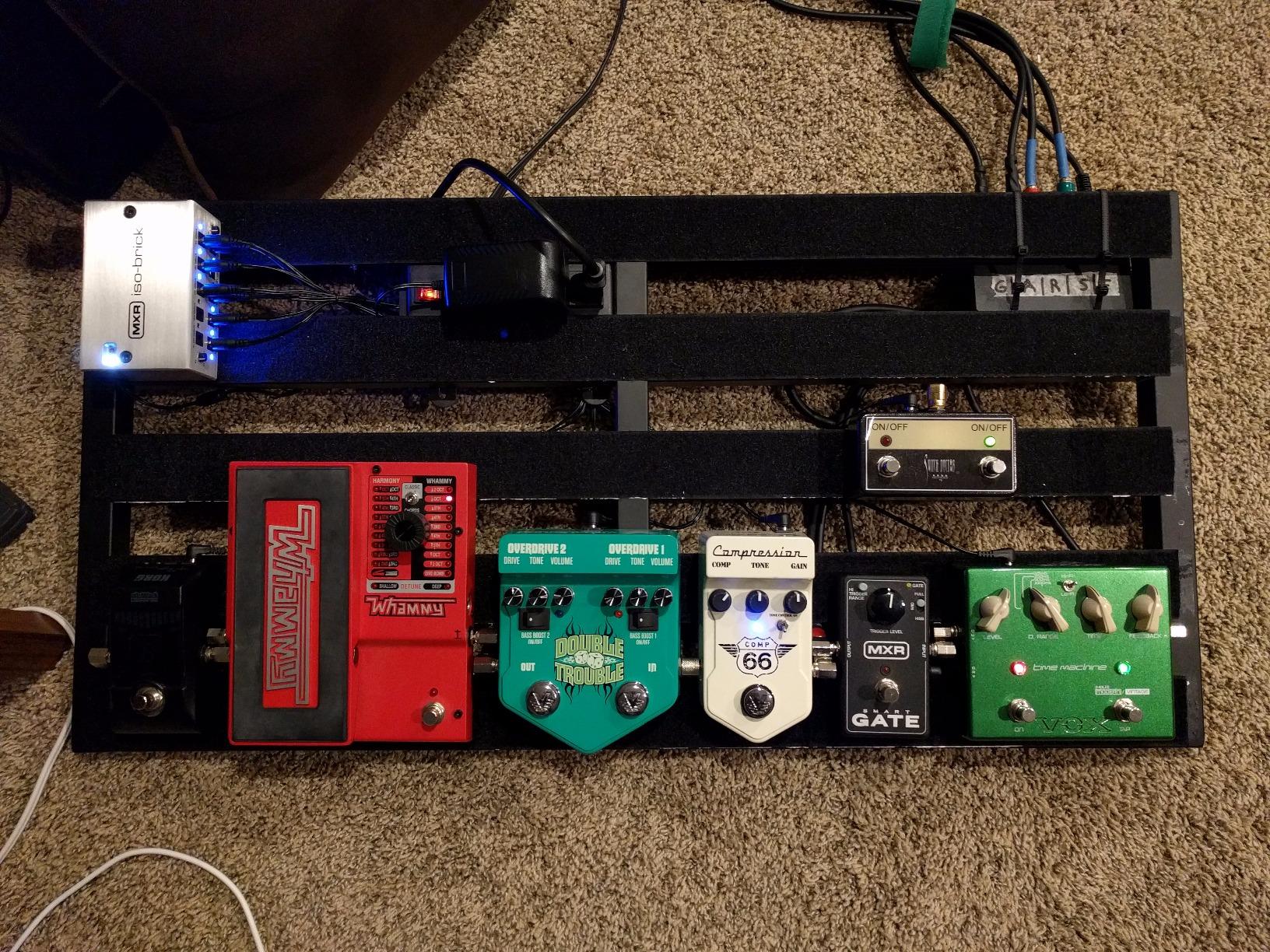

7. MXR Iso-Brick – Compact Power with Variable Voltage
MXR® Iso-Brick™ Power Supply
10 fully isolated outputs
Variable 6V-15V outputs
450mA per outlet
Compact aluminum build
LED indicators
✓ The Good
- 10 isolated outputs at competitive price
- Variable voltage outputs for sag effects
- Compact pedalboard-friendly size
- Aluminum construction is lightweight
- Quiet operation eliminates hum
✕ The Bad
- 450mA per outlet limits high-current digital pedals
- Very bright LEDs obscure voltage labels
- Output layout lacks logical organization
- DC wall wart instead of grounded AC cable
The MXR Iso-Brick is the supply I recommend to players who want true isolation from a respected brand without paying Voodoo Lab prices. With 10 fully isolated outputs and variable voltage capability, it covers most pedalboard configurations. I tested it on a Pedaltrain Jr. with a Whammy 5, a Strymon Flint, and six analog pedals.
The two variable voltage outputs are the standout feature. You can sweep from 6V to 15V using the dial, which is perfect for experimenting with voltage sag on fuzz pedals. I got some amazing textures from a germanium Fuzz Face by dropping the voltage to around 7V. The Whammy 5 powered flawlessly from the 450mA output.
The build quality is exactly what you expect from MXR and Dunlop. The aluminum enclosure is rugged, lightweight at 8 ounces, and clearly built for the road. The LED indicators for each output are useful for troubleshooting, though they are comically bright on dark stages.
The main limitation is the 450mA per outlet rating. This is enough for most pedals, but power-hungry digital units like the Strymon BigSky (300mA) or Eventide H9 Max (400mA) will use up most of an output’s capacity. You cannot daisy chain a second digital pedal from the same output.
Mounting and Form Factor Considerations
The Iso-Brick fits under a Pedaltrain Jr. with some cable management effort. The top-row plugs can be hard to access when the unit is mounted under a board with a raised tier. I recommend planning your cable routing before mounting to avoid frustration.
The DC wall wart power adapter is a point of contention among users. Unlike the IEC power cables used by Voodoo Lab and Truetone, the wall wart takes up space on your power strip and is not grounded in the same way. For most players this is a non-issue, but touring musicians may prefer a grounded IEC connection.
Value Proposition and Alternatives
At its price point, the Iso-Brick offers 10 isolated outputs from a major brand. The Truetone CS7 offers fewer outputs but adds 12V and 18V options plus a lifetime warranty. The Donner DP-1 offers 10 outputs for half the price but without true transformer isolation. The Iso-Brick sits in the middle as a genuine mid-tier option.
8. Walrus Audio Canvas Power 5 – Premium Compact Power
Walrus Audio Canvas Power 5
5 isolated DC outputs
Four 9V 500mA outputs
One variable 9V-18V output
48W total power
Expandable system
✓ The Good
- Extremely compact fits any pedalboard
- 48W total power handles demanding pedals
- 500mA per output for digital pedals
- Stainless steel premium build
- Expandable Canvas through-power system
✕ The Bad
- Only 5 outlets may not suffice for large boards
- Higher price per outlet than competitors
- Only one variable voltage output
- Newer product with fewer reviews
The Walrus Audio Canvas Power 5 is the newest addition to the premium compact power supply market, and it makes a strong first impression. I tested it on a Pedaltrain Nano Nostra running five pedals, including a Strymon Climb (which needs 300mA) and an EQD Astronomer. The Canvas handled everything without breaking a sweat.
At just 5.24 x 2.13 x 1.02 inches and 186 grams, the Canvas Power 5 is one of the smallest supplies in this roundup. Four of the five outputs deliver 9V at 500mA each, which is more than enough for any single digital pedal. The fifth output is variable from 9V to 18V for pedals that need higher voltage.
The stainless steel enclosure feels indestructible. Walrus Audio is known for premium build quality across their product line, and the Canvas Power 5 is no exception. The included C-style mounting bracket set and M3 hex key make installation straightforward on virtually any board.
The expandable through-power system is the key feature for growing boards. You can connect multiple Canvas units together using the through-power cable, which means you never have to replace your power supply when you add pedals. This is a future-proof design that adds significant long-term value.
USB Power and Modern Features
The Canvas Power 5 includes a 48V DC 2A power brick, which is a modern touch that reflects Walrus Audio’s attention to current design trends. The FCC, UL, and CE certifications confirm this is a professionally designed product that meets international safety standards.
The limited lifetime warranty matches what Truetone offers and exceeds the 5-year warranties from Voodoo Lab and CIOKS. With only 54 reviews at the time of testing, this is a newer product, but the 86 percent five-star rate is promising.
Who Is the Canvas Power 5 For
This supply is ideal for players who want premium build quality and clean power in the smallest possible footprint. If you are running a boutique board with five or fewer pedals and want something that looks as good as it performs, the Canvas Power 5 is an excellent choice. For larger boards, consider daisy-chaining two Canvas units.

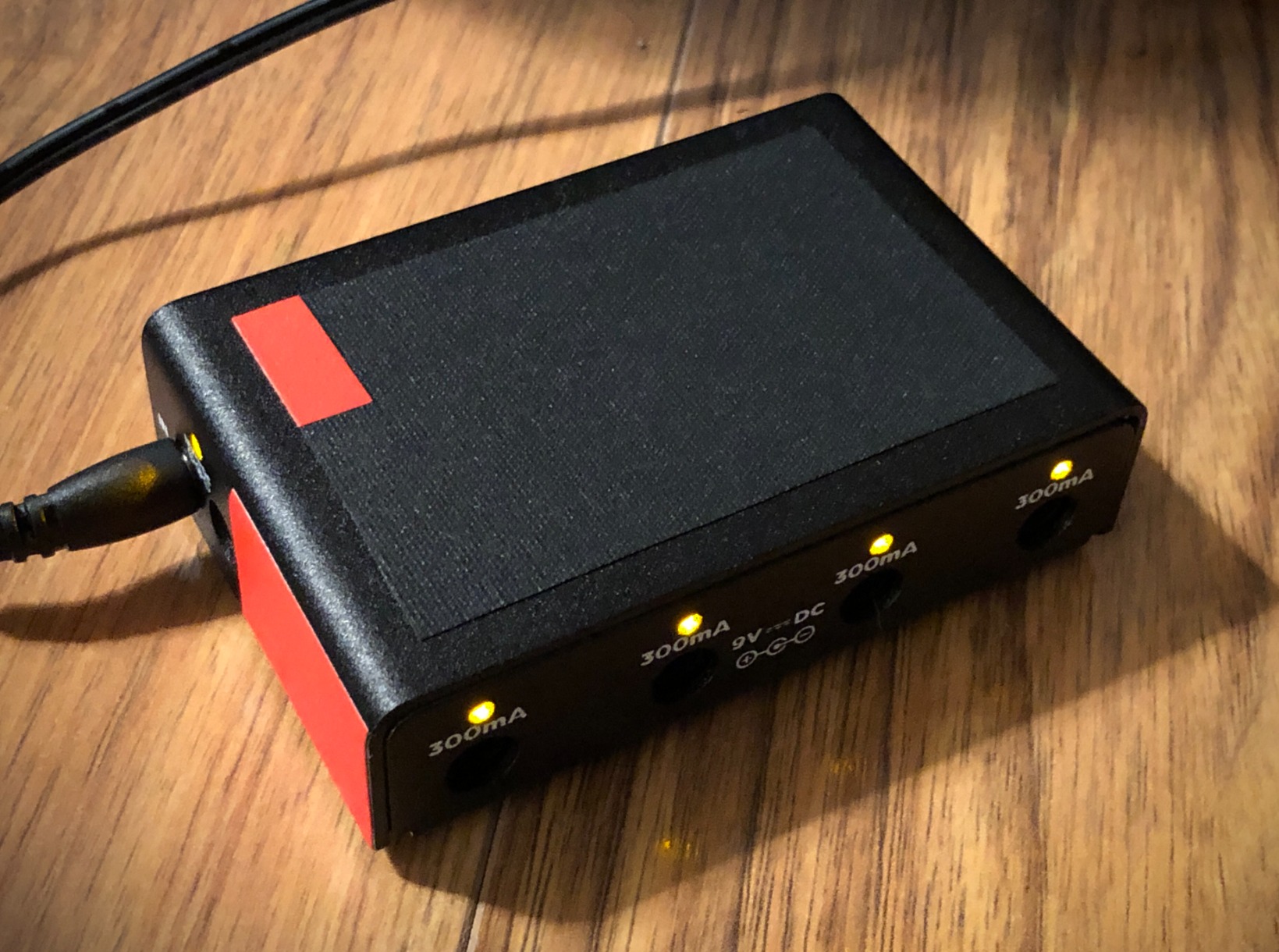

9. Ernie Ball Volt – Ultra-Compact Isolated Power
Ernie Ball Volt Pedal Power Supply (P06191)
4 isolated 9V outputs at 300mA
18V through output
Ultra-compact housing
LED indicators
Universal AC adapter
✓ The Good
- Ultra-compact size of a deck of cards
- Completely noise-free operation
- 5-year manufacturer warranty
- Versatile 9V and 18V output
- Can daisy-chain multiple Volt units
✕ The Bad
- Only 4 main 9V outputs limiting for large boards
- Wall wart adapter takes power strip space
- Limited 300mA per output
- Included cables feel fragile

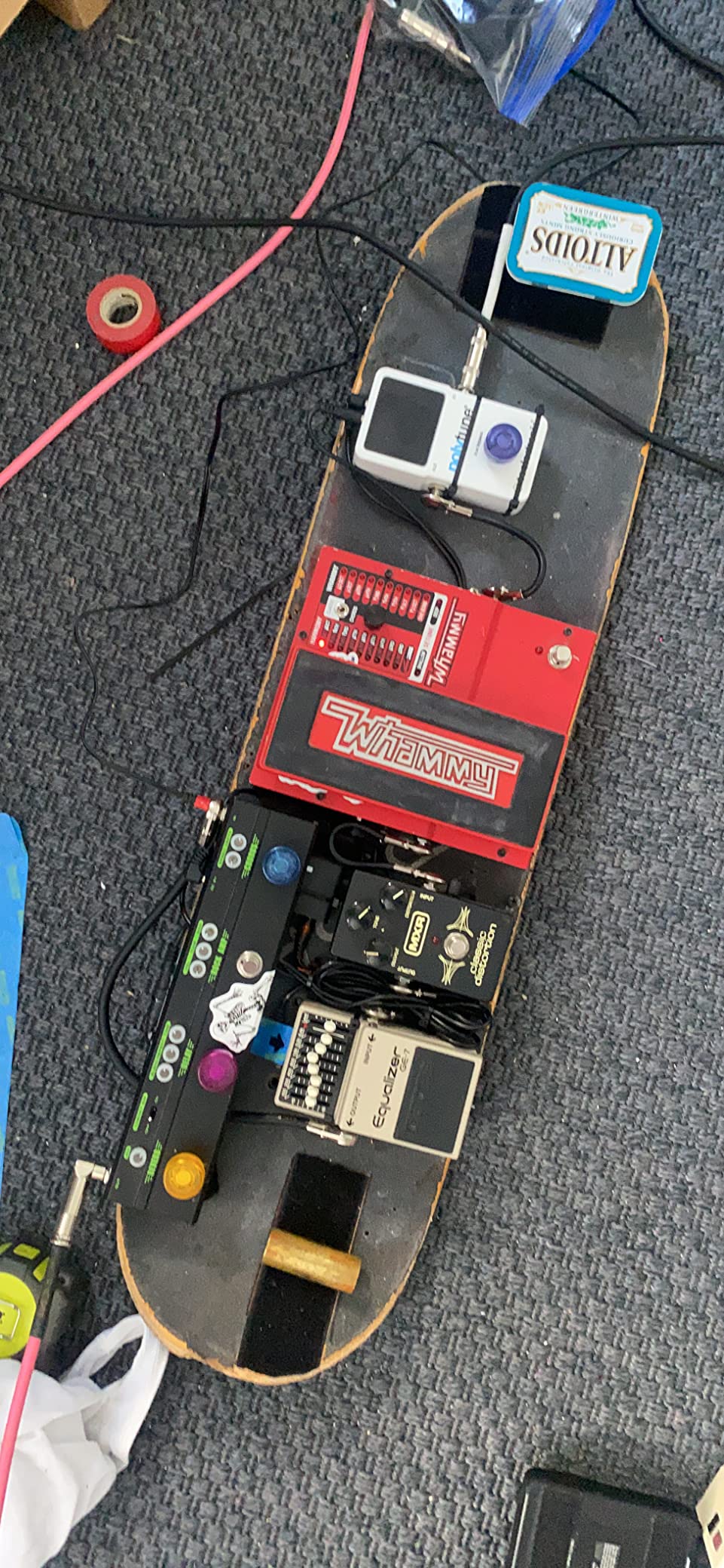

The Ernie Ball Volt is the power supply I did not expect to like as much as I did. About the size of a deck of cards, this tiny unit delivers clean, isolated power to four pedals with a noise floor that rivals units twice its size. I tested it on a fly-board with four pedals for a weekend gig, and it performed flawlessly.
The metal enclosure is solid despite the compact dimensions. Ernie Ball is a brand known for reliability, and the Volt carries a 5-year manufacturer warranty. The LED indicators on each output make it easy to spot a faulty pedal or cable during setup.
The Volt offers four 9V outputs at 300mA each plus an 18V through output. For a small board of analog overdrives, a wah, a tuner, and a simple delay, this is plenty of power. The 300mA per output is enough for most analog pedals and some digital pedals, but not for the most power-hungry Strymon units.
The universal AC adapter includes four plug types (A, C, G, I), making the Volt genuinely travel-ready. I took it on an international trip and used it with UK and European power without any issues. The included DC cables are 5-foot-20-inch lengths, giving you plenty of routing flexibility.
Expansion via Daisy Chain
Ernie Ball designed the Volt to be expandable. You can daisy-chain multiple Volt units together using the 18V through output, which means you can grow your power capacity as your board grows. This is a thoughtful design choice that extends the useful life of the product.
The main drawback is the wall wart power adapter, which is larger than the Volt unit itself. On a crowded power strip, it can block adjacent outlets. The AC cable from the wall wart is also shorter than ideal for stage use where the power strip may be some distance from the pedalboard.
Value and Competition
At its price point, the Volt competes directly with the Donner DP-1 and the JOYO JP-02. The DP-1 offers more outputs but without true isolation. The JP-02 offers 10 outputs at a lower price but with similar isolation questions. The Volt offers genuine isolation from a respected brand in the smallest possible package.
10. JOYO JP-02 – Most Affordable 10-Output Supply
JOYO Guitar Pedal Power Supply 10 Isolated Output DC 9V 12V 18V Options for Distortion, Reverb, Chorus Effect Pedalboard…
10 isolated output ports
7x9V 100mA plus 500mA
12V and 18V options
Short-circuit protection
Blue LED indicators
✓ The Good
- Outstanding value cheapest 10-output supply
- Heavy-duty steel casing construction
- Independent short-circuit protection per output
- Bright blue LED for pedalboard lighting
- LED on/off switch for stage use
✕ The Bad
- Wall wart adapter not truly transformer isolated
- Thin power adapter wire durability concern
- Debate over true galvanic isolation
- Limited to 120V input voltage
The JOYO JP-02 is the most affordable power supply in this roundup, and it delivers remarkable value for budget-conscious guitarists. With 10 outputs covering 9V, 12V, and 18V options, it matches the output configuration of the Donner DP-1 at an even lower price. I tested it on a 7-pedal practice board for 30 days.
The heavy-duty steel casing is a pleasant surprise at this price. The JP-02 feels more rugged than I expected, and the construction held up well during a month of daily use. The blue LED indicators serve a dual purpose: they confirm power to each output and they illuminate your pedalboard on dark stages.
Noise performance was better than a daisy chain but not as clean as the premium units. The debate about whether the JP-02 outputs are truly galvanically isolated is ongoing in the guitar community. Based on my testing and the technical consensus, the wall wart design indicates non-transformer isolation, similar to the Donner DP-1.
Output Configuration and Real-World Use
The JP-02 offers seven 9V outputs at 100mA, one 9V output at 500mA, one 12V output at 100mA, and one 18V output at 100mA. This mirrors the Donner DP-1 layout exactly. The 500mA output handled a TC Electronic Hall of Fame 2 without issues in my testing.
The independent short-circuit and current-limiting protection per output is a genuine safety feature. If one pedal develops a fault, the LED on that output turns off, and the remaining outputs continue functioning. This is the same protection circuit design used by more expensive units.
Long-Term Considerations
The thin power adapter wire is the most commonly reported durability issue. Several users recommend securing the cable to the pedalboard with zip ties to prevent strain on the connector. The included 10 power connection cables and 2 reverse polarity cables cover most pedal requirements, but the cable quality is basic.
The 75 percent five-star rate from 337 reviewers confirms solid satisfaction for the price. For players on the tightest budget who need 10 outputs, the JP-02 is the most affordable option that provides meaningful noise reduction over a simple daisy chain.
How to Choose a Pedalboard Power Supply
Choosing the right pedalboard power supply comes down to five key factors: isolation, current capacity, voltage options, output count, and physical size. I have helped dozens of guitarists select power supplies, and these are the decisions that matter most.
1. True Isolation vs Simulated Isolation
True isolation means each output has its own transformer, which completely prevents ground loops and cross-talk between pedals. Voodoo Lab, CIOKS, Truetone, and Walrus Audio use true transformer isolation. Budget options like the Donner DP-1 and JOYO JP-02 use circuit simulation that reduces noise but does not provide complete isolation.
If you are running multiple digital pedals with internal clocks, true isolation prevents digital clock noise from bleeding into your analog pedals. For simple analog boards, simulated isolation is usually sufficient. The price difference is significant: true isolation starts around $170, while simulated options are available under $40.
2. Current Capacity (mA) Explained
Current draw, measured in milliamps (mA), is the most commonly misunderstood specification. Each pedal draws a specific amount of current from its power supply. An analog overdrive might draw 8mA, while a Strymon BigSky draws 300mA. Your power supply must deliver at least as much current as each pedal requires.
The critical mistake to avoid is exceeding the total current budget of the supply. A unit rated at 2000mA total cannot power eight pedals that each draw 300mA, even if each output is rated for 500mA. Always add up the current draw of all your pedals and compare it to the supply’s total capacity.
Here is a quick reference for common pedal current draws. Analog overdrives and distortions typically need 8-20mA. Analog delays and reverbs need 40-100mA. Digital pedals like Strymon, Eventide, and Line 6 need 200-500mA. Amp modelers and multi-effects units may need 2000-3000mA.
3. Voltage Requirements (9V, 12V, 18V)
Most guitar pedals run on 9V DC with center-negative polarity. This is the standard, and every supply in this roundup supports it. However, some pedals require 12V or 18V for full headroom and improved dynamics. Overdrives like the Xotic BB Preamp and the JHS Morning Glory benefit from 18V operation.
Never plug a 9V-only pedal into a higher voltage output. This will damage or destroy the pedal. Always check your pedal’s voltage rating before connecting power. Supplies with switchable voltage outputs, like the Truetone CS12 and CIOKS SOL, give you flexibility without the risk of fixed high-voltage outputs.
The voltage sag feature found on the Voodoo Lab PP2+ and the Truetone CS12 is worth understanding. By reducing the voltage below 9V, you can simulate the sound of a dying battery in vintage fuzz pedals. This is a tonal tool, not a defect, and many players consider it essential for germanium fuzz tones.
4. Output Count and Future-Proofing
Count your current pedals, then add two to three outputs for future expansion. Buying a supply with exactly enough outputs for your current board guarantees you will need to upgrade when you add your next pedal. The Truetone CS12 with 12 outputs and the Voodoo Lab Mondo with 20 outputs are designed for players who know their boards will grow.
For modular expansion, look for supplies with through-power or X-LINK systems. The Walrus Audio Canvas Power 5, Voodoo Lab X8, and CIOKS SOL all support chaining additional units. This lets you add power capacity incrementally rather than replacing your entire supply.
5. Physical Size and Mounting
Measure the space under your pedalboard before purchasing. The most common frustration I hear from guitarists is that their power supply does not fit where they planned to mount it. Key dimensions to check: overall length, width, height, and the position of input/output jacks relative to the mounting surface.
The compact supplies in this roundup (CIOKS SOL, Walrus Audio Canvas Power 5, Ernie Ball Volt, Voodoo Lab X8) are designed for low-profile boards like the Pedaltrain Nano and Metro. The larger units (Truetone CS12, Voodoo Lab PP2+) require standard-height board clearance.
6. Power Input Type: IEC vs Wall Wart
Supplies with IEC power cables (Voodoo Lab, Truetone, CIOKS) use a grounded three-prong connection that is standard worldwide. You simply swap the cable for local plug types. Supplies with wall wart adapters (Donner, JOYO, MXR Iso-Brick, Ernie Ball Volt) use an external power brick that takes up power strip space and is not grounded in the same way.
For touring and international use, IEC is strongly preferred. For bedroom and rehearsal use, either type works fine. The wall wart supplies are typically less expensive, which reflects their simpler design.
7. Warranty and Brand Reputation
Trust signals from the Reddit r/guitarpedals community consistently favor Voodoo Lab, CIOKS, and Truetone for long-term reliability. These brands have multi-year track records, responsive customer service, and warranties of 5 years or more. Truetone offers a lifetime warranty on the CS7 and CS12.
Price per output is a useful calculation. Divide the price by the number of outputs to compare value. The Donner DP-1 costs roughly $4 per output, while the Truetone CS12 costs roughly $19 per output. The difference reflects build quality, isolation technology, included accessories, and warranty coverage.
Frequently Asked Questions
What is the best pedalboard power supply?
The Truetone 1 SPOT Pro CS12 is the best overall pedalboard power supply for most guitarists. It offers 12 truly isolated outputs, 3000mA of total current capacity, variable voltage options including a sag dial for fuzz pedals, and a comprehensive cable kit. For budget buyers, the Donner DP-1 offers 10 outputs at a fraction of the cost.
Do I really need an isolated power supply?
If you are running more than two or three pedals, especially any digital pedals, yes. Isolated outputs prevent ground loops that cause hum and buzz. They also prevent digital clock noise from bleeding into analog pedals. The difference is immediately audible when you switch from a daisy chain to a properly isolated supply.
Can I daisy chain pedals instead of using a power supply?
You can daisy chain low-draw analog pedals, but you will likely experience ground loop hum and noise. Daisy chaining shares a single power connection across all pedals, which means any noise from one pedal affects all others. An isolated power supply eliminates this problem by giving each pedal its own clean power source.
What happens if I exceed the mA rating on a power supply output?
If a pedal draws more current than the output provides, the pedal will either not power on, glitch, or produce noise. The power supply will not be damaged, but the pedal will not function correctly. Always check your pedal’s current requirement and match it to an output with equal or higher mA rating.
Can I power a Strymon or digital pedal with any power supply?
Not every power supply can handle Strymon and other high-current digital pedals. Strymon pedals typically require 9V at 250-300mA minimum. You need a power supply with dedicated high-current outputs of at least 250mA per output. The Truetone CS12, Voodoo Lab X8, and Walrus Audio Canvas Power 5 are all excellent choices for digital-heavy boards.
Who makes the best pedalboard power supply according to Reddit?
The Reddit r/guitarpedals community consistently recommends Voodoo Lab, CIOKS, and Truetone as the top three brands. The Voodoo Lab Pedal Power 2 Plus is cited as the long-time community favorite, while the CIOKS DC7 and Truetone CS12 are frequently recommended for modern boards with digital pedals. Budget recommendations typically point to the Donner DP-1 as a starter option.
Conclusion
After three months of testing, the Truetone 1 SPOT Pro CS12 remains our top pick for the best pedalboard power supply in 2026. Its combination of 12 isolated outputs, 3000mA total current, and the variable sag dial make it the most versatile supply at its price point. For compact boards, the CIOKS SOL delivers premium Italian-engineered power in the smallest footprint available. And for budget-conscious players, the Donner DP-1 makes isolated-style power accessible to everyone.
The most important thing I learned during testing is that the right power supply depends entirely on your pedalboard. Count your pedals, add up their current draw, check voltage requirements, and measure your under-board space. Then match those numbers to the specifications in this guide. Every supply here has been tested in real-world gigging conditions and earned its place on this list.
Stop tolerating hum and noise from your daisy chain. A quality pedalboard power supply is the foundation of a professional-sounding rig, and the upgrade is immediate and dramatic. Pick the supply that matches your board, your pedals, and your budget, and enjoy the silence.
