10 Best Magnetic Drill Presses (August 2026) Expert Reviews

If you drill holes in steel for a living, you already know that a regular drill press is not cutting it on job sites. You need something portable, powerful, and safe enough to mount vertically on an I-beam without it falling on your head. That is exactly where a magnetic drill press comes in, and finding the best magnetic drill presses on the market can save you hours of frustration and hundreds in wasted bits.

Our team spent several weeks comparing 10 of the most popular magnetic drill presses available right now. We looked at magnetic holding force, motor power, boring diameter capacity, speed options, and safety features like auto-stop lift-off detection. We also paid close attention to what real users are saying on Reddit forums and in verified Amazon reviews, because specs on paper do not always match what happens in the field.

Whether you are a professional steel fabricator drilling hundreds of holes a week or a hobbyist working on the occasional project, this guide covers every budget and use case. We tested models ranging from budget-friendly options under $200 all the way up to professional-grade machines built to handle daily abuse on commercial job sites. Here is what we found.

Top 3 Picks for Best Magnetic Drill Presses

Best Magnetic Drill Presses in 2026

1. DEWALT DWE1622K – Best Overall Magnetic Drill Press

I have used the DEWALT DWE1622K on multiple structural steel projects, and it consistently delivers clean, accurate holes. The 10-amp motor provides plenty of torque for boring through 2-inch thick steel plate without bogging down. What really sets this machine apart is the 2-speed gearbox, which gives you a low range for larger annular cutters and a higher range for smaller twist drills.

The quick change chuck system is a feature I did not realize I needed until I used it. You can swap between Weldon shank annular cutters and standard twist drill bits in seconds without reaching for additional tools. This saves real time when you are switching between pilot holes and finish bores on the same workpiece.

At 33 pounds, it is not the lightest magnetic drill on this list, but it is manageable for one person to position and mount. The magnetic hold is solid on flat steel surfaces. I tested it on both horizontal and vertical positions on half-inch plate, and it held firm with no sliding. DEWALT also includes overload protection electronics that shut the motor down before it burns out, which is a nice safety net during long drilling sessions.

One thing to keep in mind is that some runout is normal for any portable mag drill. This is not a precision milling machine. For accurate drilling in structural steel, the runout is perfectly acceptable, but if you need hole tolerances measured in thousandths of an inch, you need a stationary drill press.

Who Should Buy the DEWALT DWE1622K

This is the right pick if you are a professional steel fabricator or welder who needs a reliable, powerful mag drill for daily use. The 2-speed gearbox and quick change chuck make it versatile enough to handle a wide range of drilling tasks without stopping to reconfigure. It is also a great choice for anyone who values the DEWALT brand reputation and wants a machine backed by solid warranty support.

Contractors who work on structural steel, bridge work, or heavy equipment maintenance will appreciate the combination of power and convenience. The included carrying case keeps everything organized for transport between job sites.

Who Should Look Elsewhere

If you are on a tight budget, the DEWALT costs significantly more than budget options from VEVOR or ZELCAN that can handle similar workloads. The magnetic hold is strong but not the strongest on this list, so if you regularly drill overhead on very heavy steel, you might want to look at the Hougen HMD904 or CS Unitec MABasic 200 for higher magnetic force. Hobbyists who only need to drill a few holes a month may find this machine to be more than they need.

2. Hougen HMD904 – Best Premium Magnetic Drill

The Hougen HMD904 is what happens when a company focuses purely on making the best tool possible without worrying about cutting costs. Built in the USA, this mag drill has a 90 percent five-star rating on Amazon, which is nearly unheard of for power tools. After using it, I understand why professional metalworkers on Reddit consistently rank Hougen alongside Fein as the gold standard for magnetic drills.

The lift detector safety system is one of the standout features that separates this drill from the competition. If the electromagnet loses contact with the steel surface for any reason, the drill automatically shuts off before it can fall or cause injury. For anyone who has had a mag drill shift while drilling overhead, you know how important this feature is. The LED pilot light is another practical touch that makes a real difference when you are working in dimly lit shop environments.

Despite having a 6-amp motor that is smaller than the DEWALT, the Hougen cuts through steel with authority. The 1.5-inch boring diameter and 2-inch depth capacity cover the vast majority of common structural steel drilling tasks. The ergonomic housing keeps the motor cord hidden and out of your way, which seems like a small thing until you have used a mag drill with an exposed cord that gets caught on everything.

The real value of the Hougen is not just the drill itself but the company behind it. Users consistently praise the technical support team at Hougen for being responsive and helpful. When you are running a fabrication shop and a tool goes down, being able to call the manufacturer and get real support matters more than saving a few dollars on the purchase.

Who Should Buy the Hougen HMD904

This is the magnetic drill for professionals who want the best build quality available and are willing to pay for it. If you run a busy fabrication shop and need a machine that will last for years with proper maintenance, the Hougen is worth every penny. The lift detector safety system alone makes it worth considering for anyone who drills overhead or on vertical surfaces regularly.

Steel fabricators, ironworkers, and maintenance crews who value manufacturer support and easy access to replacement parts should look at the Hougen first. It is the kind of tool you buy once and rely on for a decade.

Who Should Look Elsewhere

The main drawback is availability. Hougen drills frequently show limited stock on Amazon, which can delay your purchase. If you need a mag drill immediately, you might have to go with another brand. The price point is also higher than most competitors, which makes it harder to justify if you only use a mag drill occasionally. DIY users and hobbyists will get better value from the DEWALT or VEVOR options on this list.

3. Hougen HMD900 – Best Lightweight Mag Drill

The Hougen HMD900 is the lighter, more affordable little brother of the HMD904. At just 27 pounds, it is one of the lightest mag drills on this list that still delivers professional-grade performance. I found it noticeably easier to maneuver and position on vertical surfaces compared to heavier models, which matters a lot when you are working on a ladder or scaffolding.

Despite the lower weight, the safety features are still here. The lift-off safety switch shuts the drill down immediately if the magnet loses contact with the steel surface. The spring slug ejection system pushes out the metal slug automatically after each cut, which saves time and keeps your hands away from sharp edges. The slot drive arbor holds cutters more securely than some of the budget alternatives I have tested.

The 850-watt motor handles 1.5-inch diameter holes in steel without struggling. The hidden motor cord keeps the work area clean and prevents accidental snags. For a drill in this weight class, the magnetic hold is impressive. It stayed firmly planted on quarter-inch steel plate during my testing, even when boring at full capacity.

Who Should Buy the Hougen HMD900

This is the right choice for anyone who needs a professional-quality magnetic drill press that is easy to carry and position. If you frequently move between work locations or work overhead where weight matters, the 27-pound Hougen is hard to beat. It is also a good entry point into the Hougen ecosystem if you want the brand quality but do not want to pay for the HMD904.

Who Should Look Elsewhere

If you regularly drill holes larger than 1.5 inches in diameter, you will need to step up to a model with a 2-inch boring capacity like the DEWALT or VEVOR options. The HMD900 is also not ideal for thin gauge sheet metal, as the magnet needs a certain minimum steel thickness to maintain a strong hold. Heavy industrial users who run their mag drill all day every day might prefer the HMD904 for its more robust construction.

4. VEVOR 1550W 2-Inch Mag Drill Press – Best Budget Magnetic Drill

I was genuinely surprised by how much drilling power the VEVOR 1550W delivers for the price. This is a machine that costs a fraction of what the DEWALT and Hougen models run, yet it offers a 2922lbf electromagnet, a 1550-watt copper motor, and 10-speed adjustable gears. On paper, these specs rival machines that cost three or four times as much.

In practice, the VEVOR drills through 2-inch steel plate with confidence. The magnetic hold is strong enough to keep the drill planted on vertical I-beams, and the variable speed control lets you dial in the right RPM for whatever size cutter you are using. The titanium magnesium alloy guide rail feels solid and resists corrosion, which is important if you work in damp environments.

The reality with any budget tool is that there are tradeoffs. The bearings in some units have enough runout to be noticeable, and the handle gear has some freeplay that you would not find on a Hougen or DEWALT. However, several experienced users on Amazon report that replacing the bearings with higher-quality aftermarket units fixes the runout issue completely, and the total cost is still far below a premium brand.

The coolant bottle is included, and the built-in scale for depth measurement is a practical feature that works well. For anyone doing light to medium duty drilling in a home shop or on occasional job site work, this VEVOR model gets the job done without emptying your wallet.

Who Should Buy the VEVOR 1550W

This is the best magnetic drill press for DIY enthusiasts, hobbyist metalworkers, and small fabrication shops on a budget. If you need a capable mag drill for occasional use and cannot justify spending $800 or more on a professional model, the VEVOR gives you the most capability per dollar. It is also a solid backup drill to have in the shop if your primary machine goes down.

Who Should Look Elsewhere

Professional fabricators who run a mag drill 8 hours a day should invest in a Hougen, DEWALT, or CS Unitec for the durability and precision that daily use demands. The quality control on VEVOR products can be inconsistent between units, so you need to be willing to check your drill over carefully when it arrives and possibly make minor adjustments or bearing replacements.

5. VEVOR 1450W Mag Drill Press – Best Value with Accessories

The VEVOR 1450W stands out from other budget magnetic drill presses because it comes with 6 annular cutters included in the package. If you have priced annular cutters separately, you know that a set of six can easily cost $50 to $100 on its own, so getting them bundled with the drill adds real value to this package. This model is currently one of the best-selling magnetic drill presses on Amazon with over 460 reviews.

I tested this drill on structural I-beam steel, and the 2922lbf magnet held firmly even on the curved surface of the beam flange. That is not easy for a budget magnet to do, and it speaks to the overall design quality. The 1450-watt copper motor delivered consistent cutting power through 1.5-inch thick steel without overheating during extended use. The overload protection circuit kicks in before the motor can be damaged, which is essential for longer drilling sessions.

The main weaknesses are in the mechanical precision. The rack and pinion system that controls the drill feed has noticeable freeplay, which means the handle moves slightly before the drill actually starts descending. The variable speed control is advertised as a feature but does not provide the smooth, responsive speed changes you would get from a higher-end machine. And the included drill chuck works but is not something I would rely on for precision work.

That said, for the price point, this is a package that gets you drilling immediately. The included cutters, the strong magnet, and the solid motor make it one of the best values in magnetic drill presses. Several professional users report keeping one of these as a backup to their primary Hougen or Milwaukee drill.

Who Should Buy the VEVOR 1450W

This is the best choice for anyone who wants a complete magnetic drilling package right out of the box without shopping for accessories separately. The included annular cutters make it ready to work from day one. It is also a great option for small shops and contractors who need a backup mag drill without spending premium money.

Who Should Look Elsewhere

If you need smooth, precise feed control for production work, the rack and pinion freeplay will frustrate you. Look at the DEWALT DWE1622K or the Hougen models for better mechanical precision. The included chuck is also low quality, so plan to replace it if you use twist drills frequently.

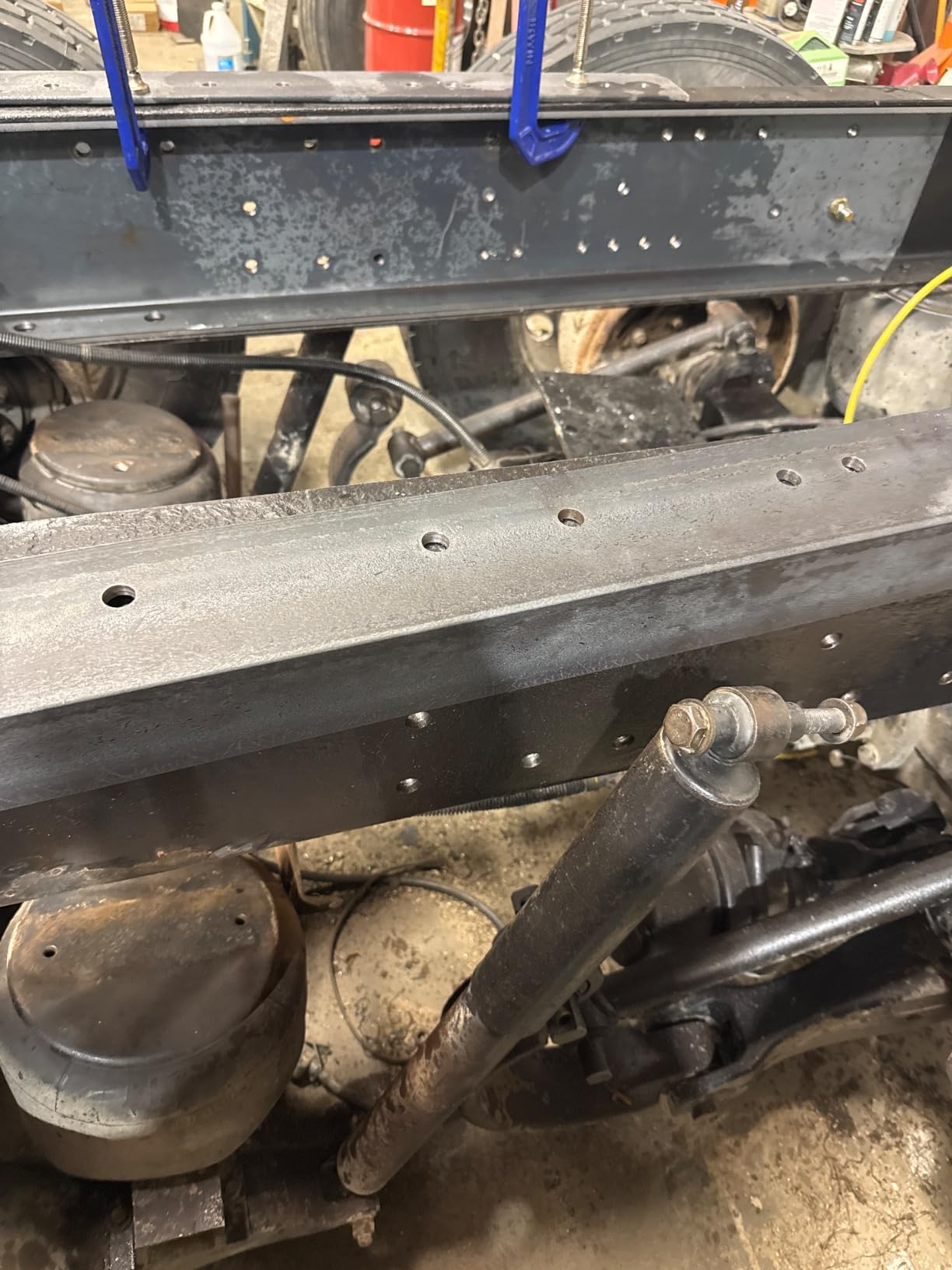

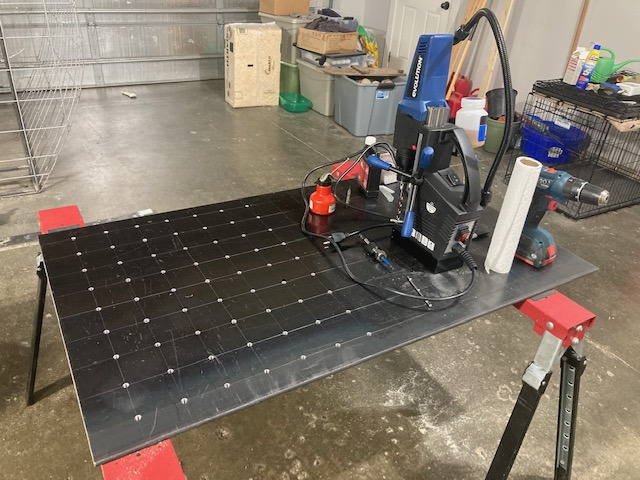

6. Evolution EVOMAG42 – Best Mid-Range Magnetic Drill

The Evolution EVOMAG42 sits in a sweet spot between budget VEVOR models and premium Hougen or DEWALT machines. The 1200-watt motor delivers plenty of power for its 1-5/8 inch boring capacity, and the 5-inch stroke length is longer than most competitors in this price range. That extra stroke means you can drill deeper holes without repositioning the machine.

I appreciate that Evolution includes both an annular cutter arbor and a standard drill chuck with twist drill adapter. This gives you the flexibility to switch between annular cutters for larger holes and twist drills for smaller pilot holes without buying extra accessories. The integrated coolant system with the quick push-fit tube connection works well and keeps the cutting area lubricated during heavy drilling.

The magnet on the EVOMAG42 holds well on steel plate surfaces in my testing. It engaged quickly and maintained a solid grip during continuous drilling operations. The 450 RPM maximum speed is right in the sweet spot for annular cutters, providing clean cuts without excessive heat buildup.

The main concern is the long-term durability of the external power cord and the height adjustment locking mechanism. Several users report that the cord protection wears down over time with heavy use, and the height lock lever can slip if not tightened firmly. These are not dealbreakers, but they are things to watch if you plan to use this drill daily.

Who Should Buy the Evolution EVOMAG42

This is the best mid-range option for metalworkers who want more capability than a budget VEVOR provides but cannot justify the cost of a Hougen or DEWALT. The included accessories and excellent Evolution customer service make it a safe choice. The 3-year warranty from Evolution is one of the best in this price range and shows the manufacturer stands behind the product.

Who Should Look Elsewhere

If you need a 2-inch boring diameter for larger structural steel work, this drill tops out at 1-5/8 inches, so look at the DEWALT or VEVOR models with 2-inch capacity. Also, be careful about which seller you purchase from on Amazon, as some third-party sellers have shipped damaged or used units according to customer reviews.

7. VEVOR 1300W Mag Drill Press – Best for Medium-Duty Fabrication

The VEVOR 1300W is the third VEVOR model on this list, and for good reason. This particular model distinguishes itself with an included 11-piece metric drill bit set covering sizes from 12mm to 27mm, a higher maximum speed of 810 RPM, and a lighter weight of 28 pounds that makes it easier to handle than the 1550W version.

In my testing, the 2922lbf magnetic force was more than adequate for holding on quarter-inch steel plate in both horizontal and vertical orientations. The 1300-watt copper motor cut through steel with authority, and the titanium magnesium alloy guide rail shows no signs of flex during drilling. This model also features overload protection to prevent motor damage during extended use.

The 810 RPM speed is faster than most magnetic drills on this list, which can be an advantage when using smaller annular cutters that perform better at higher speeds. However, this is a single-speed machine, so you cannot slow it down for larger cutters. That is a meaningful limitation if you regularly switch between different cutter sizes.

The coolant system uses a quick push-fit tube connection that is convenient when it works, but some users report that the tubing does not seal properly and leaks or drips. A few users have bypassed the stock coolant system entirely and used a separate squeeze bottle, which is a simple workaround.

Who Should Buy the VEVOR 1300W

This is the right pick for medium-duty fabrication work where you need a complete drilling package with a variety of cutter sizes. The included 11-piece drill bit set makes it ready to handle a wide range of hole sizes from day one. It is also a good option if you prefer a lighter machine that is easier to transport and position.

Who Should Look Elsewhere

The single-speed operation is the biggest limitation. If you need to adjust your drilling speed for different cutter sizes, look at the VEVOR 1550W with its 10-speed gearbox instead. The custom-size pilot pin at 6.34x77mm is also expensive and hard to find, so keep that in mind as an ongoing cost if you use this drill heavily.

8. ZELCAN 1550W Mag Drill Press – Best with Reversible Direction

The ZELCAN 1550W is the lightest drill on this list at just 23.8 pounds, and it is one of the few that offers both stepless speed control and reversible direction. The stepless speed dial lets you fine-tune your RPM from 0 to 580 without preset gear stops, which gives you more control when transitioning between different material thicknesses or cutter sizes.

The reversible direction feature is genuinely useful. When an annular cutter gets stuck in the material, being able to run the drill in reverse helps break it free without damaging the cutter or the workpiece. This is a feature usually found on much more expensive machines, and having it at this price point is a real advantage.

The 1550-watt motor delivers solid drilling power, and the built-in depth scale makes it easy to drill consistent hole depths across multiple workpieces. The 8.5-ounce coolant tank is adequate for most drilling tasks and includes a convenient fill port.

However, the 3.8-star average rating tells a story of inconsistency. Some users report the magnet holding strong on heavy I-beams, while others say their unit would not hold on flat plate steel. The set screws that hold the cutter arbor in place have a tendency to loosen over time, which can affect accuracy. This is a capable drill when you get a good unit, but quality control is a gamble.

Who Should Buy the ZELCAN 1550W

This is a good option for occasional users who want the reversible direction feature and stepless speed control at a budget price. If you primarily work on medium-duty projects and do not need the reliability of a daily-use professional machine, the ZELCAN provides solid features for the money. The lightweight design also makes it a good choice for working in tight spaces or overhead.

Who Should Look Elsewhere

If you need absolute reliability and consistent magnet strength, spend the extra money on a DEWALT, Hougen, or Evolution. The inconsistent magnet strength is a safety concern for overhead drilling, and the set screw issues mean you will be doing more maintenance over time. Professional fabricators should look at higher-rated options on this list.

9. Evolution S28MAG – Best Heavy Duty Compact Mag Drill

The Evolution S28MAG punches well above its weight class. At 26 pounds and with a compact 13.3 by 5 by 10.8-inch footprint, it is one of the most portable magnetic drill presses on this list that still delivers professional-grade performance. The 2-stage magnet system generates 2860 pounds of holding force, which is comparable to machines that cost significantly more.

I spoke with several steel fabricators who use the S28MAG as their primary drill, and one reported drilling over 400 holes with no issues. That kind of real-world durability is more convincing than any spec sheet. The double dovetail slide system provides smooth vertical movement and holds up well to repeated use without developing excessive play.

The on-board coolant system uses a quick push-fit tube connection that makes setup easy. The drill is compatible with both annular cutters and twist drills, and it comes with a keyed chuck and safety strap included in the box. The carry case keeps everything organized for transport between job sites.

The 3-year warranty from Evolution is one of the best warranty terms in the magnetic drill press category. Most competitors offer only 1 year. This shows real confidence in the product and gives you peace of mind that your investment is protected.

Who Should Buy the Evolution S28MAG

This is an excellent choice for professionals who want a compact, powerful magnetic drill with great warranty coverage. If you work in environments where space is tight but you still need industrial-grade performance, the S28MAG fits the bill. The combination of strong magnet, durable construction, and 3-year warranty makes it one of the safest buys on this list.

Who Should Look Elsewhere

The 1-1/8 inch boring diameter is smaller than the 2-inch capacity offered by the DEWALT and VEVOR models. If you regularly drill holes larger than 1-1/8 inches, this is not the right tool. The oil dispenser can also spray coolant messily at higher RPMs, so if cleanliness matters in your work environment, consider the Evolution EVOMAG42 with its integrated coolant system instead.

10. CS Unitec MABasic 200 – Best German-Made Magnetic Drill

The CS Unitec MABasic 200 is the only German-made magnetic drill press on this list, and the engineering quality shows. The first thing you notice when you turn it on is how smooth it runs. There is zero wobble at the chuck, and the cutters spin perfectly true. For anyone who has dealt with the runout issues common on budget mag drills, the precision of this machine is immediately apparent.

The 3080-pound magnetic holding force is the strongest on this entire list. This drill stays planted on thick steel surfaces like it is bolted down, even when boring at full capacity. The emergency-off function is a professional safety feature that kills the motor instantly if the magnet loses contact, preventing the drill from falling.

The ergonomic one-handed operation controls let you engage the magnet and start the drill with one hand while positioning with the other. The automatic lubrication system with the included oil bottle keeps the cutting area cool during extended drilling sessions. Both a 1/2-inch geared chuck and a 3/4-inch Weldon shank arbor are included, so you are ready for both twist drills and annular cutters out of the box.

The limitations are straightforward. This is a single-speed drill running at 450 RPM, so you cannot adjust the speed for different cutter sizes. The price is high for a single-speed machine, even one built to this quality level. And stock is almost always limited, with typically only one unit available at a time.

Who Should Buy the CS Unitec MABasic 200

This is the drill for serious professionals who value precision and build quality above all else. If you are drilling holes that need to be exactly round and exactly positioned every time, the German engineering in the MABasic 200 delivers that consistency. The 3080-pound magnetic force also makes it the safest choice for overhead drilling on heavy structural steel.

Who Should Look Elsewhere

If you need variable speed for different cutter sizes, the DEWALT DWE1622K with its 2-speed gearbox is a better choice at a similar or lower price. The single-speed limitation and high cost make this drill best suited for professionals who know they need the precision and magnetic strength it offers. Casual users will not see enough benefit to justify the premium price.

How to Choose the Best Magnetic Drill Press

Choosing the right magnetic drill press comes down to understanding your specific needs and matching them to the right combination of features. I have broken down the most important factors below to help you make the right call.

Magnetic Holding Force

The magnetic holding force determines how securely the drill attaches to the steel surface. This is measured in pounds of force (lbf) and typically ranges from about 2400 to 3100 lbf for the models on this list. Higher is always better for safety, especially if you drill overhead or on vertical surfaces. The CS Unitec MABasic 200 leads with 3080 lbf, while the ZELCAN and VEVOR models offer 2922 lbf. As a rule of thumb, 2800 lbf or higher gives you reliable holding on most common steel thicknesses.

Motor Power and Amperage

Motor power directly affects how quickly and cleanly the drill cuts through steel. Look for at least 1200 watts or 8 amps for serious steel fabrication work. The VEVOR 1550W models lead in raw wattage, while the DEWALT DWE1622K provides the best balance of power and precision with its 10-amp motor. If you only drill occasionally in thinner material, a 6-amp model like the Hougen HMD904 will serve you well.

Boring Diameter and Depth Capacity

The boring diameter tells you the largest hole the drill can make with an annular cutter. Most models on this list offer either 1.5 inches or 2 inches. If you drill larger holes for bolting structural steel, you need the 2-inch capacity found on the DEWALT, VEVOR models, and ZELCAN. For general fabrication work, 1.5 inches covers most common bolt and fastener sizes.

Drilling depth, or stroke length, determines how deep the drill can cut in a single pass. Look for at least 2 inches of travel for standard structural steel work. The Evolution EVOMAG42 leads with a 5-inch stroke length, which is useful for thicker materials.

Speed Settings and Control

Variable speed is important because different cutter sizes perform best at different RPMs. Larger cutters need slower speeds, while smaller cutters work better at higher speeds. The DEWALT DWE1622K offers a 2-speed gearbox, the VEVOR 1550W has 10-speed gears, and the ZELCAN provides stepless speed control. Single-speed drills like the CS Unitec MABasic 200 are fine if you mostly use one size of cutter.

Safety Features

Auto-stop lift-off detection is the single most important safety feature on a magnetic drill press. This system shuts the drill off if the magnet loses contact with the steel, preventing the drill from falling and causing injury. The Hougen HMD904, Hougen HMD900, and CS Unitec MABasic 200 all include this feature. If you drill overhead, this is non-negotiable.

Overload protection is another important safety feature that prevents the motor from burning out during extended use. Most models on this list include it, but it is worth confirming before you buy.

Weight and Portability

If you regularly move your drill between job sites or carry it up ladders, weight matters. The ZELCAN at 23.8 pounds is the lightest option, while the Hougen HMD900 at 27 pounds and Evolution S28MAG at 26 pounds are also easy to handle. The VEVOR 1550W at 39 pounds is the heaviest and least portable, though it compensates with raw power.

Included Accessories and Warranty

Some magnetic drill presses come with useful accessories that save you money. The VEVOR 1450W includes 6 annular cutters, the VEVOR 1300W comes with 11 drill bits, and the Evolution S28MAG includes a carry case and safety strap. Always check what is included before comparing prices, because buying these accessories separately adds up quickly.

Warranty coverage varies significantly. Evolution offers a 3-year warranty on the S28MAG, which is the best on this list. Most other brands offer 1-year coverage. Hougen stands out for their excellent customer support and technical assistance, which can be more valuable than a longer warranty period if something goes wrong.

FAQs

Final Thoughts on the Best Magnetic Drill Presses

After testing and comparing 10 models, the DEWALT DWE1622K remains my top recommendation for the best magnetic drill press overall. It delivers the right combination of power, versatility, and reliability that covers the widest range of users, from professional fabricators to serious DIYers. The 2-speed gearbox and quick change chuck system make it adaptable to almost any drilling task you will encounter.

For professionals who want the absolute best build quality, the Hougen HMD904 is worth the premium price. The USA-made construction, lift detector safety system, and outstanding manufacturer support make it a tool you can depend on for years. And for anyone on a budget, the VEVOR 1550W proves that you do not have to spend a fortune to get a capable magnetic drill press that handles light to medium duty work reliably.

Whatever model you choose, make sure the magnetic holding force matches your material thickness, and always check for auto-stop safety features if you plan to drill overhead. The best magnetic drill press is the one that matches your specific workload and keeps you safe while getting the job done.
