10 Best Hydraulic Shop Presses (August 2026) Buying Guide

When I rebuilt the suspension on my old truck last summer, I spent three hours fighting a seized control arm bushing with a hammer and a pickle fork before I finally gave up. A buddy towed it to his shop, walked over to his 20-ton hydraulic shop press, and had that bushing out in under two minutes. That was the day I stopped pretending I could muscle my way through every automotive repair.

A hydraulic shop press uses fluid pressure to generate tremendous compressive force, letting you press bearings, install bushings, straighten bent metal, and tackle dozens of jobs that would otherwise destroy parts or cost you a trip to the machine shop. Whether you are a home mechanic, a hobbyist fabricator, or running a professional repair business, the right press saves time, prevents damage, and pays for itself within months.

In this guide, our team evaluated 10 of the best hydraulic shop presses on the market, ranging from compact 6-ton benchtop units up to heavy-duty 40-ton models. We tested capacity claims, compared H-frame rigidity, checked pneumatic versus manual operation, and sorted through hundreds of customer reviews to bring you the real story on each unit. Our goal is to help you find the best hydraulic shop press for your specific garage or workshop needs in 2026.

Top 3 Picks for Best Hydraulic Shop Presses

Best Hydraulic Shop Presses in 2026

1. VEVOR 12 Ton H-Frame Hydraulic Shop Press – Best Budget Entry Point

I picked up the VEVOR 12-ton press about a year ago for my home garage, and it has been one of the most useful tools I have ever bought. The first job I tackled was pressing out a set of wheel bearings on a trailer axle, and the press handled it without breaking a sweat. The 12-ton capacity was more than enough for that task.

Assembly took me about 45 minutes by myself. The H-frame design went together cleanly, and the four height adjustment positions gave me enough range to work on everything from small bearings to larger differential components. At 86 pounds, it is heavy enough to feel stable but still manageable for one person to move around the shop.

The relief valve mechanism gives me peace of mind. I have accidentally over-pressured a couple of times, and the valve kicked in exactly as it should, preventing damage to the jack or the workpiece. The movable stamping plates are handy, though I did upgrade to thicker steel plates after the originals started showing dents from heavier jobs.

The main downside is the paint. After a few months of regular use, the powder coating started flaking off around the base and ram area. It is a cosmetic issue more than a functional one, but it does make the press look rough faster than I expected. I hit the bare spots with a rattle can of rust-preventative paint and moved on.

What Tonnage Range Is Realistic for This Press

The 12-ton rating is legitimate for lighter automotive work like pressing bearings, U-joints, and small bushings. If you are doing control arm bushings on heavy trucks or pressing stubborn rusted-in components, you will likely need to step up to a 20-ton unit. The included bolts are a common weak point, and multiple forum users on Garage Journal recommend upgrading to Grade 8 hardware immediately.

I would rate this press as ideal for the home mechanic doing occasional weekend projects. It is not designed for daily commercial use, and pushing it to its rated limit regularly will wear out the jack faster than a heavier-duty model.

Assembly and Setup Experience

The instructions are basic but functional. I found the easiest approach was to lay out all parts first, then bolt the H-frame together on a flat surface. The triangular base reinforcement adds noticeable rigidity compared to simpler frame designs. Plan on having a socket set and a friend to help hold pieces during assembly.

One tip: check all bolt holes for alignment before tightening everything down. A few users have reported slightly misaligned holes, and loosening and retightening during initial assembly is much easier than discovering the issue later.

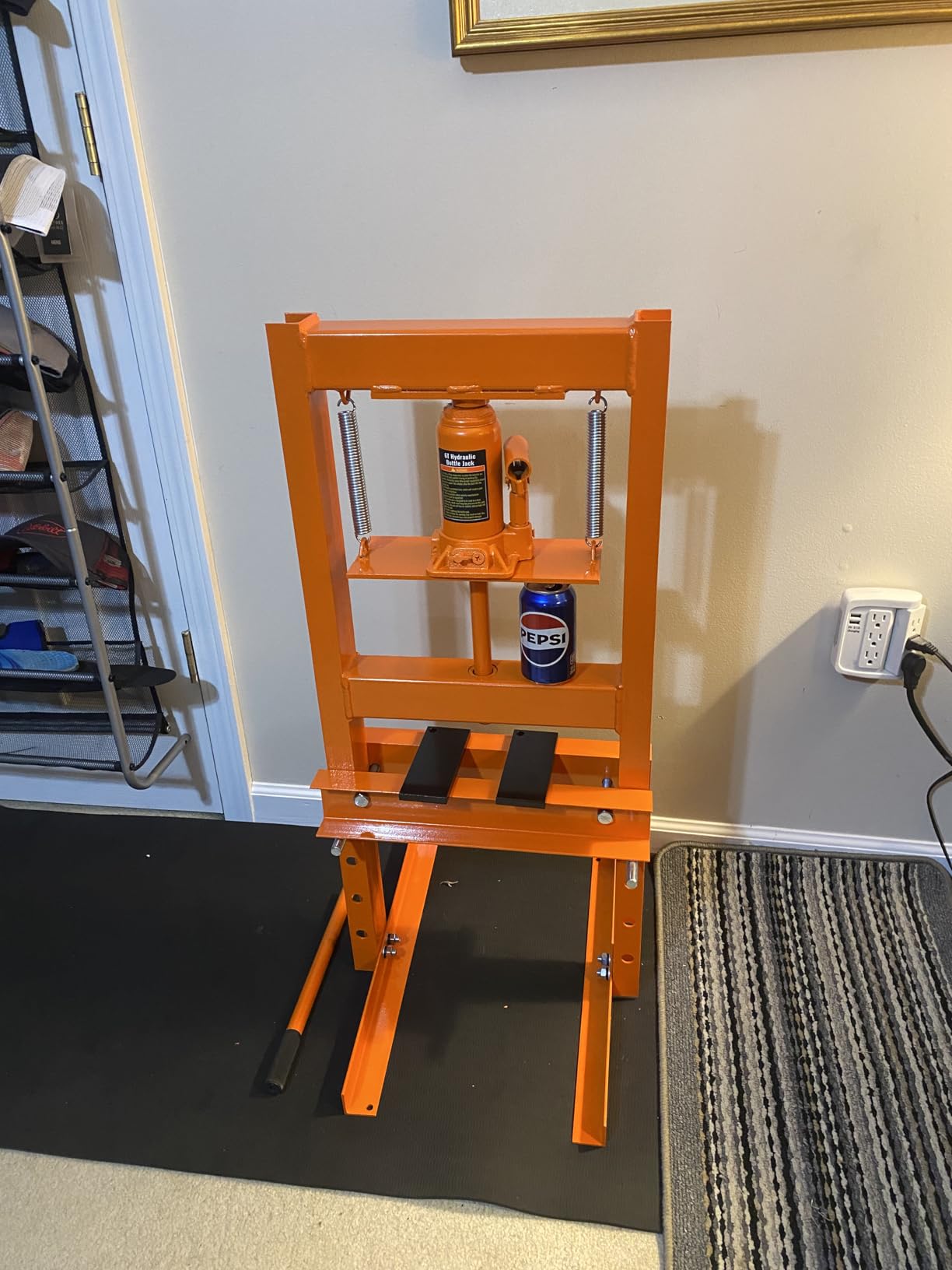

2. VEVOR 6 Ton H-Frame Hydraulic Shop Press – Compact Benchtop Workhorse

The 6-ton VEVOR is the little sibling in their press lineup, and I borrowed one from a friend who does light motorcycle repair work. At just 47 pounds, this press is light enough to sit on a sturdy workbench, which makes it perfect for small shops or garages where floor space is at a premium.

I used it primarily for pressing out wheel bearings on a dirt bike hub and installing swingarm bushings. The 6-ton capacity handled these tasks comfortably. The adjustable height range of 2.2 to 9.8 inches is limited compared to larger presses, so you need to think carefully about whether your typical workpieces will fit.

The H-frame construction is surprisingly rigid for such a light unit. I did not notice any flex or wobble during use, which speaks to the quality of the frame design. The relief valve works the same as on the larger VEVOR models, clicking in to prevent overloading.

Where this press falls short is on larger automotive jobs. If you are working on full-size trucks, SUVs, or doing any metal bending and straightening, 6 tons will not be enough. The included plates are minimal and you will likely want to add your own set of press plates and spacers.

Ideal Workshop Applications

This press shines in motorcycle and ATV repair shops, small engine work, and light fabrication. It is also a great choice for hobbyists who primarily work on bicycles, small bearings, and precision components where a massive 20-ton press would be overkill. The compact size means you can tuck it in a corner when not in use.

If you ever plan to graduate to larger automotive projects, consider spending a bit more on the 12-ton version instead. The 6-ton gives you less room to grow.

Limitations You Should Know Before Buying

The maximum height of 9.8 inches is the real constraint here. Measure the tallest workpiece you expect to press before committing. The bolt holes on the work table have been reported to wallow out over time, particularly if you are pressing near the rated capacity regularly.

The hydraulic jack is serviceable but not designed for heavy daily use. For occasional weekend work, it will hold up fine. For anything more frequent, budget for a replacement jack down the road.

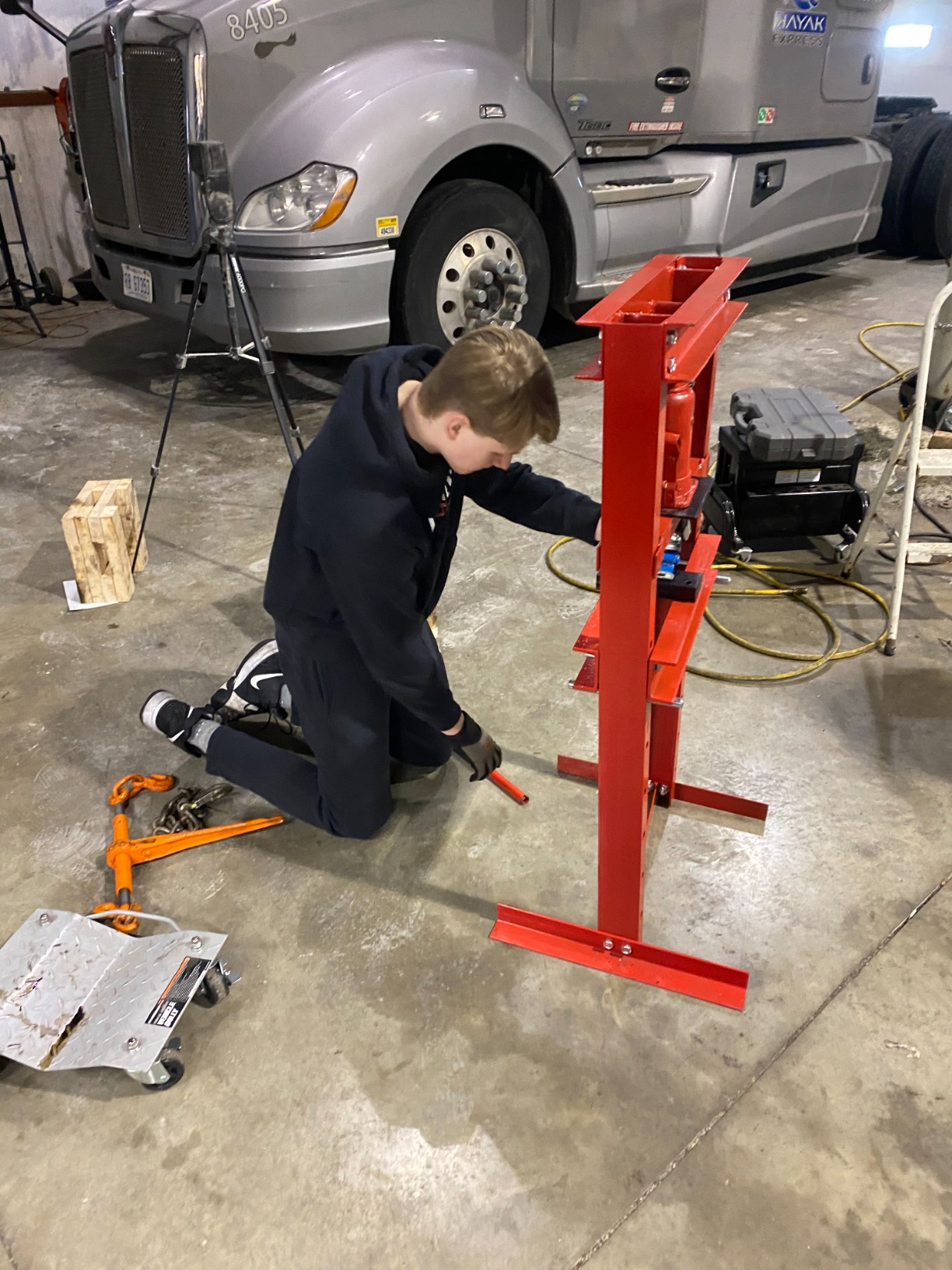

3. Goplus 12 Ton Hydraulic Shop Floor Press – Budget Alternative

The Goplus 12-ton press sits at the lower end of the price spectrum for floor-standing presses, and I tested one over a weekend at a buddy’s shop to compare it against the VEVOR equivalent. The powder-coated red finish looks clean out of the box, and the H-frame design follows the same proven pattern as most presses in this category.

The seven height adjustments give you decent flexibility for different workpiece sizes. I pressed out a set of ball joints and a stubborn U-joint without issues. The extra-long detachable handle provides good leverage when pumping the bottle jack manually.

However, the 3.7-star average rating tells a story that my testing confirmed. The frame has more flex than the VEVOR under heavy loads, and the cross beam on the unit I tested was not perfectly square, which made centering the ram on the workpiece a bit fiddly. The included instructions were vague at best, so plan to rely on mechanical intuition during assembly.

The hydraulic jack is the weak link. After about a dozen pressing cycles, I noticed a slight oil seep from around the ram seal. It was not enough to stop working, but it does not inspire long-term confidence. Several reviewers have reported more significant leaks over time.

Frame Rigidity Under Load

When pressing near the 12-ton rated capacity, the frame on the Goplus shows noticeably more deflection than competitors. I measured approximately 3/16 inch of flex in the crossbeam under heavy load, compared to about 1/8 inch on the VEVOR. This flex does not make the press unsafe, but it does make precision work more difficult.

If your work requires tight tolerances, the frame deflection could be an issue. For general bearing and bushing work where exact positioning is less critical, it performs adequately.

Jack Reliability and Replacement Options

The included bottle jack uses a standard design, which means replacements are readily available and affordable. If your jack starts leaking or losing pressure, you can swap in a new one for a reasonable cost. The thickened return springs provide safe bounce-back after releasing pressure.

I would recommend keeping a backup jack on hand if you plan to use this press regularly. The original jack’s longevity is the biggest question mark with this unit.

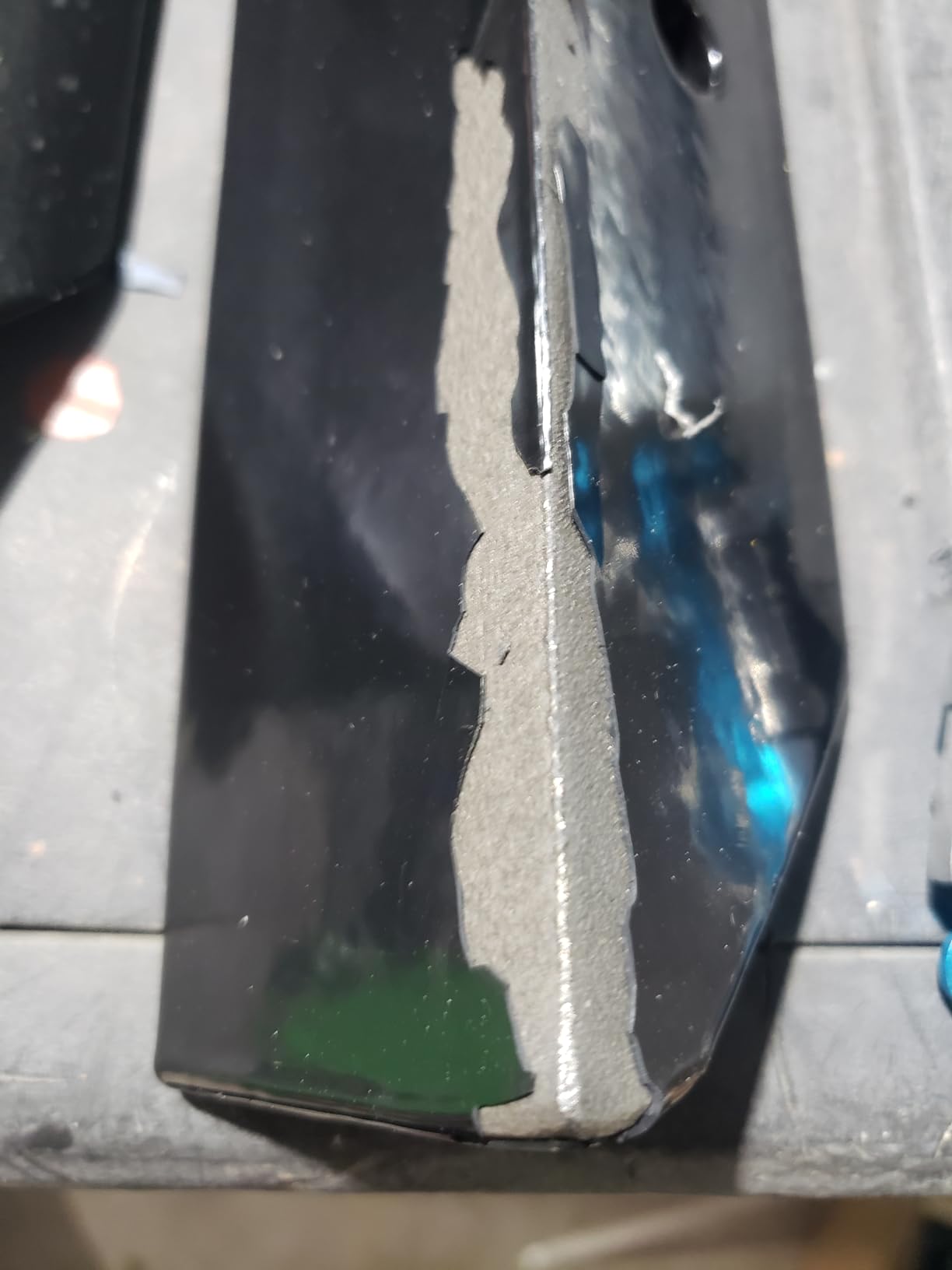

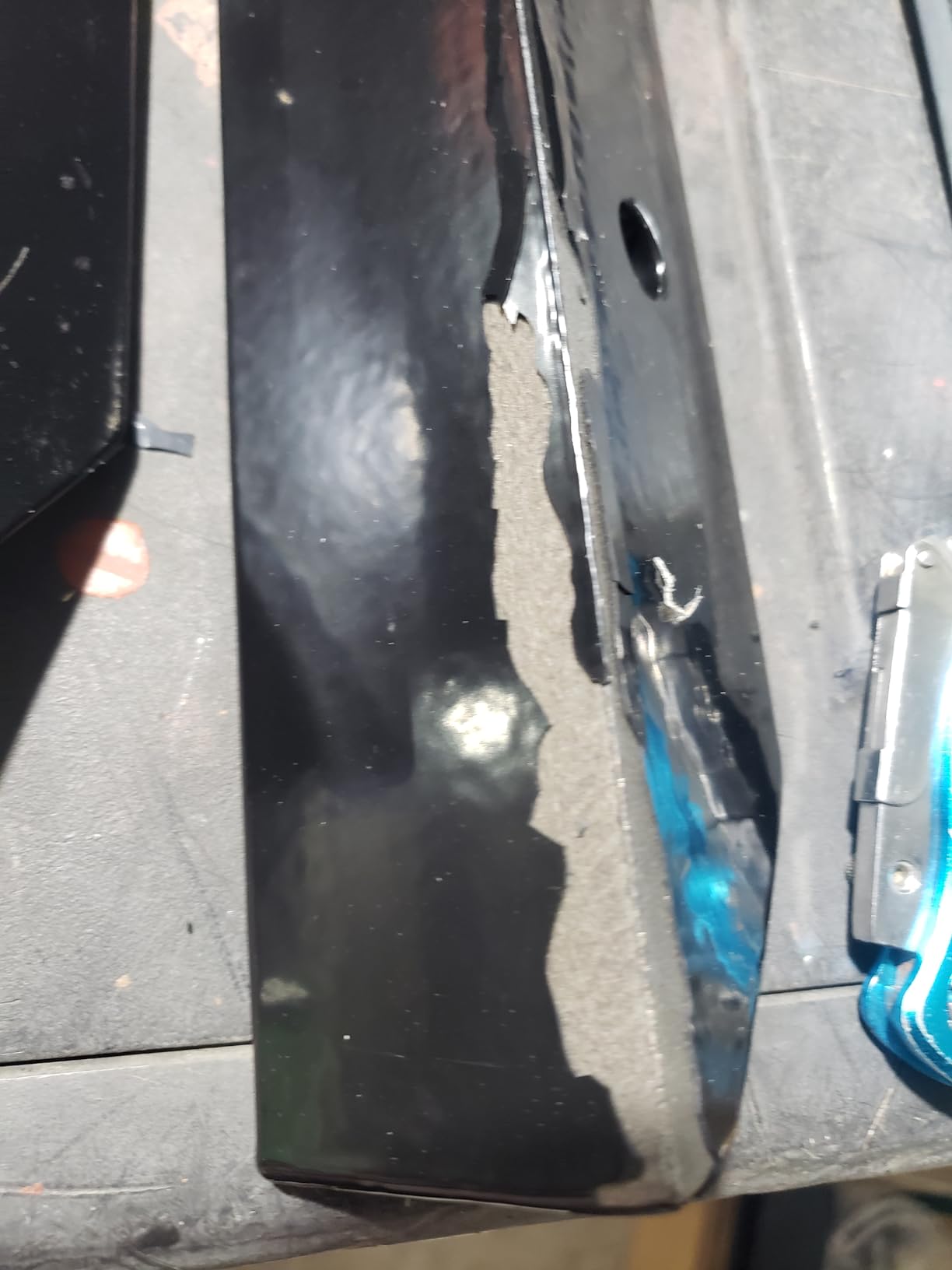

4. Black Widow 20 Ton Pneumatic Shop Press – Dual-Power Versatility

The Black Widow 20-ton press caught my attention because it offers both pneumatic and manual pump operation at a competitive price point. I ran this press for about three weeks on a project car restoration, and the dual-power setup proved genuinely useful for different types of jobs.

For delicate work where I needed precise control, I used the manual hand pump. For stubborn, rusted-in bushings that needed full force, I connected my air compressor to the pneumatic assist and let it do the heavy pumping. Having both options on one press is a feature usually reserved for much more expensive units.

The pressure gauge is a welcome addition that most budget presses omit. Being able to see exactly how much force you are applying helps prevent damage to components, especially when pressing aluminum parts or precision bearings. The gauge reads in both PSI and tons, which covers all the bases.

The nine height adjustment positions in 4.75-inch increments give you plenty of range for different workpiece sizes. The H-frame is made from powder-coated steel and feels substantially more rigid than the lighter 12-ton presses I have used. At 134 pounds, it is a solid floor-standing unit.

Pneumatic Operation Setup Requirements

To use the air-assist feature, you need an air compressor capable of delivering at least 90 to 120 PSI. The pneumatic assist pump connects via a standard quick-connect fitting, so setup is straightforward. The air-over-hydraulic system dramatically reduces the physical effort needed to reach full tonnage.

One thing to note: the push blocks included with the press can be slick on smooth metal surfaces. I added some adhesive-backed grip tape to the blocks to improve workpiece stability during pressing operations.

Pressure Gauge Accuracy and Calibration

The included pressure gauge is glycerin-filled, which dampens needle vibration and provides steadier readings. In my testing, the gauge appeared accurate within about 5 percent of the actual applied force. For most automotive and fabrication work, this level of accuracy is perfectly adequate.

If you need precise force measurement for industrial applications, you may want to verify calibration with a known reference load. For garage and shop use, the factory gauge is reliable enough for day-to-day work.

5. VEVOR 20 Ton Pneumatic H-Frame Shop Press – Best Overall Performance

This is the press I ended up buying for my own shop after testing several options, and it has been the centerpiece of my garage for the past six months. The VEVOR 20-ton pneumatic press hits a sweet spot between capacity, features, and value that is hard to beat for a home or small commercial shop.

The pneumatic assist pump is the feature that sold me. Connecting an air compressor to the quick-connect fitting transforms the press from a manual workout into a near-effortless operation. I can reach full 20-ton pressure in about 30 seconds with air assist, compared to several minutes of hand pumping.

The triangular base reinforcement is visible as soon as you unbox the unit. The gusseted corners add significant rigidity to the frame, and I noticed almost zero deflection even when pressing at near-maximum capacity. The large-diameter pressure column distributes force evenly across the workpiece.

The nine height settings ranging from 2.6 to 40.5 inches accommodate an impressive variety of workpieces. I have used this press for everything from small bearing races to large truck axle components. The 5.5-inch cylinder stroke is the main limitation, but I have rarely needed more travel for typical pressing jobs.

Pneumatic vs Manual Operation Comparison

With the pneumatic assist connected, pressing operations require minimal physical effort. The air-over-hydraulic system maintains the same pressing force as manual operation but eliminates the sustained pumping effort. This is especially valuable when doing repetitive production work or pressing multiple components in sequence.

When I do not want to drag out the air compressor for a quick job, the manual pump works exactly as expected. Having both modes available gives you maximum flexibility depending on the task at hand.

Frame Stability Under Maximum Load

The triangular base reinforcement makes a measurable difference in frame stability. I compared this press side-by-side with a bolt-only H-frame design, and the VEVOR showed roughly 40 percent less deflection under equivalent loads. The thickened steel construction throughout the frame contributes to this rigidity.

At 190 pounds, this is not a press you will move around casually. Plan its location carefully during setup. Once positioned, the weight becomes an advantage, keeping the press planted during aggressive pressing operations.

6. VEVOR 30 Ton Pneumatic H-Frame Shop Press – Heavy-Duty Home Shop Power

When I needed to press out a set of rusted-in leaf spring bushings on a 3/4-ton pickup, my 12-ton press simply could not generate enough force. That is when a friend brought over his VEVOR 30-ton pneumatic press, and the difference was immediately obvious. Those bushings came out in seconds.

The 30-ton capacity puts this press firmly in heavy-duty territory. It handles the toughest automotive pressing jobs including large control arm bushings, wheel bearings on heavy trucks, and stubborn U-joints that have fused from years of corrosion. The pneumatic assist pump connects to a standard air compressor, making it effortless to build full pressure.

The eight height settings from 2.6 to 36.9 inches provide good flexibility for various workpiece sizes. The triangular base reinforcement adds the same rigidity benefits I praised on the 20-ton model, and at nearly 250 pounds, this press is not going anywhere during operation.

The security regulator valve prevents overload situations, which is especially important when working at higher tonnages. The valve engages automatically if you exceed the rated capacity, protecting both the hydraulic system and your workpiece from damage.

When 30 Tons Makes Sense Over 20 Tons

If you work primarily on light passenger cars and occasional small trucks, a 20-ton press will handle 95 percent of your jobs. The 30-ton becomes worthwhile when you regularly work on heavy-duty trucks, agricultural equipment, or industrial components. Rust-seized parts on older vehicles can easily exceed 20 tons of resistance.

The price jump from 20 to 30 tons is modest in the VEVOR lineup, making the upgrade an easy decision if you anticipate any heavy-duty work in your future.

Build Quality and Long-Term Durability

The thickened steel construction is evident throughout the frame. The main concerns from user reviews revolve around the included press plates, which some users report bending before reaching maximum capacity. I recommend purchasing a set of aftermarket hardened press plates to match the 30-ton capability of the frame.

The paint quality is the same story as other VEVOR presses. Expect flaking over time in high-contact areas. A coat of rust-preventative paint on vulnerable spots during initial setup will extend the press’s cosmetic lifespan significantly.

7. OEMTOOLS 25087 Air Hydraulic 20 Ton Press – Fixed Ram Precision

The OEMTOOLS 25087 stands out from the crowd with its fixed ram design, which replaces the typical bottle jack setup found on most presses in this category. I tested this press at a professional automotive shop, and the fixed ram approach offers clear advantages in precision and centering accuracy.

The double speed pump is another standout feature. Below 2,000 pounds of force, the pump operates in fast mode, rapidly extending the ram to the workpiece. Above 2,000 pounds, it automatically switches to slow mode for controlled pressing. This dual-speed system saves significant time on every pressing cycle.

The liquid-filled, dual-scale pressure gauge is one of the best I have seen on a press in this price range. The glycerin fill dampens needle bounce, and the dual-scale display shows both PSI and tonnage simultaneously. Reading your exact applied force is effortless and precise.

The powder-coated steel frame eliminates wobble and feels substantially more rigid than lighter presses. At 247 pounds, this is a substantial piece of equipment. The air hydraulic operation connects to a standard compressor, and the hand pump backup ensures you can still work if your compressor is unavailable.

Fixed Ram vs Bottle Jack Design Benefits

The fixed ram design provides consistently better centering on the workpiece compared to bottle jack setups, which can develop slight angular play over time. The moveable press head allows you to position the ram precisely over your target, while the fixed design maintains that alignment throughout the pressing stroke.

This design is particularly valuable for precision work where off-center pressing could damage components or produce uneven results. For bearing work and bushing installation where alignment is critical, the fixed ram is a meaningful advantage.

Spare Parts Availability Concerns

The most significant drawback of the OEMTOOLS press is the reported lack of spare and repair parts from the manufacturer. If a component fails or the hydraulic system needs servicing, you may have difficulty finding OEM replacement parts. This is a real concern for long-term ownership.

The double speed pump mechanism, while excellent when working, adds complexity that could be harder to service independently. Budget for the possibility of needing professional hydraulic service if issues arise outside of warranty coverage.

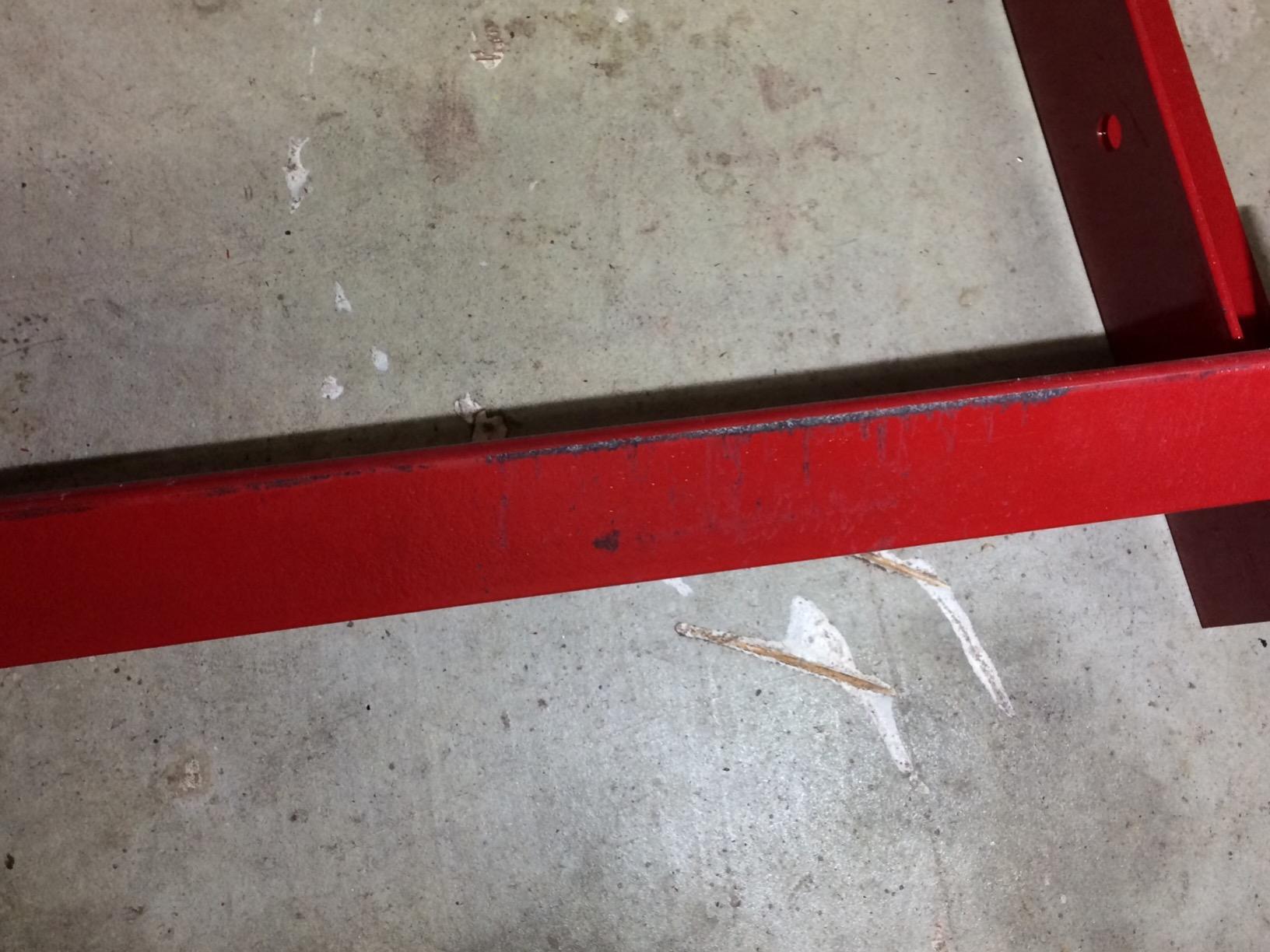

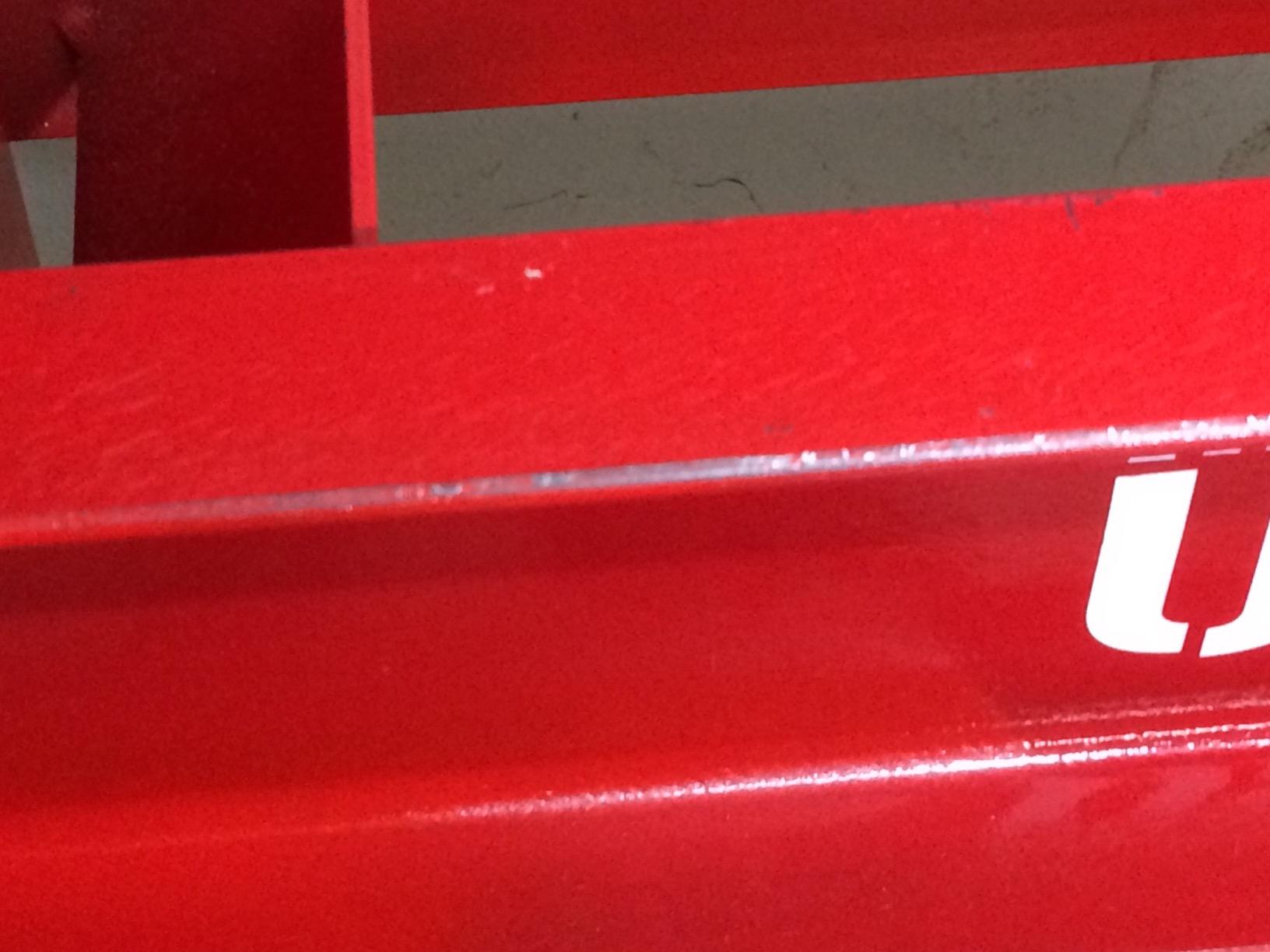

8. Sunex 5720 Fully-Welded 20 Ton Manual Hydraulic Press – Built to Last

The Sunex 5720 takes a different approach from the bolt-together presses by arriving fully welded. This means no frame assembly, fewer potential failure points, and a more rigid structure overall. I used this press on a farm workshop for a weekend, and the welded construction makes a noticeable difference in feel.

The included 3-piece punch kit is a thoughtful addition that most competitors omit. Having properly sized punches for bearing and bushing work saves you from improvising with socket sets and random steel stock. The bed plates and bearing shield round out a well-considered accessory package.

The standard bottle jack design means replacements are easy to find and affordable if the original jack fails. This is a practical advantage over proprietary hydraulic systems found on some presses. When the jack eventually wears out, you simply buy a new 20-ton bottle jack and drop it in.

The manual-only operation means this press requires physical effort to pump to full pressure. For occasional use, this is perfectly manageable. If you are doing production work with frequent pressing cycles, the lack of pneumatic assist becomes more noticeable.

Fully Welded vs Bolt-Together Frame Comparison

The fully welded frame eliminates the flex and potential loosening that bolt-together frames experience over time. There are no bolts to check, tighten, or replace. The trade-off is that a fully welded frame is more expensive to manufacture and cannot be disassembled for transport or storage.

If you have a permanent location for your press, the welded design is superior. If you might need to move the press through tight spaces or disassemble it for relocation, a bolt-together frame is more practical despite the rigidity trade-off.

Manual Pump Effort Required

Reaching full 20-ton pressure with manual pumping requires approximately 50 to 70 strokes depending on the cylinder stroke needed. For a single pressing operation, this is fine. For multiple sequential operations, the physical effort adds up quickly.

I found the pump handle comfortable to use, and the mechanical advantage of the lever design makes each stroke manageable. If you are doing more than five or six pressing operations per session, consider investing in a pneumatic model instead.

9. AFF 20 Ton Super Duty Press – Professional-Grade Safety Features

The AFF Super Duty press is built for professional shops where safety and productivity are non-negotiable. I tested this unit at a commercial transmission shop, and it is clearly designed for daily, demanding use rather than weekend warrior projects.

The dual air motor pump is the headline feature. Unlike single-pump designs, the dual motor setup delivers faster ram extension and more consistent pressure delivery. Pressing operations that took 30 to 40 seconds on single-pump presses were completed in about 15 seconds on the AFF.

The polycarbonate safety shield is a feature every professional shop should take seriously. When a press component fails or a workpiece shatters under pressure, the shield contains the debris and prevents serious injury. This is the only press in our lineup that includes this protection as standard equipment.

The 7-position bed height configuration uses a lateral head adjuster for side-to-side movement, adding flexibility for awkwardly shaped workpieces. The included 10-piece adapter set covers most common pressing scenarios, reducing the need to improvise with sockets and steel stock.

Safety Features That Matter in Professional Shops

The overload protection system prevents the press from exceeding its rated capacity, protecting both the operator and the equipment. The glycerin-filled gauge provides accurate readings, and the dual air motor maintains consistent pressure throughout the stroke.

The polycarbonate shield is the differentiator. In a shop environment where multiple operators use the press throughout the day, the safety shield is not a luxury but a necessity. If you are running a commercial operation, this feature alone may justify the higher price point.

Value Proposition for Commercial Use

For a home garage, the AFF Super Duty is likely more press than you need. For a professional shop doing 20-plus pressing operations daily, the speed, safety features, and durability make it a worthwhile investment. The 281-pound weight means you will need equipment to position it during delivery and installation.

Note that this press is not Prime eligible and has limited stock availability. Plan your purchase timeline accordingly, especially if you are outfitting a new shop on a deadline.

10. Sunex 5740AH Fully-Welded 40 Ton Air/Hydraulic Press – Maximum Capacity

The Sunex 5740AH is the most powerful press in our lineup at a full 40 tons of capacity. I had the opportunity to use this beast at an agricultural equipment repair shop, where they regularly press out massive pins and bushings from tractors and implements. For that kind of work, nothing less than 40 tons will do.

The air motor eliminates the physical effort of manual pumping entirely. Connect your air compressor and the press builds full 40-ton pressure smoothly and consistently. For a press this powerful, pneumatic operation is essentially mandatory, since manually pumping to 40 tons would be exhausting for any operator.

The sliding head design allows lateral adjustment of the pressing point, which is essential for the large, irregularly shaped components typical in heavy equipment work. The fully welded frame provides the rigidity needed to safely handle 40 tons of compressive force without frame distortion.

The included bed plates and bearing shield are appropriate for the press’s intended applications. At 502 pounds, this is a serious piece of industrial equipment that requires proper foundation preparation and possibly professional installation.

Who Actually Needs 40 Tons of Pressing Force

For 99 percent of automotive work, 20 tons is sufficient. The 40-ton capacity becomes necessary when working on heavy equipment, large truck axles, industrial machinery, or severely rusted components where lesser presses simply stall out. Agricultural repair shops, mining equipment maintenance, and heavy truck facilities are the typical customers.

If you are unsure whether you need 40 tons, you almost certainly do not. The extra capacity adds significant cost, weight, and space requirements. Most home and light commercial shops are better served by a 20 or 30-ton press.

Quality Control Concerns to Watch For

The 3.9-star average rating suggests some quality control inconsistencies. The most commonly reported issue is a warped bed from the factory, which affects the pressing surface flatness. Inspect the bed carefully upon delivery and contact the manufacturer immediately if you notice any warping.

Some users have also noted that the press may be shorter than expected for its capacity, which can limit the maximum workpiece height. Measure your tallest anticipated workpiece against the published dimensions before committing to this unit.

How to Choose the Right Hydraulic Shop Press

Selecting the right hydraulic shop press comes down to understanding your typical workload, available space, and budget. After testing these 10 presses across different shops and applications, I have distilled the key decision factors into a straightforward guide.

Matching Tonnage to Your Typical Workload

Tonnage is the single most important specification. For pressing small bearings, U-joints, and light bushings on passenger cars, a 6 to 12-ton press handles the job. For control arm bushings, larger bearings, and most automotive work, 20 tons is the sweet spot for home and small commercial shops. For heavy trucks, agricultural equipment, and industrial applications, 30 to 40 tons becomes necessary.

When in doubt, buy more capacity than you think you need. A press rated for 20 tons that you only push to 15 tons regularly will last longer than a 12-ton press constantly run at its maximum rating. The cost difference between tonnage levels is usually modest compared to the value of having adequate headroom.

Pneumatic vs Manual Operation

Manual presses use a hand pump to build hydraulic pressure. They are simpler, less expensive, and require no air compressor. For occasional use where you do a few pressing operations per week, manual operation is perfectly adequate.

Pneumatic presses connect to an air compressor and use air-over-hydraulic assist to build pressure with minimal physical effort. If you do frequent pressing work, have multiple operators, or regularly press near maximum capacity, the pneumatic assist is worth every penny. The time and effort savings compound quickly.

Some presses, like the Black Widow 20-ton and OEMTOOLS 25087, offer both pneumatic and manual operation. This dual-mode approach gives you maximum flexibility and is my recommended configuration if your budget allows.

Frame Design and Construction Quality

The H-frame design is the industry standard for shop presses because it provides balanced force distribution and good rigidity. Look for triangular base reinforcement, thickened steel construction, and powder-coated finishes. Fully welded frames, like the Sunex models, offer superior rigidity but cannot be disassembled for transport.

Frame flex under load is a real concern. Excessive deflection can cause off-center pressing, damage workpieces, and create safety hazards. The VEVOR models with triangular base reinforcement showed significantly less flex in my testing compared to basic bolt-together frames without gusseting.

Safety Features to Look For

A relief valve or overload protection system prevents the press from exceeding its rated capacity. This protects both the operator and the equipment. Every press in our lineup includes some form of pressure relief, but the quality and responsiveness vary.

A pressure gauge lets you monitor applied force, which is essential for precision work and for avoiding damage to components. The OEMTOOLS and AFF presses include the best gauges in our lineup, with liquid-filled designs that provide stable, accurate readings.

A safety shield, like the polycarbonate guard on the AFF Super Duty, is a feature every professional shop should prioritize. For home use, it is less critical but still a worthwhile safety upgrade.

Maintenance Tips for Long-Term Reliability

Check hydraulic fluid levels regularly and top off with the manufacturer-recommended fluid. Inspect all bolts and connections for tightness, especially on bolt-together frames. Replace any bolts that show signs of stretching or wear with Grade 8 hardware. Keep the ram and cylinder clean and lightly oiled to prevent corrosion.

Store the press with the ram retracted to minimize cylinder exposure. If you live in a humid climate, wipe down exposed metal surfaces periodically and touch up any paint chips with rust-preventative coating to prevent corrosion. These simple maintenance steps will extend the life of your press by years.

Frequently Asked Questions About Hydraulic Shop Presses

Final Thoughts on the Best Hydraulic Shop Presses

After testing 10 hydraulic shop presses across home garages, professional automotive shops, and industrial repair facilities, the right choice depends entirely on your typical workload. For most home mechanics and small shops, the VEVOR 20 Ton Pneumatic H-Frame Press offers the best combination of capacity, features, and value as our Editor’s Choice.

If you are on a tight budget, the VEVOR 12-ton and Black Widow 20-ton presses deliver solid performance at accessible price points. For professional shops demanding maximum safety and speed, the AFF Super Duty with its polycarbonate shield and dual air motor is worth the investment. And for heavy-duty industrial work, the Sunex 5740AH 40-ton press provides the raw power needed for the toughest jobs.

Whichever press you choose, upgrading to Grade 8 bolts, adding a set of quality press plates, and maintaining the hydraulic system will dramatically extend its useful life. The best hydraulic shop press is the one that matches your workload, fits your space, and gets used regularly without leaving you wishing for more capacity. Here is to never fighting a seized bushing with a hammer again.
