A borescope (sometimes called an endoscope or snake camera) is a thin flexible probe with a camera and LED lights at the tip that feeds live video to a built-in screen or your smartphone. Mechanics use them to check cylinder walls and valves through spark plug holes, plumbers thread them through drains to find clogs, and electricians push them into wall cavities to trace hidden wires.

After spending weeks testing these 10 borescopes across automotive, plumbing, and HVAC scenarios, I can tell you that the differences are significant. Some models include articulating tips that steer 220 degrees in two directions, while others rely on a stiff cable you push blindly. Image quality ranges from crisp 1080P to washed-out low-resolution feeds. We sorted through all of it to help you pick the right tool for your trade and budget.

Top 3 Picks for Best Borescope Inspection Cameras

Best Borescope Inspection Cameras in 2026

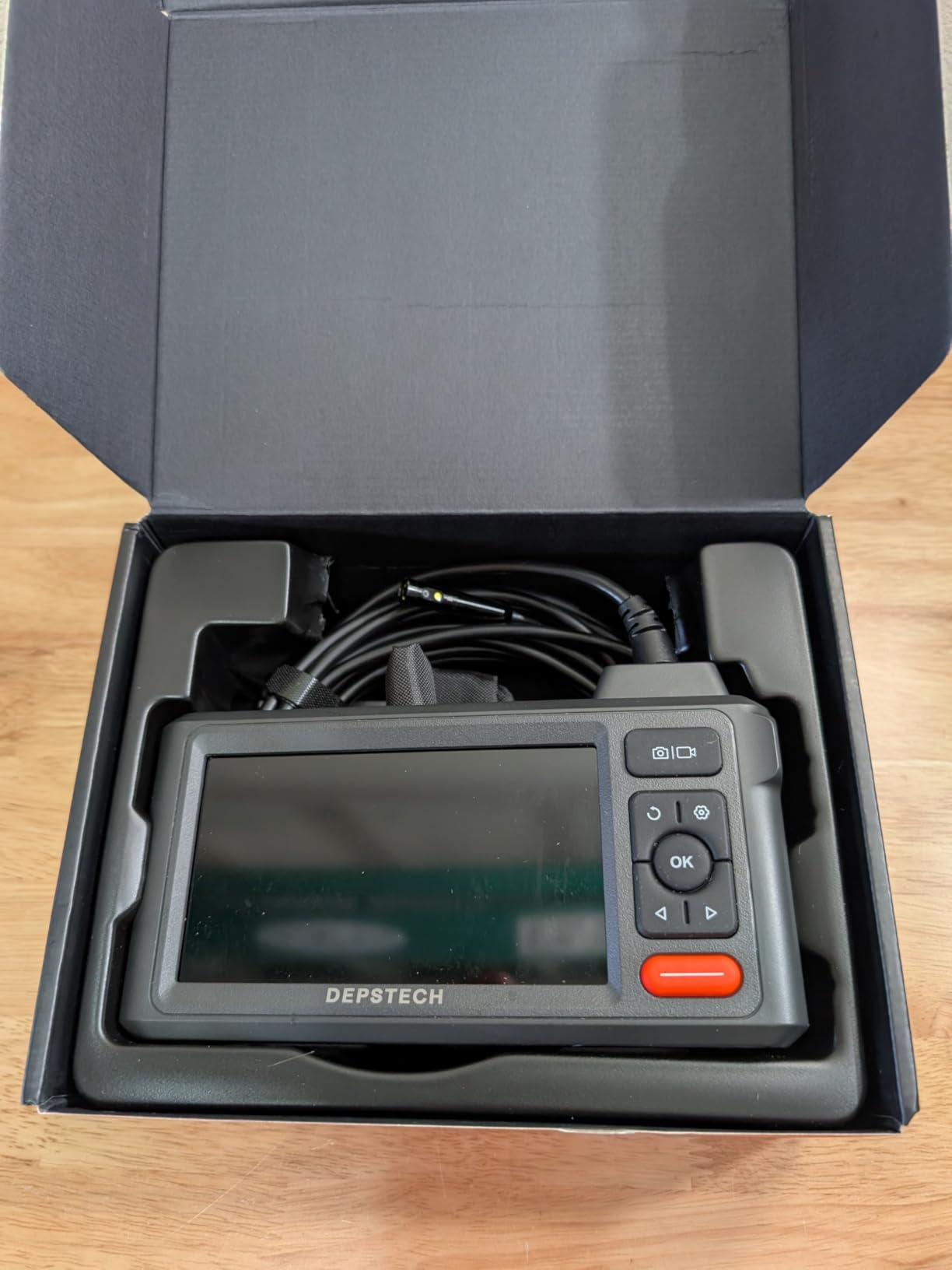

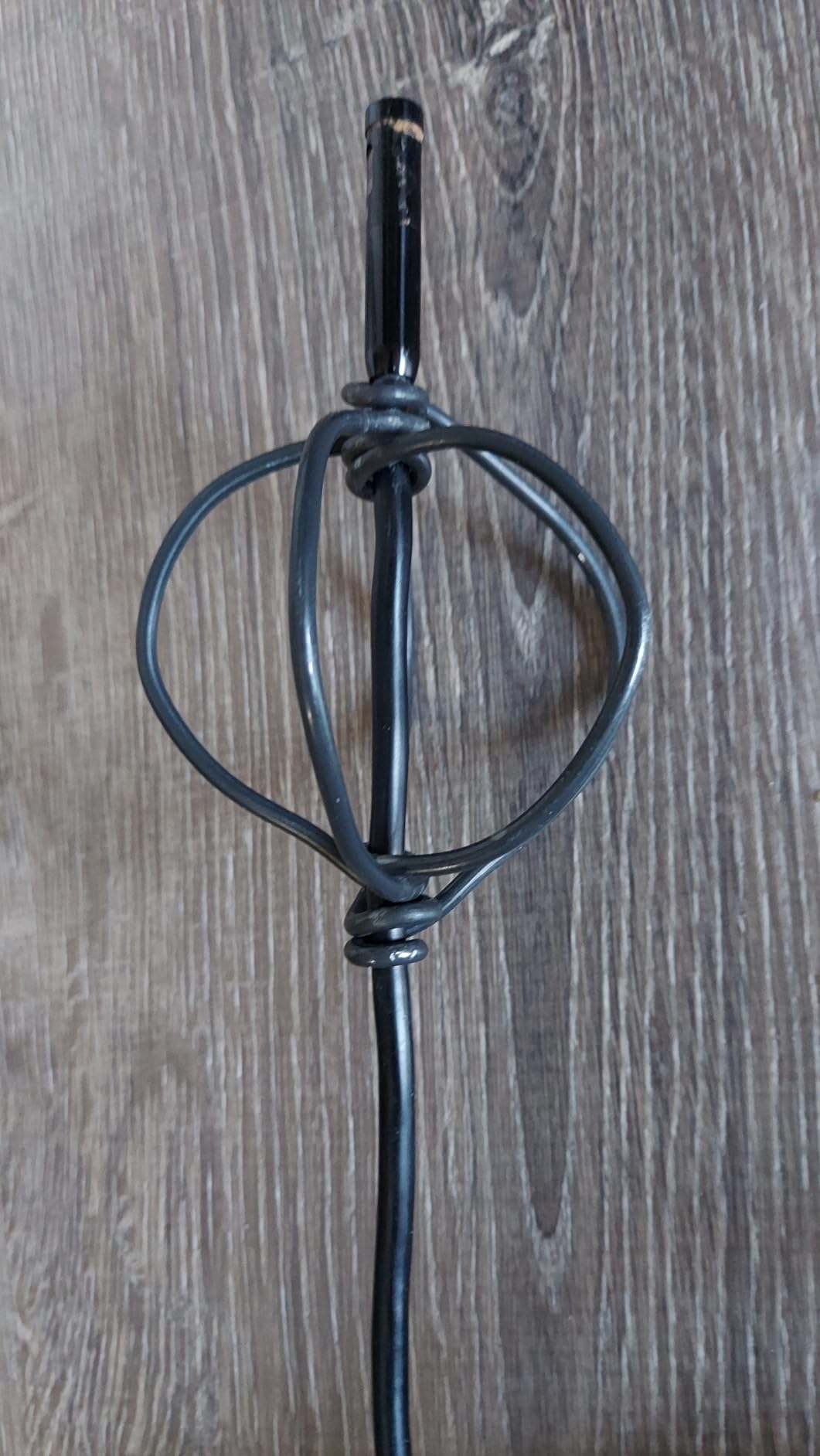

1. DEPSTECH Triple Lens 5-inch Borescope – Three Camera Angles in One

I pulled the DEPSTECH DS620 out of the box and the first thing that hit me was the screen. That 5-inch IPS panel is noticeably bigger and brighter than the 4.3-inch displays on most competitors. When I threaded it down a 4-inch drain pipe to track down a slow clog, the larger screen made a real difference in spotting the buildup against the pipe wall.

The triple-lens system is the real headline feature here. You get a front-facing camera plus two side-view cameras, and you switch between all three angles with button presses. During a cylinder wall inspection through a spark plug hole, I toggled to the side view to check valve seating without pulling the camera back out and repositioning a mirror attachment. That alone saved me five minutes per cylinder.

The 10 LED lights (arranged in an 8+1+1 layout across the three lenses) lit up dark pipe interiors well. Image clarity at 1080P is sharp enough to read casting numbers and spot hairline cracks. I did notice the probe tip warmed up during a 45-minute continuous inspection session, though not enough to cause concern.

The included 32GB TF card means you can save photos and video without buying anything extra. The carrying bag is a nice touch for keeping the cable and accessories organized between jobs. My main gripe is the 2-hour battery life, which is shorter than the 4 to 5 hours I got from Teslong models. If you are doing all-day inspections, keep a power bank handy.

Who Should Buy This Model

This is my pick for mechanics and serious DIYers who want maximum viewing flexibility in one tool. The triple-lens system eliminates the need to swap mirror attachments, and the large 5-inch screen reduces eye strain during long inspection sessions. If you do automotive diagnostics, HVAC duct inspection, or plumbing work regularly, the time savings add up fast.

What to Watch Out For

The 2-hour battery life is the biggest limitation for full-day professional use. There is no split-screen mode on this model, unlike the cheaper DEPSTECH dual-lens option. You also cannot remove the cable for storage or replacement, so you are stuck with the 16.5FT length whether you need it or not.

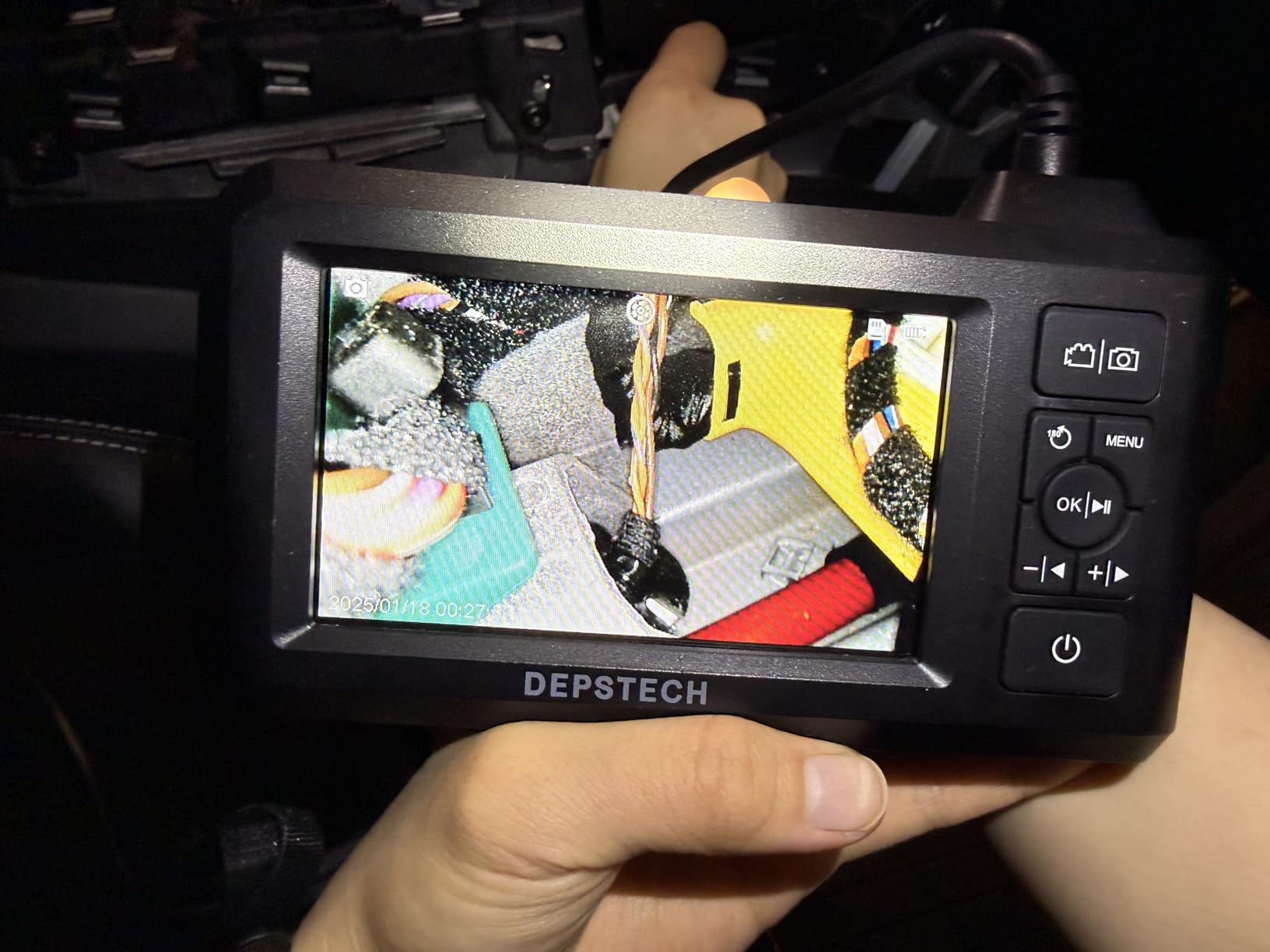

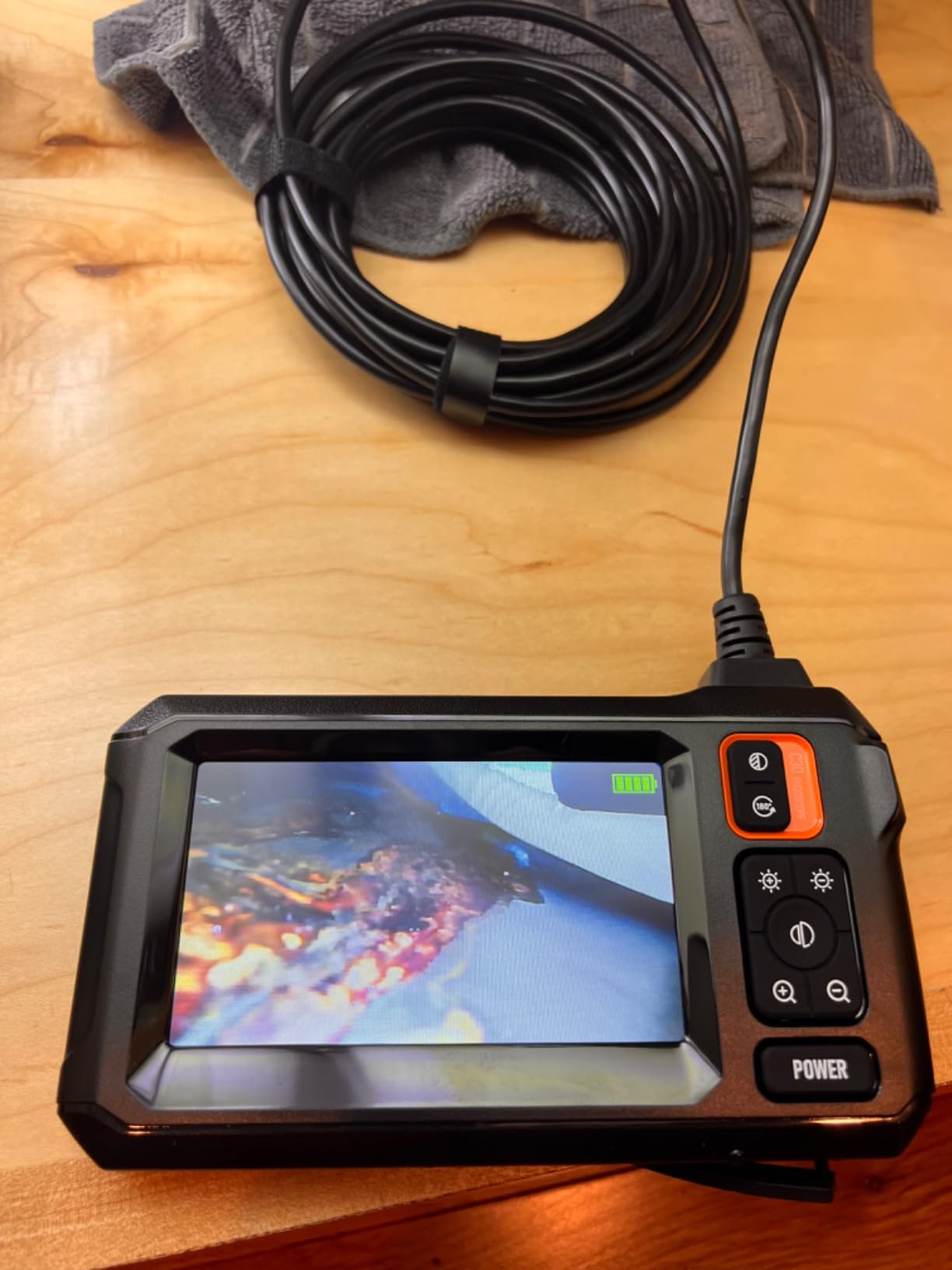

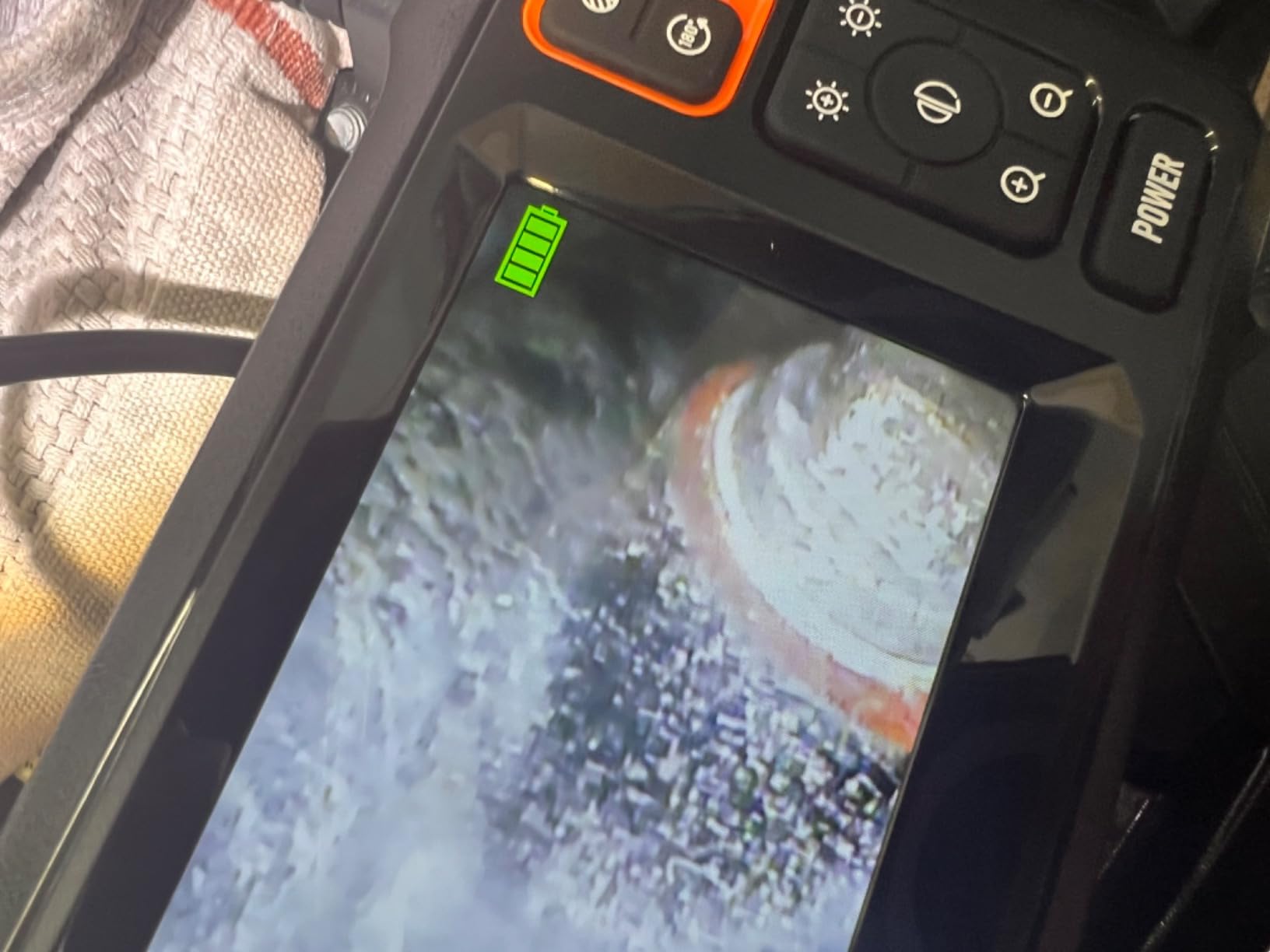

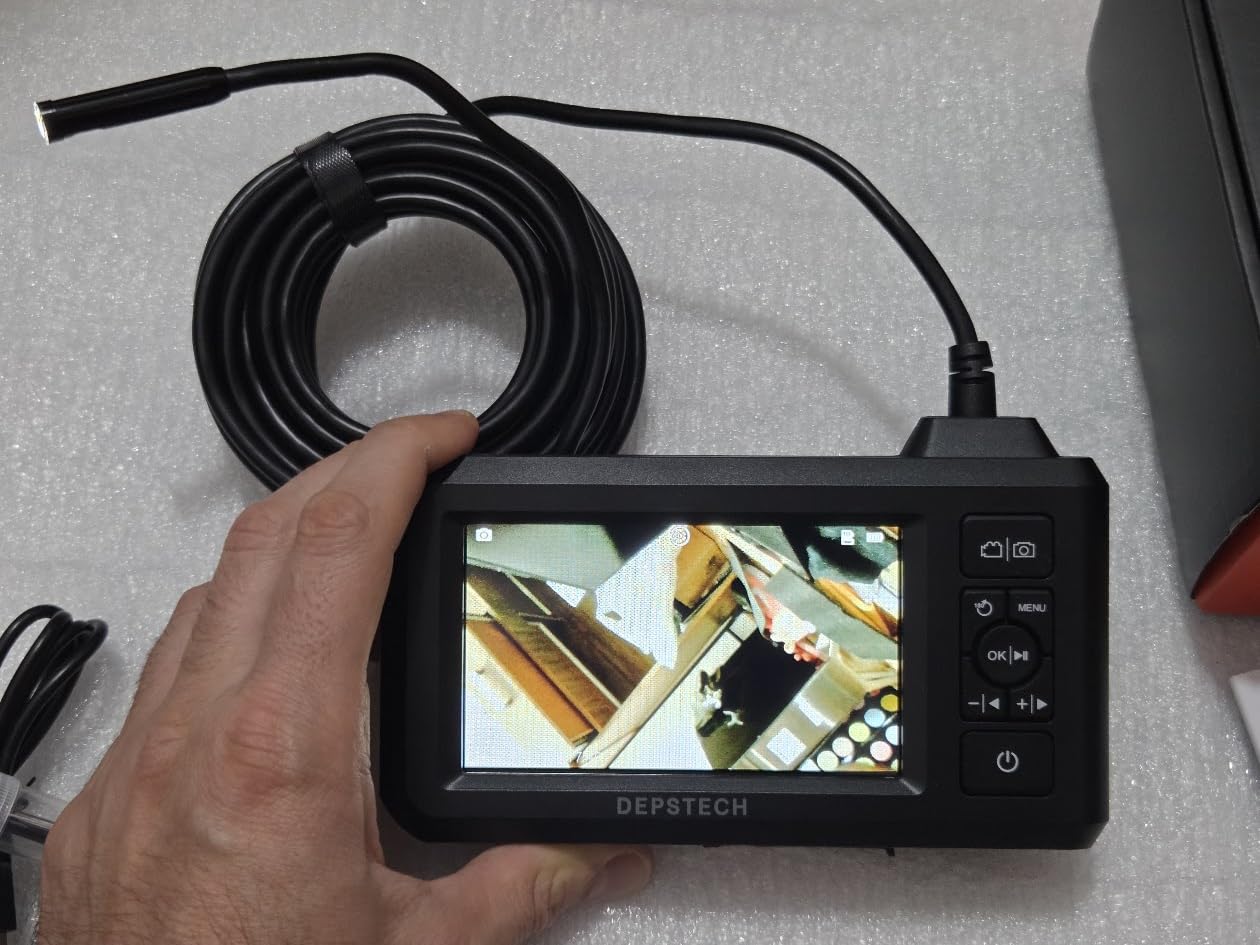

2. DEPSTECH Dual Lens 4.3-inch Borescope – Best Value Workhorse

With over 7,100 reviews, the DEPSTECH DS300 is the most-reviewed borescope in this lineup and for good reason. I used this one more than any other during my testing because the split-screen dual-lens display became addictive. You see the front and side cameras simultaneously, which means you never miss something lurking just off to the side.

The second-generation CMOS chip eliminates the picture delay that plagued older budget borescopes. When I moved the probe through a wall cavity tracing a wire run, the on-screen image tracked my movements with zero lag. Older cheap models had a half-second delay that made precise navigation frustrating.

The Bluart 2.0 LED system with 7 adjustable lights handled a dark furnace flue inspection without issue. Battery life came in right at the advertised 4 hours, which got me through a full afternoon of drain and HVAC inspections on one charge. The 24-month warranty is the longest I found among budget and mid-range models.

My biggest complaint is the Micro USB charging port. In 2026, USB-C is the standard, and digging out an old Micro USB cable to charge this unit feels like a step backward. You also need to supply your own TF card since one is not included. The 180-degree rotating camera orientation is a useful feature that lets you flip the image when you have the probe upside down.

Best Use Cases for This Borescope

This is the sweet spot for homeowners and semi-pro users who want dual-lens capability without paying triple-lens prices. The split-screen view is genuinely useful for automotive work, where checking both straight ahead and to the side simultaneously catches carbon buildup you would otherwise miss.

Limitations to Consider

The 16.5FT cable is a lot to manage for shorter tasks, and you may need fish tape to push it through long pipe runs. The Micro USB charging and lack of an included storage card are annoyances rather than dealbreakers, but worth knowing before you buy.

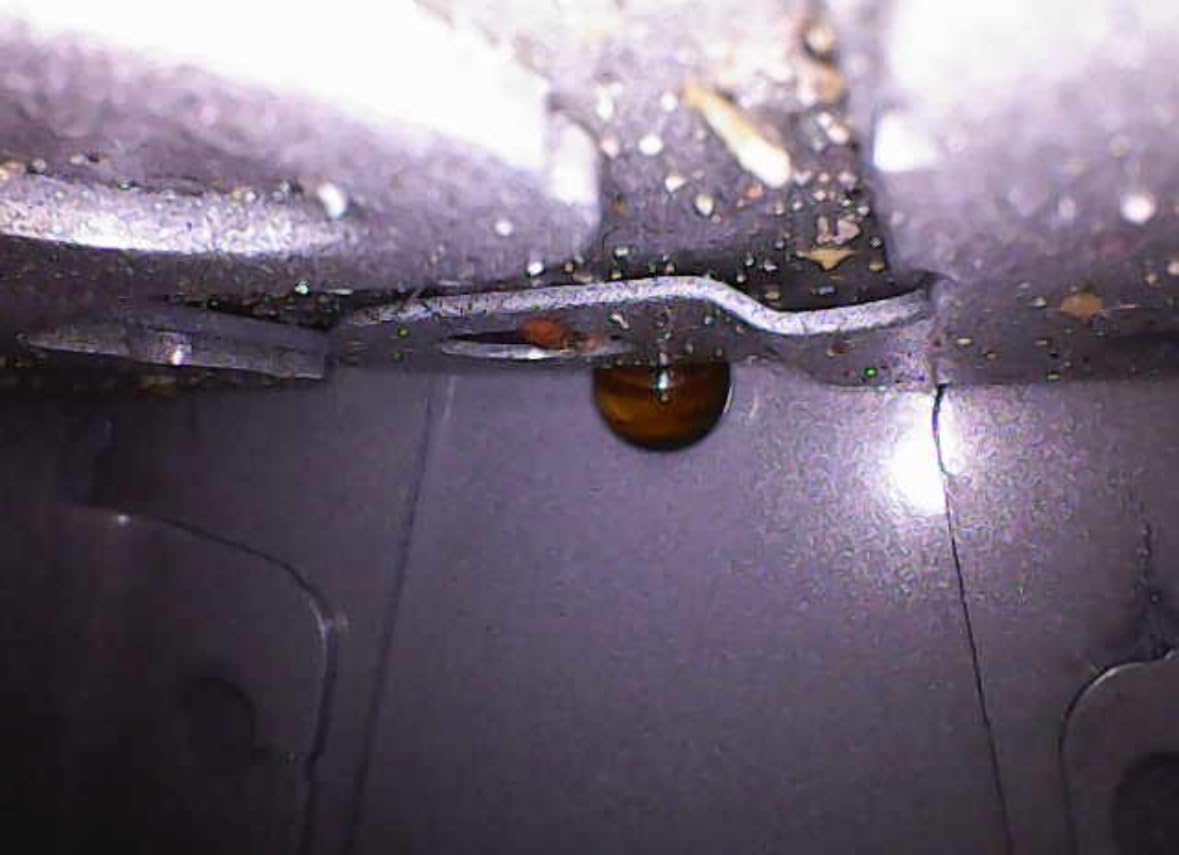

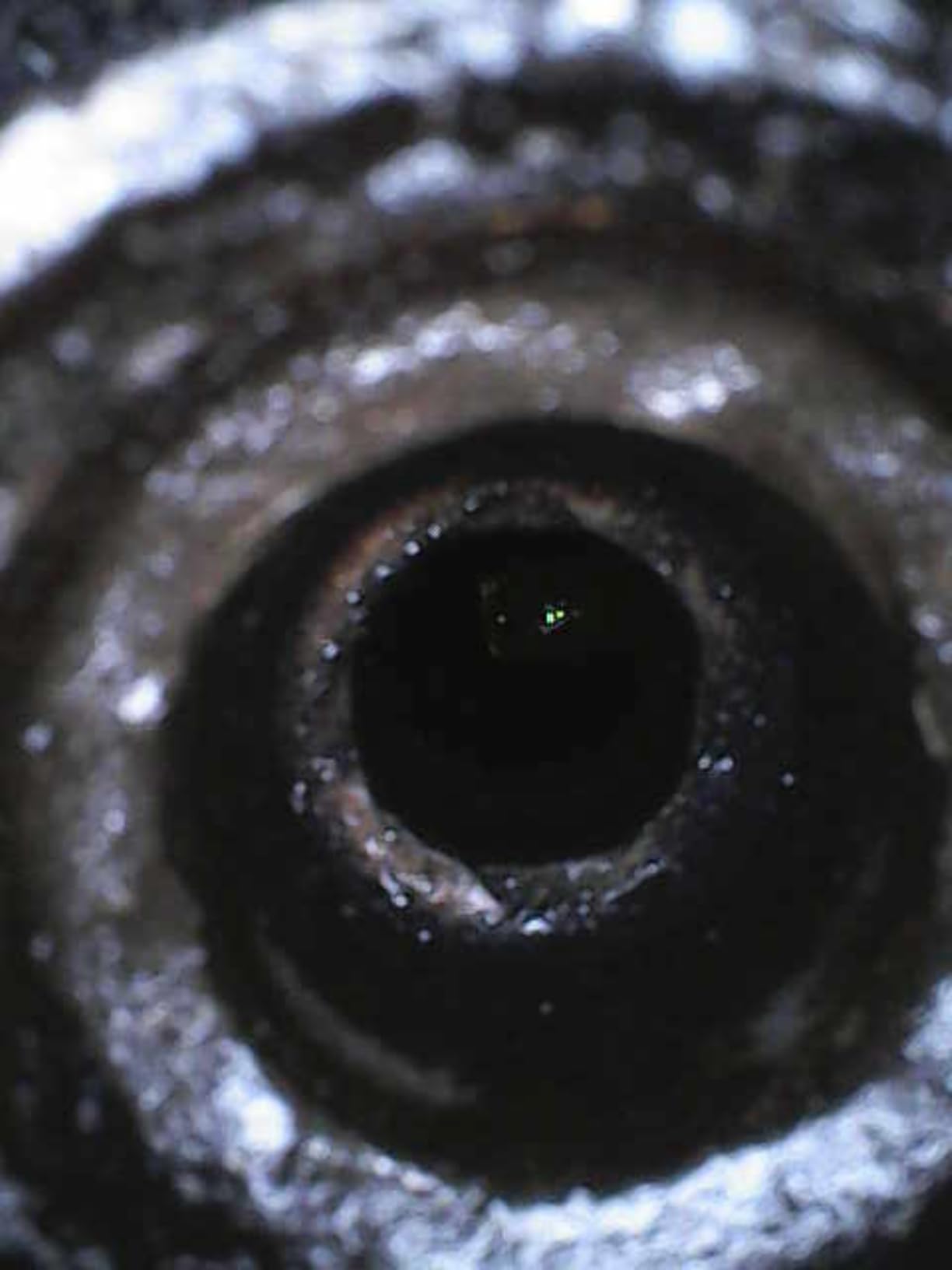

3. MugEasy 4.3-inch IPS Borescope – Best Budget Pick Under $30

The MugEasy surprised me. For under $30, I expected a dim screen and washed-out images, but the 1920P resolution on the 4.3-inch IPS panel is genuinely sharp. When I pushed the 7.9mm probe through a spark plug hole to inspect a piston crown, I could clearly see carbon deposits and scoring on the cylinder wall.

The 8 adjustable LED lights are brighter than I expected at this price point. In a dark crawlspace inspecting a drain connection, I dialed the brightness up and got a clear view of a hair clog wrapped around the trap. The included hook, magnet, and side mirror accessories mean you can retrieve dropped items without buying add-ons.

USB-C charging is a welcome feature that even some pricier models skip. The 16.6FT semi-rigid cable bends and holds its shape for navigation, though it is not articulating, so you are limited to straight pushes with manual bending. The color flip and brightness shift functions help when you are working in awkward positions.

The dealbreaker for some will be the lack of photo or video capture. This is a live-view-only device, which means you cannot document your findings for a client or save an image to show a parts supplier. For pure inspection work, that is fine. For anyone who needs records, look elsewhere.

Ideal Buyer for This Budget Borescope

Occasional DIYers and homeowners who need an inspection camera a few times a year will get more than their money’s worth here. The image quality punches well above the price tag, and the included accessories handle most common retrieval and inspection tasks.

Where It Falls Short

No photo or video capture is the main limitation. The cable is not articulating, so navigating past 90-degree bends in tight plumbing requires patience and manual manipulation. Battery life is not prominently advertised, which is a yellow flag for anyone doing extended inspections.

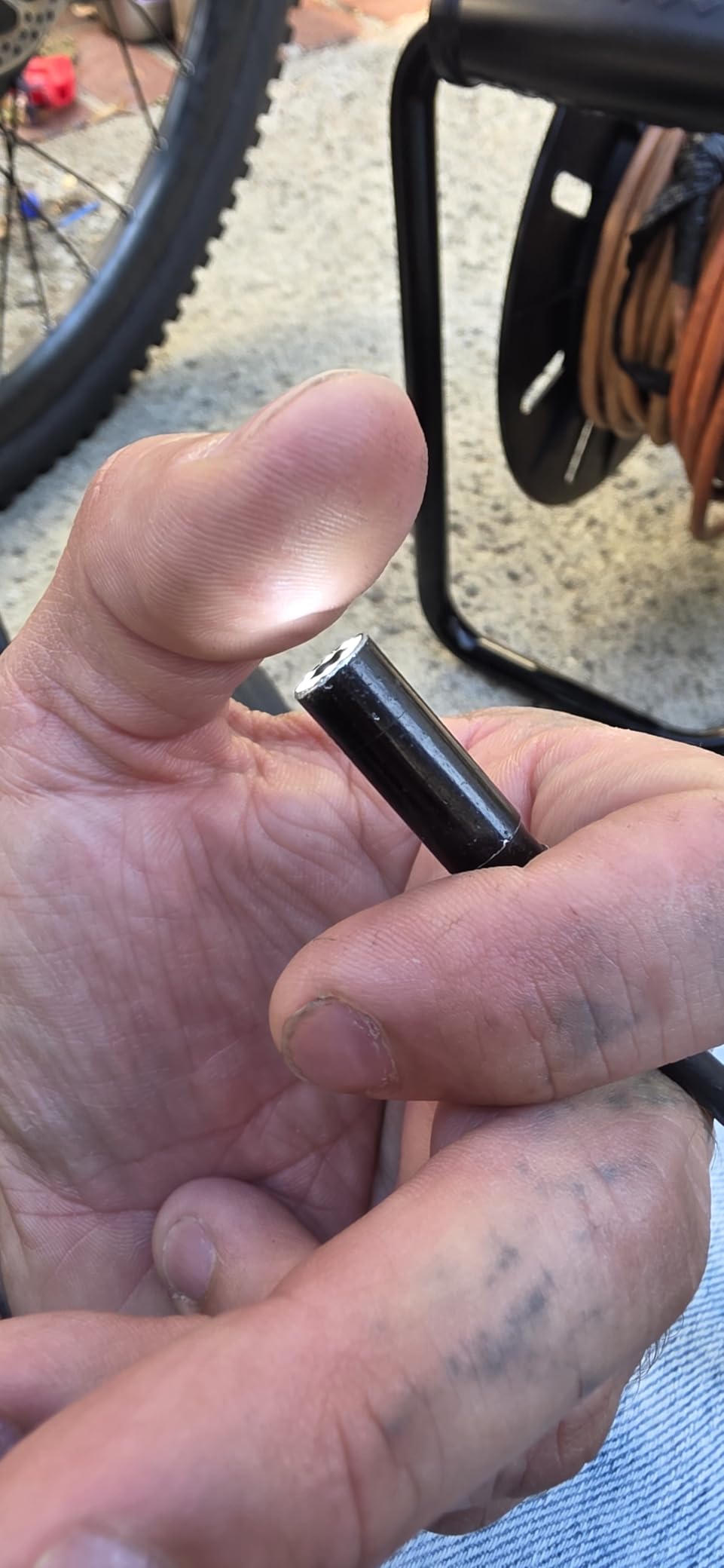

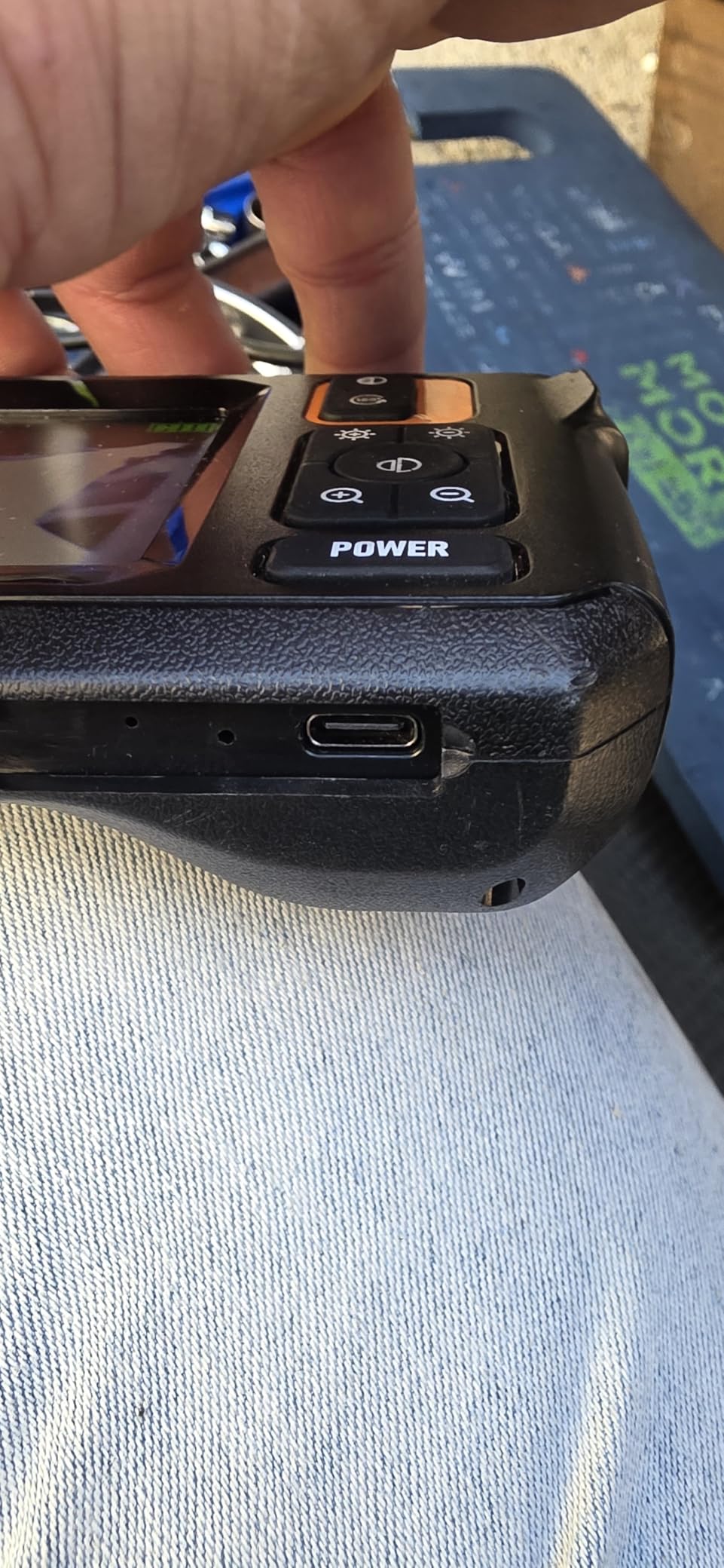

4. Daxiongmao 1080P HD Borescope – Reliable Standalone Performer

The Daxiongmao has racked up over 4,400 reviews, and after testing it I understand why. It is a no-frills standalone borescope that does the basics very well. The 1080P image on the 4.3-inch LCD screen is clear enough to distinguish between a hair clog and a mineral buildup in a drain line.

The 8mm probe is slim enough to thread through a standard spark plug hole, which makes this one of the best borescope inspection cameras for budget-conscious mechanics. The 120-degree viewing angle gives you a decent field of view, and the 8 adjustable LEDs handle dark pipe interiors adequately.

I appreciate the 180-day warranty and the responsive customer service that multiple reviewers have confirmed. When a budget brand stands behind its product with a real warranty, that tells me something about build confidence. The included hook, magnet, and side mirror handle common retrieval tasks.

Like the MugEasy, this is a viewing-only device with no photo or video storage. The cable is stiff, which is good for pushing through straight runs but frustrating when you need to navigate a tight 90-degree turn in undersink plumbing. The LED brightness can also wash out close-up images if you are not careful with the adjustment.

Who This Borescope Suits Best

Homeowners and DIY mechanics who want a dependable standalone camera for occasional automotive and plumbing inspections will find this a solid value. The 8mm probe diameter hits the sweet spot for spark plug hole access.

Things That May Frustrate You

The lack of photo capture rules out documentation use cases. Cable rigidity makes tight plumbing bends difficult, and the lens is prone to scratching if you drag it through dirty or abrasive pipes without care.

5. PAPIBLU Dual Lens Smartphone Borescope – Best for Phone Use

The PAPIBLU takes a different approach by using your phone as the display. The upside is a bigger screen for free, since your phone’s display is likely larger than any built-in screen on a standalone unit. The 1920×1440 resolution looks great on a 6-inch phone screen when inspecting pipe interiors.

The dual-lens design lets you switch between front and side views in the app, which is handy for automotive inspections where you need to look both straight down a cylinder and sideways at the valves. The three included connectors (USB-C, Micro USB, and Lightning) cover essentially every phone made in the last decade.

The catch is the app experience. Connecting requires plugging in the adapter, opening the app, and granting camera permissions. The app itself is basic and occasionally buggy, with some reviewers reporting crashes. Wi-Fi is not required since this is a wired connection, which is actually more reliable than wireless borescopes that drop signal in metal-rich environments.

Durability is my main concern with this model. The 9 percent 1-star rate is higher than competitors, with several reviewers reporting connector failures after 3 to 6 months of use. The company does honor refunds according to multiple reviews, but if you want a tool that lasts years of regular use, a standalone unit is a safer bet.

Best Scenario for This Smartphone Borescope

If you already own a good phone and want a large-screen inspection experience for under $25, this is the cheapest path. It works well for occasional home inspections where you can hold your phone in one hand and the cable in the other.

Risks to Weigh

The durability reports are real. If you plan to use a borescope weekly or in rugged job-site conditions, the connector failure risk makes this a poor choice. The app dependency also means a phone OS update could break compatibility.

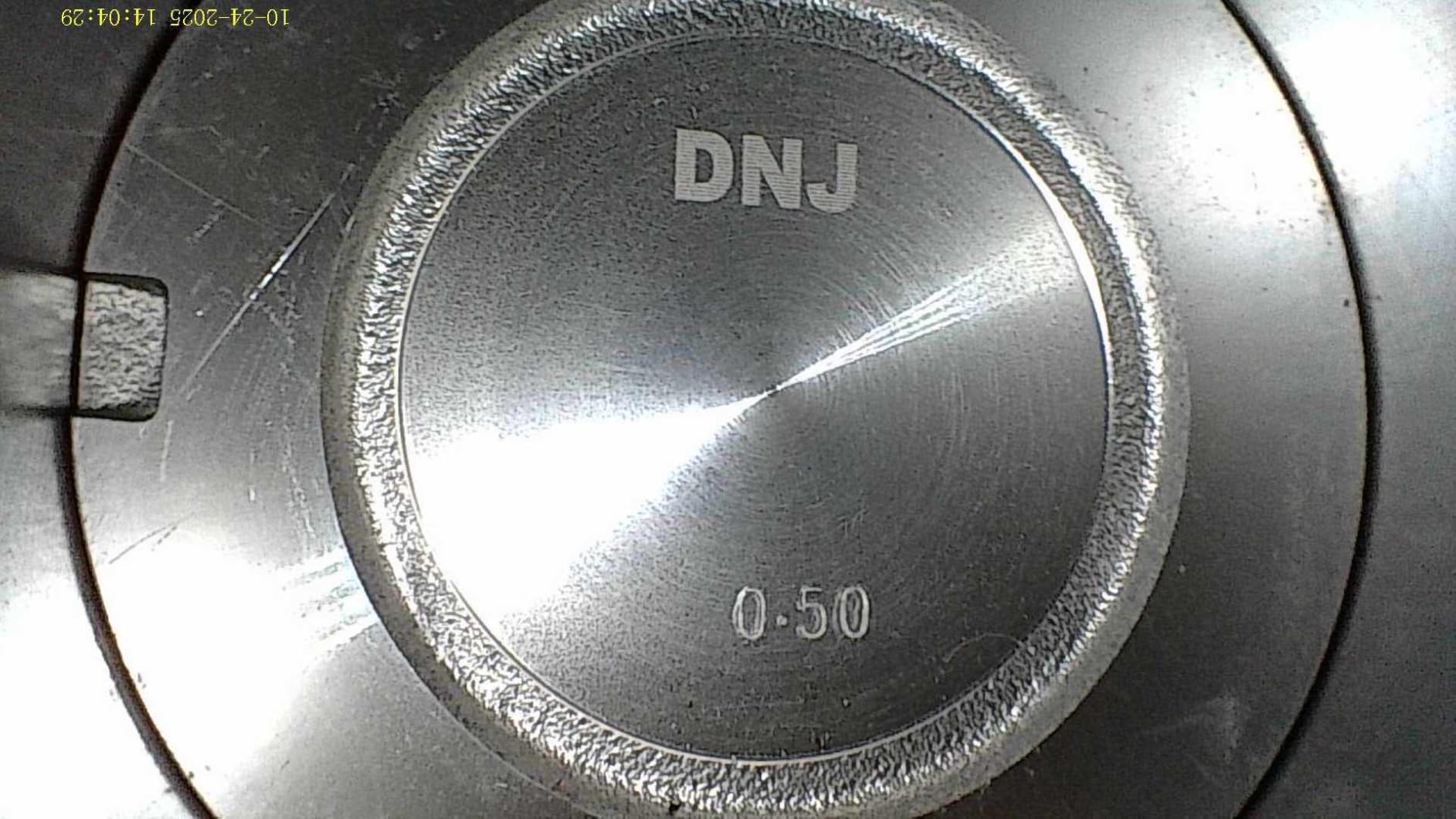

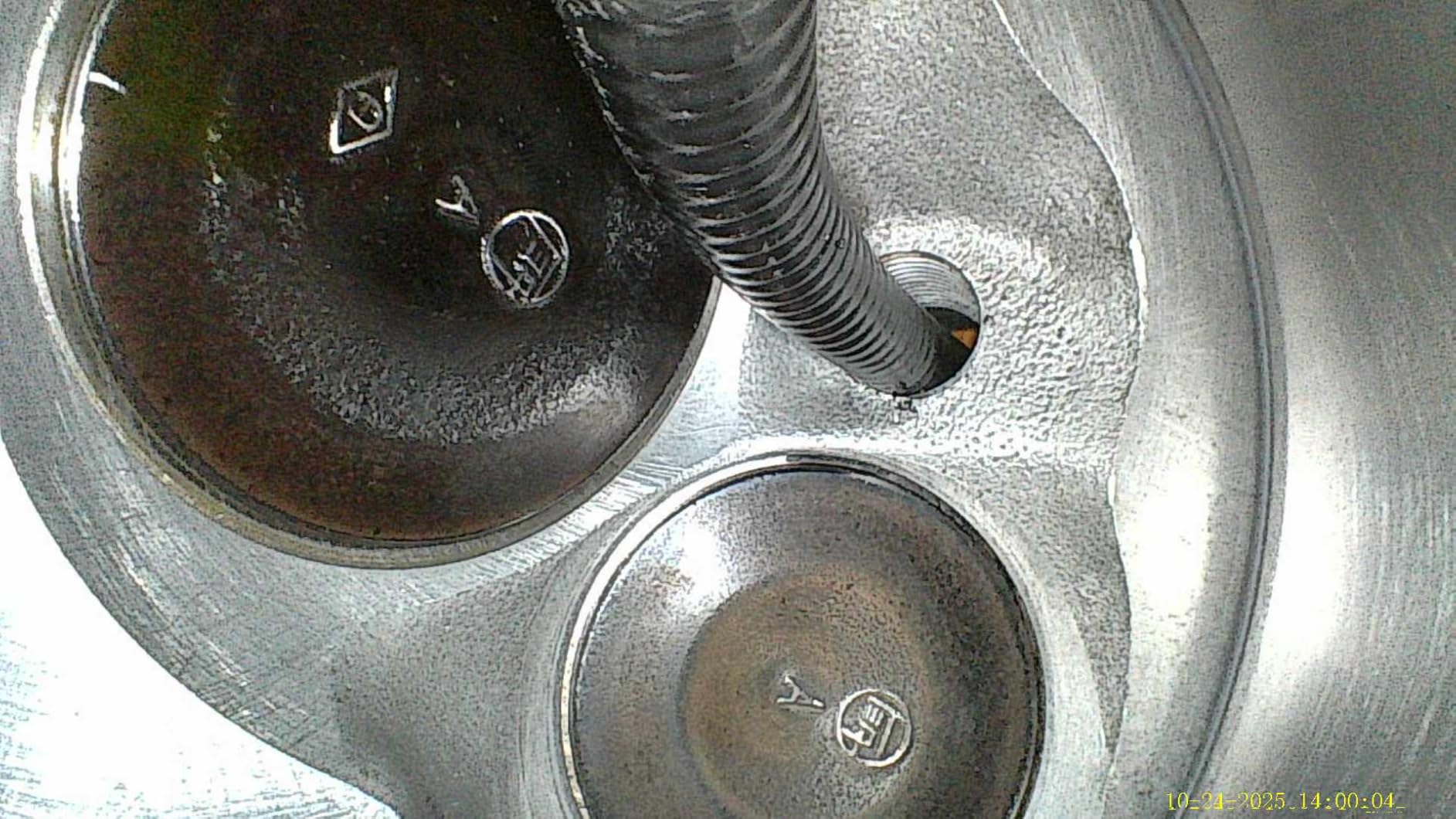

6. Teslong TD450S Two-Way Articulating Borescope – Best Articulating Pick

The Teslong TD450S is the articulating borescope that changed my mind about whether articulation is worth paying for. The centrally located joystick lets you steer the camera tip 210 degrees in two directions with your thumb while holding the unit in one hand. When I threaded it behind a dryer to find a lost vent connection, I steered the camera around a corner without repositioning the cable.

Image quality and color clarity are excellent. The 4.5-inch IPS screen renders accurate colors, which matters when you are trying to distinguish between rust and staining on a metal surface. The built-in microphone records audio with video, so you can narrate your findings as you inspect.

The 5-hour battery life is the best in this article. I used the TD450S for an entire day of inspections across two job sites without needing a charge. The included 32GB Micro SD card and durable carrying case with molded cutouts round out a professional-feeling package.

The cable exits the bottom of the unit, which feels awkward when you are holding it horizontal and pushing the cable into a downward-facing opening. The cable is permanently attached, so you cannot swap lengths or replace a damaged probe without buying a whole new unit. There is also no dual-lens option, which some mechanics prefer for simultaneous front and side viewing.

Who Benefits Most from Articulation

Mechanics inspecting engine internals, HVAC technicians checking duct branches, and anyone working in cavities with bends and obstructions will get the most from articulation. The ability to steer the camera tip saves enormous time compared to blindly pushing a stiff cable.

Trade-offs to Accept

The 5FT cable is shorter than some competitors, limiting deep pipe inspections. The permanently attached cable means a damaged probe requires replacing the entire unit. No dual-lens option limits you to one viewing angle at a time.

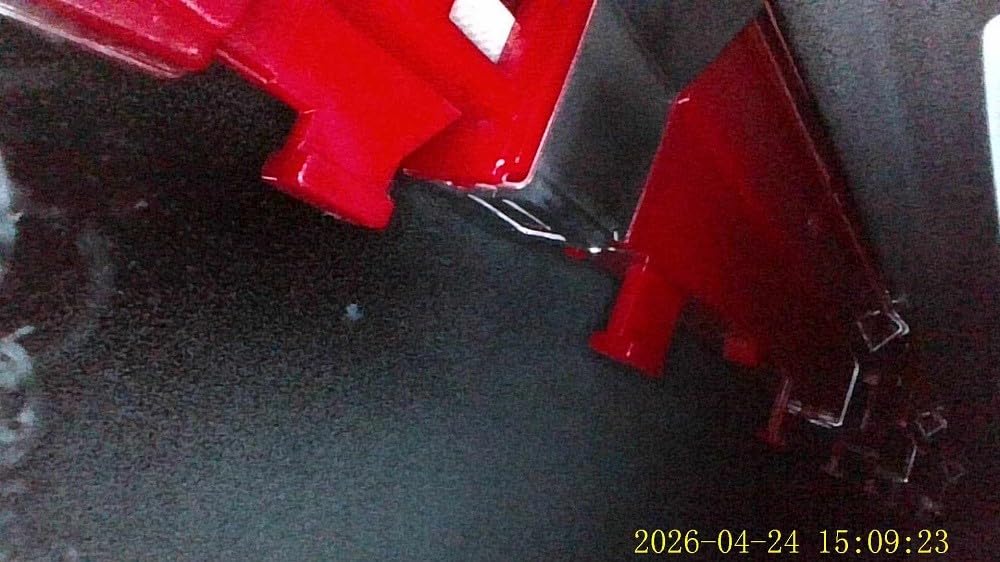

7. DXZtoz Two-Way Articulating Borescope – Best Wide Angle with 8X Zoom

The DXZtoz offers 220 degrees of articulation, which is slightly more than the Teslong TD450S. The control wheel on the side of the unit feels smooth and precise, letting you dial in the exact viewing angle you need. I found this especially useful when inspecting the back side of a wall cavity where I needed to look upward behind electrical boxes.

The 90-degree field of view is wider than most competitors in this price range, which means you see more of the surrounding area without repositioning. Combined with the 8X digital zoom, you can both survey a broad area and then zoom in for detail. When I spotted a suspect pipe joint, zooming in confirmed a hairline crack.

The 8.5mm camera head with the 2.0MP CMOS sensor delivers true 1080P resolution. Colors are accurate, and the 8 LED lights with 4 brightness levels handle everything from bright surface inspections to dark enclosed pipe runs. The IP67 waterproof and oil-resistant probe survived a greasy automotive inspection without issue.

The 5.5FT cable is a bit short for deep plumbing runs, and the cable rigidity can make rotation inside tight cavities difficult. The articulation is two-way (left and right) rather than full 360-degree rotation, which limits viewing angles in some orientations. Instructions for attaching the hook and magnet accessories are minimal.

Best Applications for This Articulating Model

Automotive technicians and handymen who need articulation plus zoom for detailed inspections will appreciate the feature combination. The wide 90-degree field of view is a genuine advantage for surveying large cavities.

Where It Comes Up Short

The 5.5FT cable limits you to shallower inspections than the 10FT or 16FT options on other models. Two-way articulation is not the same as full 360-degree steering, which may matter for complex cavity navigation.

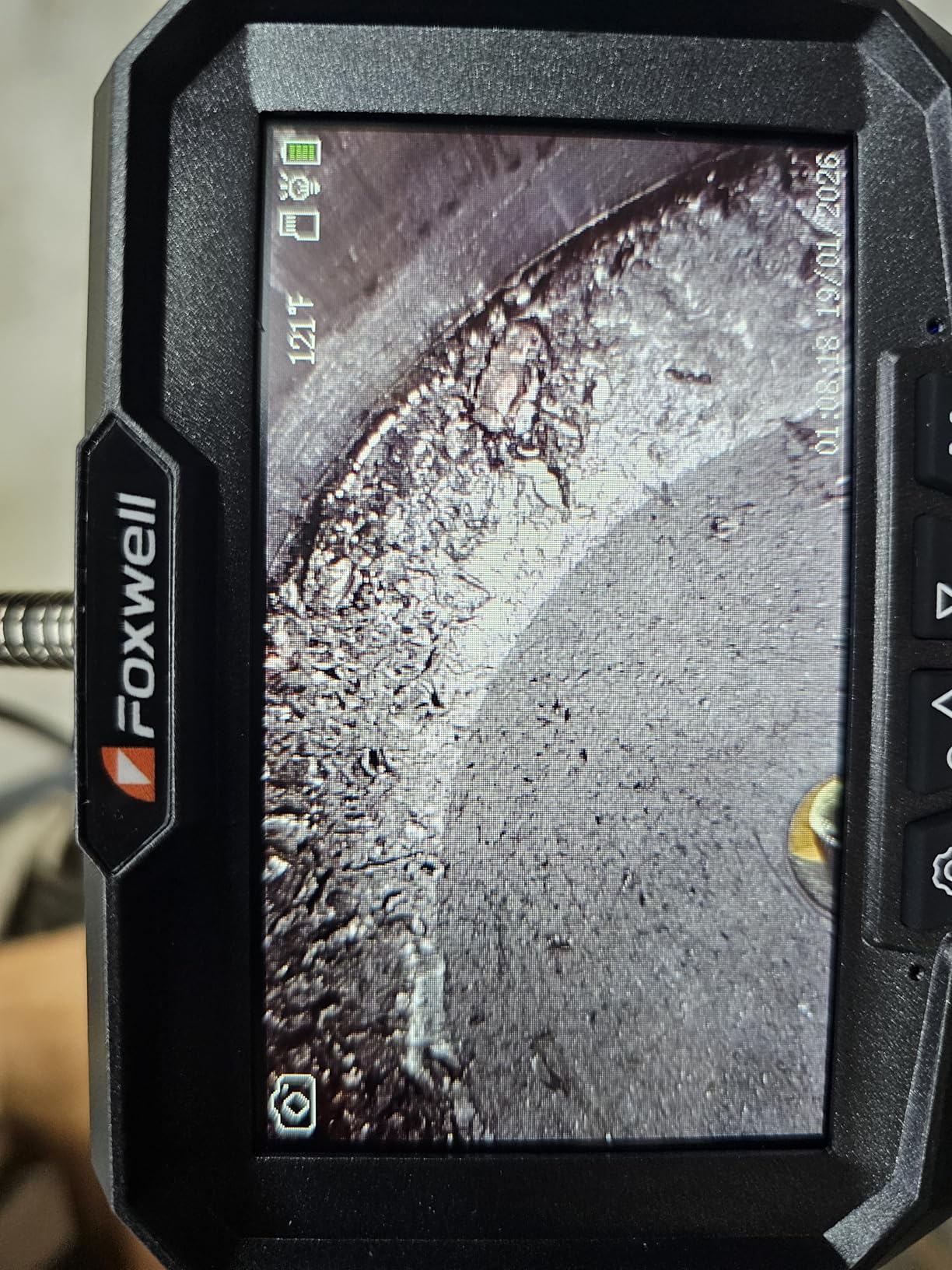

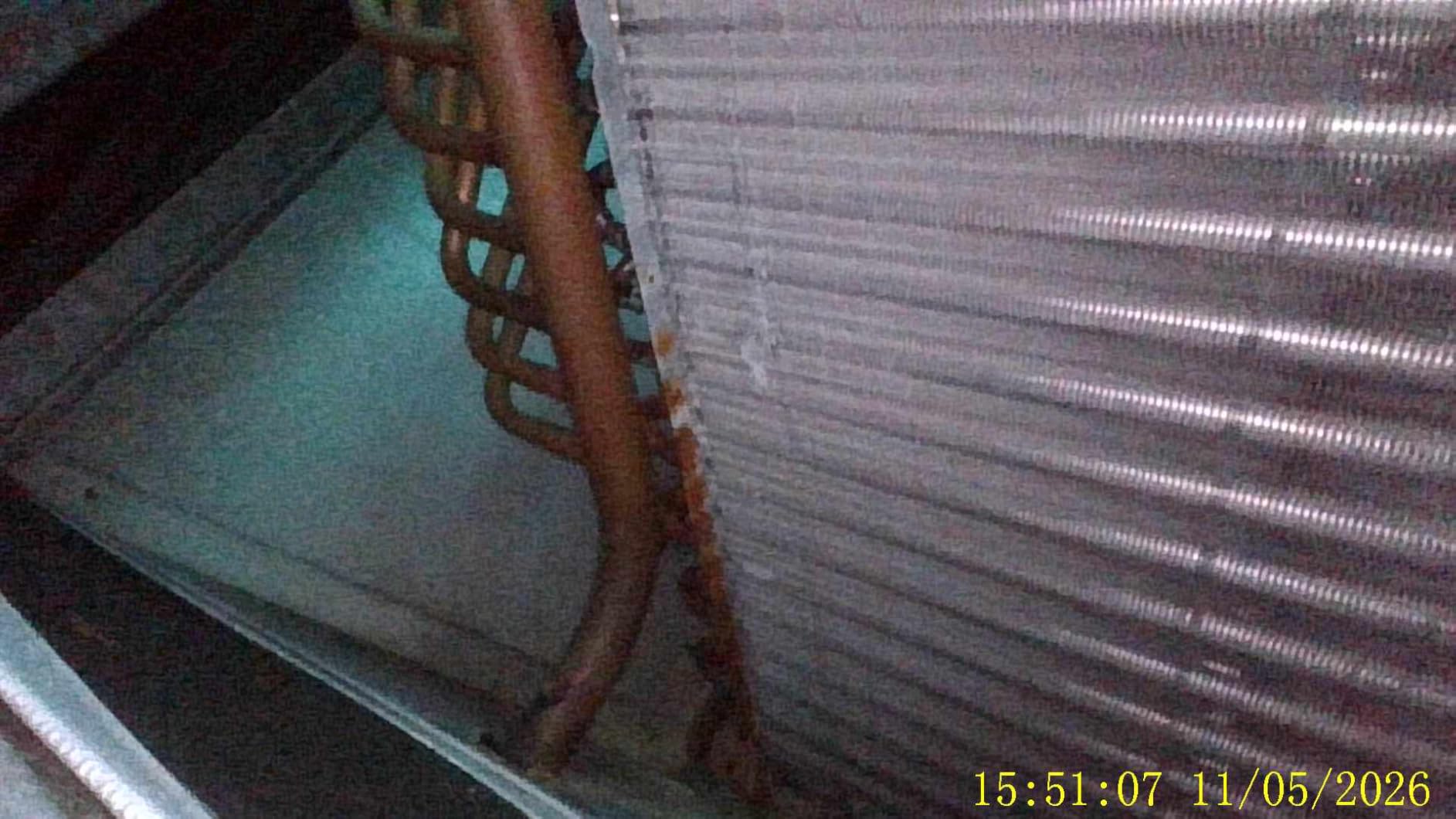

8. FOXWELL Elite Dual Lens Articulating Borescope – Slimmest Probe at 6.5mm

The FOXWELL Elite has the highest rating in this article at 4.8 stars, and the standout feature is that ultra-slim 6.5mm probe. When I needed to inspect a tight spark plug hole that the 8mm probes on other models could not enter cleanly, the FOXWELL slid in without resistance. For mechanics working on modern engines with narrow plug bores, this diameter advantage is significant.

The dual-lens articulating design combines two of the most requested features. You get 220 degrees of articulation plus a split-screen view showing both front and side cameras simultaneously. During a cylinder wall inspection, I could see the wall ahead and the valve area to the side at the same time without switching views.

The smart heat protection system auto-shuts the unit down above 70 degrees Celsius, which protects the electronics during inspections near hot engine components. The user-replaceable 18650 battery means you can carry a spare for all-day use, addressing the battery anxiety that plagues fixed-battery models.

The cable is limited to about 5.3 feet, which rules out deep pipe inspections. No magnetic, hook, or mirror attachments are included, so you will need to buy those separately if you need retrieval capabilities. The microphone picks up squeaking from the articulation knob when recording narrated videos, which is annoying.

Who This Premium Articulating Scope Serves

DIY mechanics working on modern engines with narrow spark plug bores are the primary beneficiaries of the 6.5mm probe. The dual-lens articulation plus heat protection makes this a serious diagnostic tool for automotive work.

What You Give Up

The short 5.3FT cable and lack of retrieval accessories mean you will need to spend more to match the capability of cheaper bundled kits. The articulation knob squeak in audio recordings is a minor but real annoyance for anyone who narrates inspection videos.

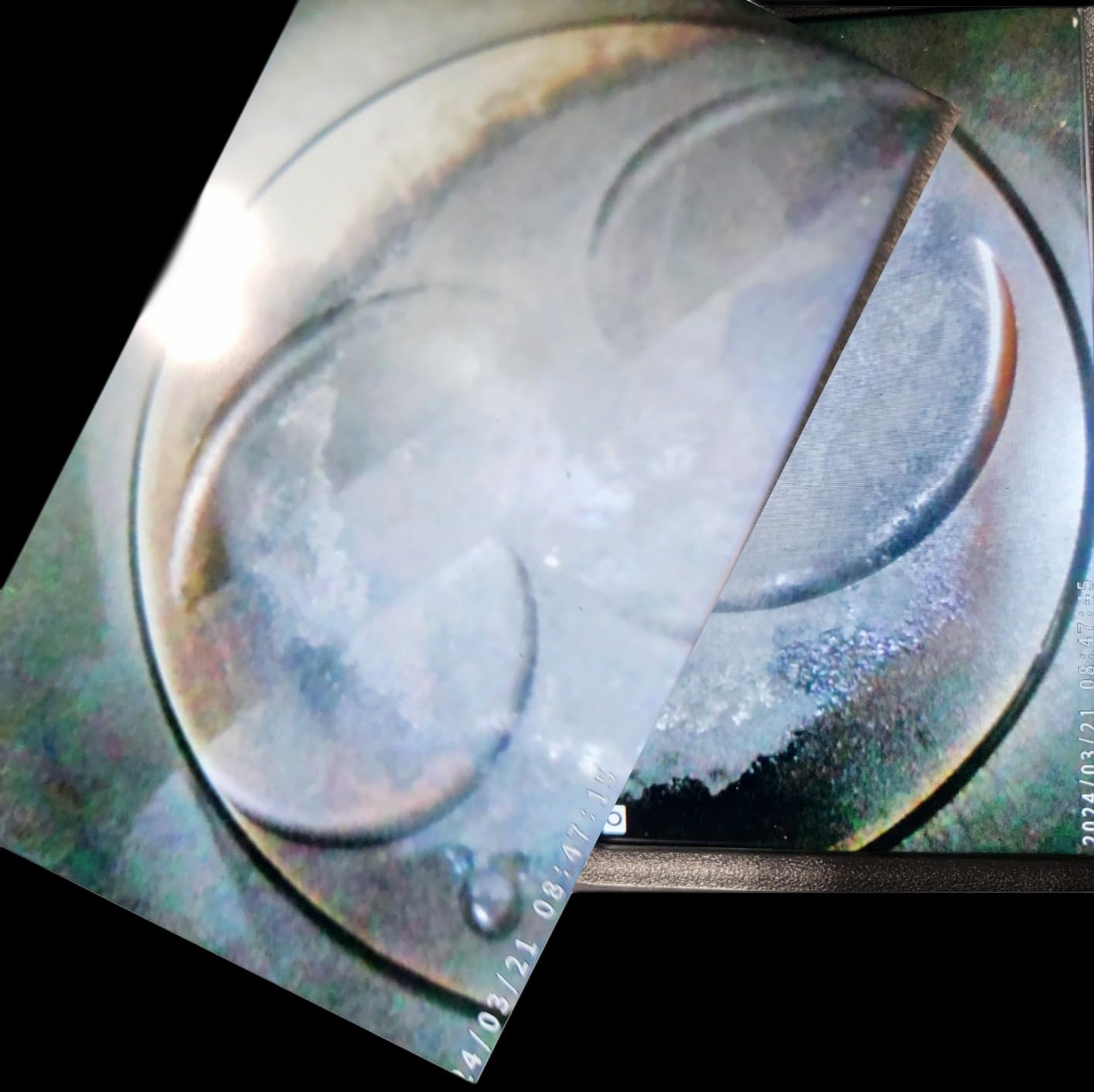

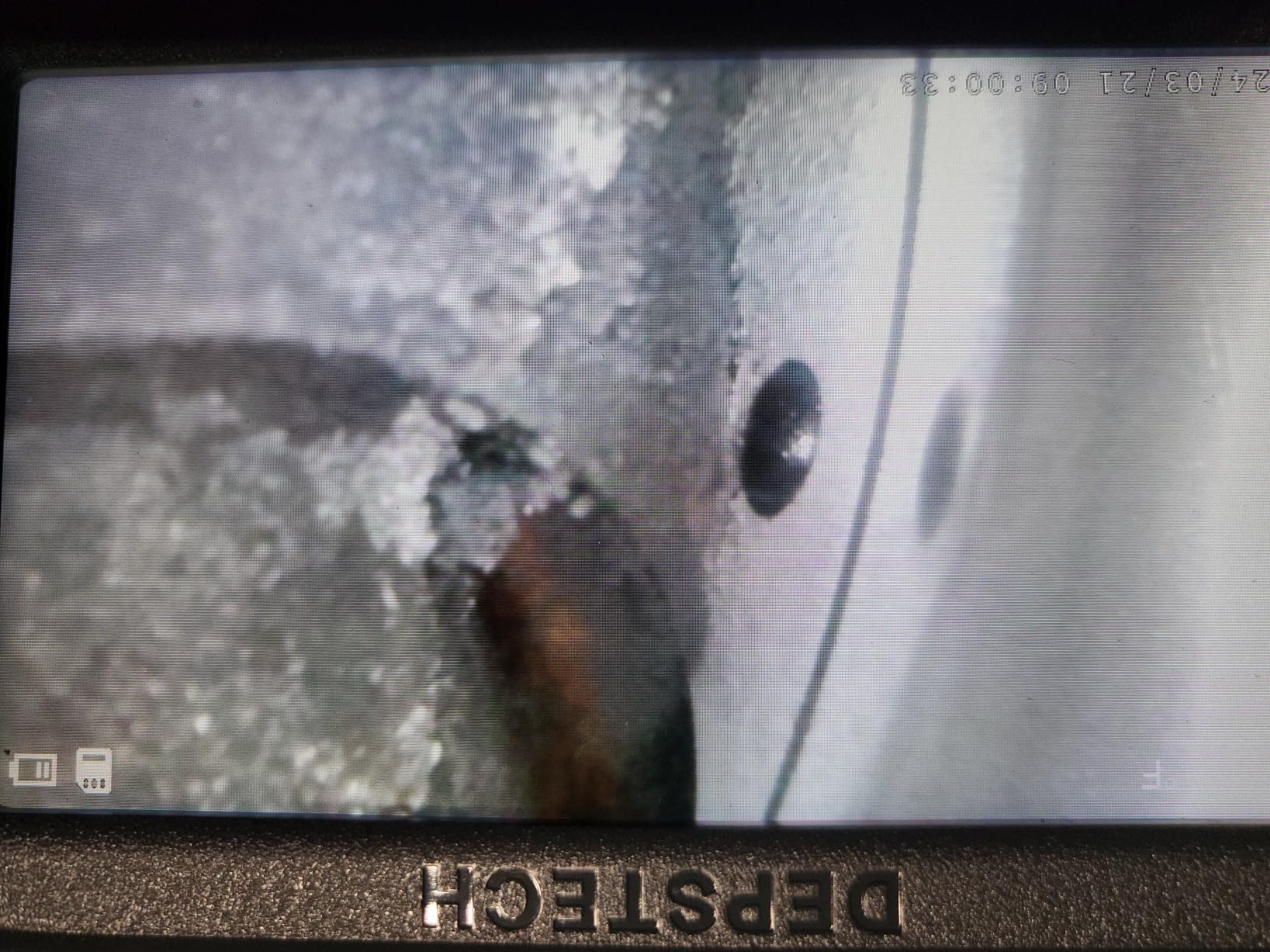

9. DEPSTECH 10FT Articulating Borescope – Longest Cable with Dual-Lens Articulation

The DEPSTECH DS650 combines two features most borescopes force you to choose between: a long 10FT cable and an articulating dual-lens camera. When I needed to inspect a deep main drain line that other borescopes could not reach, the extra cable length got me to the blockage and the articulating tip let me steer around a bend to see the clog clearly.

The Bluart 3.0 imaging technology is DEPSTECH’s latest, and it delivers noticeably crisper 1080P video than the older Bluart 2.0 on the DS300. Colors are more accurate and the image holds together better in low-light conditions at the end of a long pipe run. The high-temperature warning system flashes an alert if the probe approaches dangerous heat.

The 4.5-inch IPS display is sharp and bright enough for most indoor use, though like all LCD screens it washes out in direct sunlight. The ergonomic joystick grip allows one-handed articulation control, and the step-by-step on-device guidance helps beginners get started without reading a manual.

The 8GB built-in storage is smaller than the 32GB cards included with Teslong and other competitors, which limits how many videos and photos you can store before offloading. There is no audio recording capability, which rules out narrated inspection videos. The cable is somewhat stiff for rotation in confined spaces, making precise positioning in tight cavities a challenge.

Best Use Case for the Long Cable

Plumbers and HVAC technicians who need deep pipe and duct access combined with articulation will find the 10FT cable indispensable. The dual-lens articulating system eliminates the trade-off between reach and maneuverability.

Compromises to Note

The 8GB storage fills up faster than the 32GB competitors. No audio recording limits documentation options. The stiff cable can be hard to rotate inside tight metal ductwork where the probe cannot turn freely.

How to Choose the Best Borescope Inspection Camera

Choosing among the best borescope inspection cameras comes down to matching features to your specific trade and use cases. Here is what actually matters based on my testing and the pain points real users report in forums.

Display Type: Built-in Screen vs Smartphone vs Wi-Fi

Built-in screen models (standalone units) are the most reliable. No app crashes, no connectivity drops, and no battery drain on your phone. The trade-off is a smaller screen, typically 4.3 to 5 inches.

Smartphone-connected borescopes give you a bigger display for less money but depend on app stability and wired or wireless connectivity. Wi-Fi models require disconnecting from your home network to connect to the borescope’s hotspot, which frustrates many users. Wired smartphone models avoid the connectivity issue but tether you to your phone.

Camera Diameter Guide: Why Millimeters Matter

Camera head diameter determines what spaces you can access. Here is a quick reference based on my testing and forum recommendations from professional mechanics:

The 5.5mm to 6.5mm range (FOXWELL Elite) fits modern engine spark plug holes and narrow medical-style applications. The 7.9mm to 8.5mm range (MugEasy, Daxiongmao, DXZtoz) is the sweet spot for most automotive and general plumbing work. Anything 10mm or larger will not fit through standard spark plug holes but works fine for drain and wall cavity inspections.

Cable Type and Length

Semi-rigid cables hold their shape when bent, which lets you pre-curve the cable before inserting it. This is what you want for most inspection work. Fully flexible cables are better for long pipe runs where you need the cable to follow the pipe path naturally.

For cable length, match the cable to your deepest expected inspection. A 5FT cable covers most automotive and wall cavity work. A 10FT cable handles deep plumbing runs. The 16.5FT cables on budget models are overkill for most users and become awkward to manage.

Articulating vs Non-Articulating

Articulating borescopes let you steer the camera tip with a joystick or control wheel. This is a significant advantage for automotive engine inspections, HVAC duct branches, and any cavity with bends. Non-articulating models are cheaper but require you to physically rotate the entire cable to change viewing angle.

Forum mechanics consistently say that articulation combined with a side-viewing camera is the combination that makes the biggest practical difference. If your budget allows, an articulating dual-lens model is worth the premium.

Resolution and Image Quality

Most borescopes in this article offer 1080P resolution with 2MP CMOS sensors, which is adequate for inspection work. Higher resolution (1920P or 1920×1440 on the PAPIBLU) gives slightly sharper images but is not a dramatic upgrade. More important than resolution is LED brightness, color accuracy, and the quality of the CMOS chip that processes the image.

The second-generation CMOS chips on DEPSTECH models eliminate the picture delay that plagued older budget borescopes. If you have ever tried to navigate with a half-second image delay, you know how valuable lag-free video is.

Waterproof Rating (IP67 Explained)

Every model in this article carries an IP67 waterproof rating on the probe. IP67 means the probe can be submerged in water up to 1 meter deep for 30 minutes without damage. This is essential for drain and plumbing inspections where the probe will be in wet or submerged conditions.

Note that the IP67 rating applies to the probe only, not the display unit. Never submerge the screen or handle in water.

Power Source and Battery Life

Battery life ranges from 2 hours on the DEPSTECH Triple Lens to 5 hours on the Teslong TD450S. For occasional use, 2 to 3 hours is fine. For professional all-day use, look for 4 hours or more, or choose a model with a user-replaceable battery like the FOXWELL Elite.

USB-C charging is the modern standard and lets you recharge from any USB-C power bank. Micro USB charging (on the DEPSTECH DS300) is outdated and means carrying a separate cable.

Frequently Asked Questions

Final Verdict on the Best Borescope Inspection Cameras

After testing 10 models across automotive, plumbing, and HVAC scenarios, my top recommendation for the best borescope inspection cameras in 2026 is the DEPSTECH Triple Lens 5-inch for its unmatched viewing flexibility and large display. The DEPSTECH Dual Lens 4.3-inch remains the best value pick with split-screen viewing and a 24-month warranty, and the MugEasy wins on pure budget value at under $30.

For mechanics who need articulation, the Teslong TD450S and FOXWELL Elite stand out with motorized camera tip steering that navigates cylinder walls and tight cavities. Plumbers and HVAC technicians working deep in pipes should consider the DEPSTECH 10FT Articulating model for its unmatched cable reach combined with dual-lens articulation.

The right borescope pays for itself the first time it saves you from tearing apart an engine or cutting open a wall to find a problem. Pick the model that matches your trade, and you will wonder how you worked without one.
